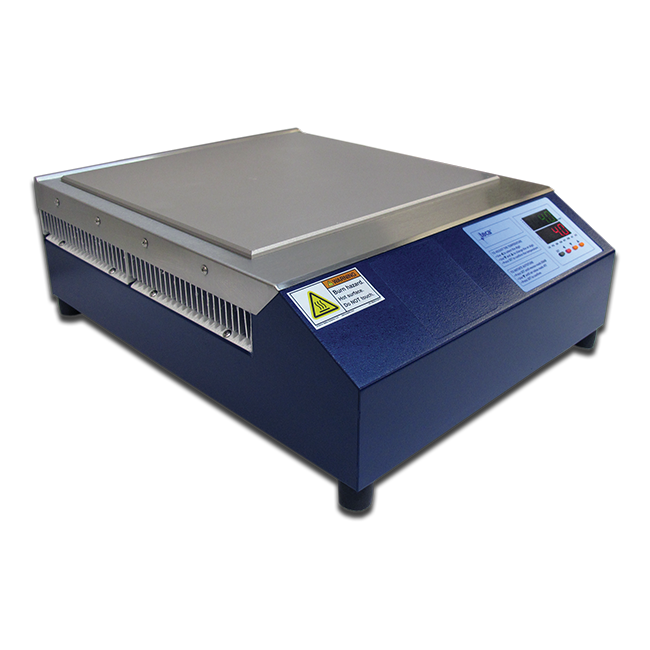

AHP-1800CPV

Air Cooled Thermoelectric Cold Plate For Laboratory

  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC
    Current: 5.0-2.5 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 400 WATTS



    Includes:
    • Integral Power Supply
    • Integral PWM temperature control
    • USB comms ports
    • Remote Sensibility

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • Manually set or autotune to set point for best PID values
    • 4 Programmable temperature zones with 4 independent PID settings
    • Multi-segment ramp/soak programs with loops
    • Internal RTD sensor, built into the cold plate
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB communication with easy to use software
    • Labview VI examples available

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERCOLD PLATE SURFACEVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    COLD PLATE
    TEMP. RANGE °C
    AHP-1800CPV9-04KB-1-0A0
    Smooth surface100-2402.4-1.0-15 / +90
    AHP-1800CPV9-04KB-1-TAP
    6-32 Tap pattern100-2402.4-1.0-15 / +90
    AHP-1800CPV9-04KB-1-MET
    M3 Tap pattern100-2402.4-1.0-15 / +90
    AHP-1800CPV9-04KB-6-0A0
    Smooth surface100-2402.4-1.0-15 / +120
    AHP-1800CPV9-04KB-6-TAP6-32 Tap pattern100-2402.4-1.0-15 / +120
    AHP-1800CPV9-04KB-6-METM3 Tap pattern100-2402.4-1.0-15 / +120
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 1800CPV 8:50 am 09/01/201622.3M

    PDF
    AHP 1800CPV 8:50 am 09/01/20161.1M

    SLDP
    AHP 1800CPV 8:50 am 09/01/20163M

    STEP
    AHP 1800CPV 8:50 am 09/01/201610.6M
  • Part NumberDescriptionFor use with cold plate seriesDrawing/PictureData Sheet
    C-1800Clear Cover
    Material: Clear Acrylic
    Size: 15" X 15" X 5"
    AHP-1800CPV
    AHP-1200DCP
    pdf
    CN-1800Clear Cover
    Material: Clear Acrylic
    Size: 15" X 15" X 5"
    AHP-1800CPV with ACP-1800pdf
    CH-1800Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 16"" X 5"
    AHP-1800CPV
    AHP-1200DCP
    dwgpdf
    CHN-1800Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 16"" X 5"
    AHP-1800CPV with ACP-1800dwgpdf
    BH-1800Barrier
    Material: Clear Acrylic
    Size: 14.2" X 13.7" X H (height)
    Part Number: BH-1800 (H = height in inches 3", 6", 9" standard)
    example B6-1200, B9-1200
    AHP-1800CPVpdf
    Thermocouple-Ring"T" Type thermocouple
    6' long, surface mount
    LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
    RTD-RingThree wire RTD, 100 Ω with connector
    6' long, surface mount
    LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
    RTD-ProbeThree wire RTD, 100 Ω with connector
    6' long, 1/8" DIA probe
    LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP

Features:
• Cools and heats (-20 °C to 90 °C)*
• Precision machined anodized aluminum cold plate surface (~ 1100 cm2 surface area, flat within +/- .005 cm)
• Stainless steel threaded inserts available (standard & custom patterns)
• Easy to clean stainless steel apron
• Integral PWM temperature controller
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs less than 50 lbs. (22.7 kg)
• Operating ambient temperature range of (0 °C to 50 °C)
• Compact bench top unit, 19.2” X 15.2” footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Many accessories available
• Conforms to UL 61010-1 & 61010-2-010
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
