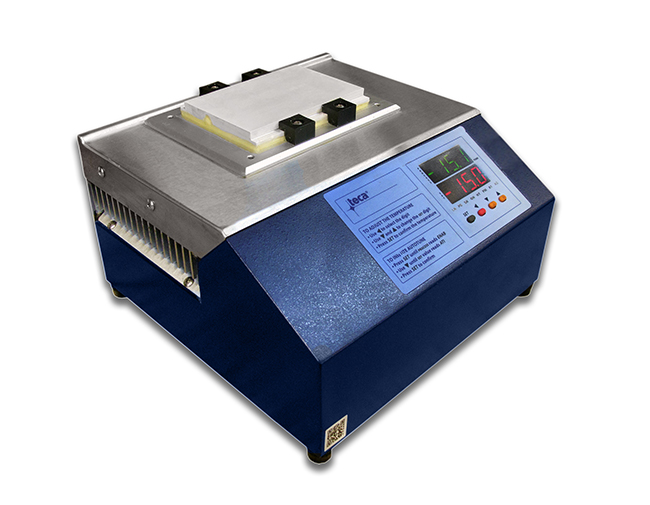

AHP-301CAS - thermoelectric

Air Cooled Laboratory Cold Plate With Low Temperature Cascade:

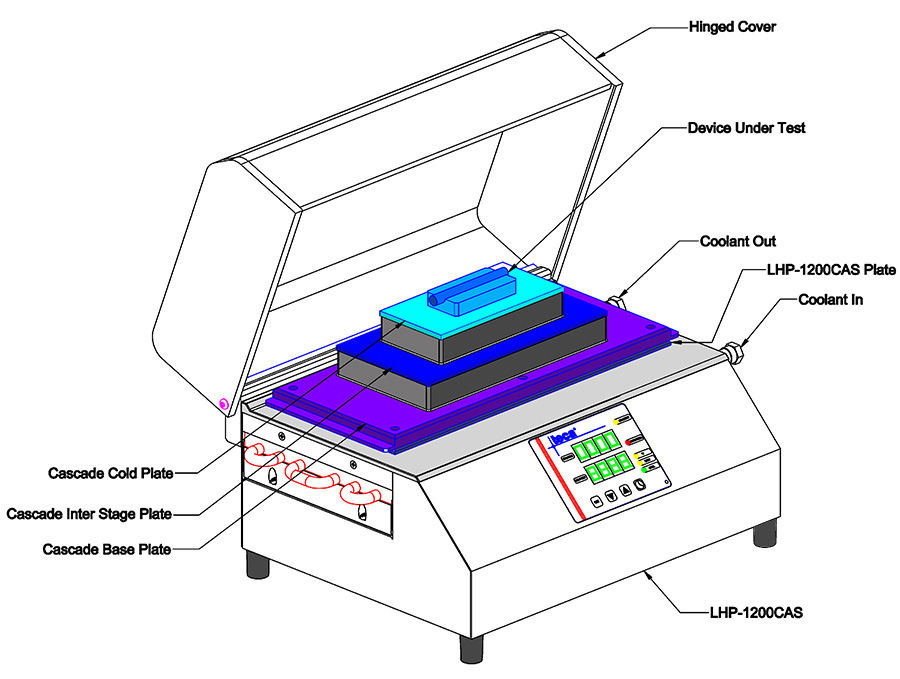

Graphic representation of a cascaded cold plate

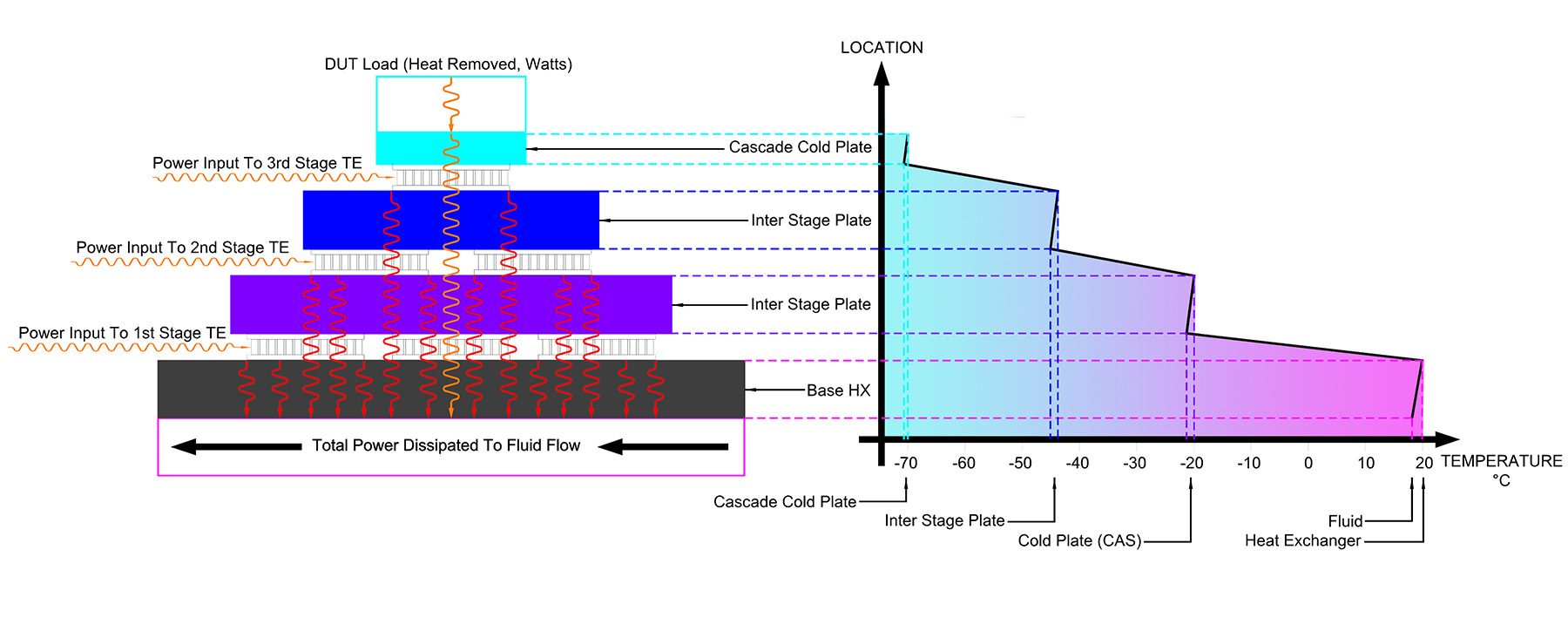

Graphics description of cascade function Graphics description of cascade function

Style: Bench Top, Laboratory
Voltage: 100-240 VAC
Current: 2.4-1.1 AMPS
Operating Ambient: 0/+50 °C

Ahp 301cas Data Sheet (1.9M)

Maximum delta T (load=0 watts) :
AHP-301C12: -60 °C

Includes:
• Integral Power Supply
• Integral PWM Temperature control
• USB comms port
• Remote Sensibility
• Hinged cover

Controller Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Temperature zone with 4 independent PID settings
• Multi-segment ramp and soak programmable
• Internal RTD sensor
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB Communication with easy to use software
• Labview VI examples

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	COLD PLATE SURFACE	VOLTAGE VAC (VDC)	CURRENT AMPS	COLD PLATE TEMP. RANGE °C
AHP-301C12	9-70KB-1-C12 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Smooth surface	100-240	2.5-1.1	-30 / +90
AHP-301C12	9-70KB-6-C12 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Smooth surface	100-240	2.5-1.1	-30/ +120

Click to open PDF performance curves:

AHP 301C12 Curve (126.2k)
AHP 301C12covered 90C to 30C Response (57.5k)

Click to open files:

Ahp 301c12 Dimensions (287.4k)

Ahp 301cas Data Sheet (1.9M)
Click to download:

Solid Model files:

Product Manuals, Software:

DOC CPV (105.8k)
Manual CCP Cascades V 1-2 (551.2k)
Manual CPV 2nd GEN VO 3 0 (28.3M)
Manual TecaLOG Version 1-1D (668.3k)
Read This First (1k)
TecaLOG Software (34.6M)

Part Number	Description	Drawing/Picture	Data Sheet
ACP-301	Accessory Plate Material: Clear anodized aluminum Size: 6.2" X 4.7" Surface
GP-301	Pyrex Plate Material: Clear Borosilicate Size: 6.00" X 4.50" X 0.125"
C-301	Clear Cover Material: Clear Acrylic Size: 10" X 6.50" X 4"
CN-301	Clear Cover Material: Clear Acrylic Size: 10" X 6.50" X 4"
CH-301	Clear Cover With Hinge Material: Clear Acrylic Size: 11" X 7.4" X 4"
CHN-301	Clear Cover With Hinge Material: Clear Acrylic Size: 11" X 7.4" X 4"
BH-301	Barrier Material: Clear Acrylic Size: 6.8" X 5.3" X H (height) Part Number: BH-301 (H = height in inches 3", 6", 9" standard) example B6-1200, B9-1200

Features:
• Precision machined anodized aluminum cold plate surface
• Stainless Steel threaded inserts
• Easy clean stainless steel apron
• Cools down to -35 °C
• Heats up to 120 °C
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs less than 14 lbs. (6.4 kg)
• Operating ambient range 0 °C to 50 °C
• Compact bench top unit, 10” X 10” footprint
• Hinged clear acrylic cover
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Provides power and control to cascades
• Conforms to UL 61010-1 & 61010-2-010
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
