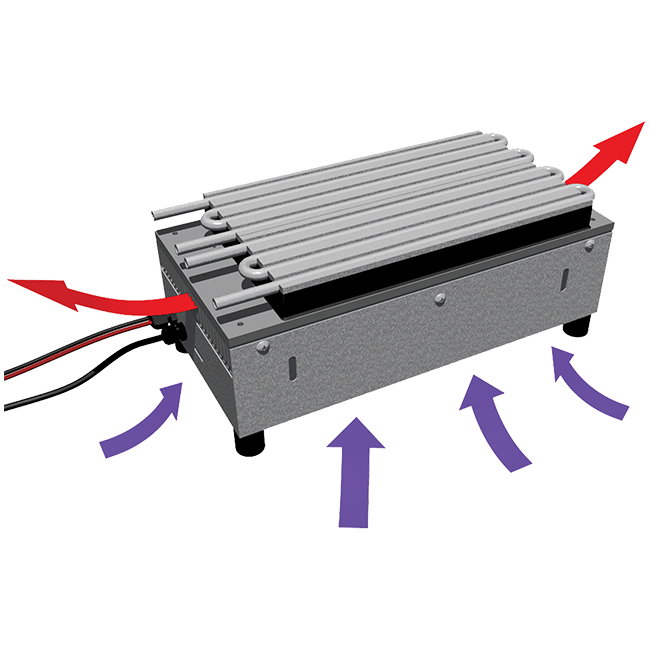

TLC-1200

Air Cooled Thermoelectric Liquid Chiller

  • Style: General purpose OEM liquid chiller
    Voltage: 24 VDC
    Current: 9 AMPS, 16 AMPS (high capacity)
    Operating Ambient: -10/+50 °C

    Performance Rating:
    Cooling Capacity: 162 WATTS (standard capacity)
    Cooling Capacity: 190 WATTS (high capacity)

    Includes:
    • Internal H-Bridge for reverse polarity operation on heat/cool versions
    • Rubber feet
    • Power input leads


  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTETEMPERATURE CONTROLFLUID TEMPERATURE
    RANGE °C
    TLC-12006-3095-0-000
    Cool onlyNone-5 / +65
    TLC-12006-3055-0-000
    cool only5-32 VDC external signal-5 / +65
    TLC-1200HC6-3055-1-000
    Heat/Cool5-32 VDC external signal-5 / +65
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Tlc 1200 10:12 am 09/01/201612M

    SLDP
    Tlc 1200 10:13 am 09/01/20161.3M

    STEP
    Tlc 1200 10:13 am 09/01/20164.4M

    dwg
    Tlc 1200 10:12 am 09/01/2016961.1k

    pdf
    Tlc 1200 10:13 am 09/01/20161.3M
  • Part NumberDescriptionDrawingData Sheet
    LCP-22Liquid cooled cascade
    plate surface: 8.8 x 4.5
    delta T: -58 C
    dwgpdf
    LCP-21Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -68 C
    dwgpdf
    LCP-31Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -76 C
    dwgpdf
    LCP-10-06Liquid cooled plate
    size: 6" x 5"
    dwgpdf
    LCP-10-12Liquid cooled plate
    size: 12" x 5"
    dwgpdf
    FC10-01Fan coil, heat exchanger
    single fan
    dwgpdf
    FC20-01Fan coil, heat exchanger
    dual fan
    dwgpdf
    QCM-F3/8NPTFitting: male quick connect x female 3/8 NPTpdf
    QCM-F1/4NPTFitting: male quick connect x female 1/4 NPTpdf
    QCM-M1/2NPTFitting: male quick connect x male 1/2 NPTpdf
    QCM-M3/8NPTFitting: male quick connect x male 3/8 NPTpdf
    QCM-3/8BFitting: Male quick connect x 3/8 barb
    pdf
    QCM-1/4BFitting: Male quick connect x 1/4 barbpdf
    QCM-3/16BFitting: Male quick connect x 3/16 barbpdf
    QCM-3/8BEFitting: Male quick connect x 3/8 barb elbowpdf
    QCHM-M1/2NPTFitting: High temperature male quick connect x 1/2 MNPT
    pdf
    QCHM-3/8BFitting: High temperature male quick connect x 3/8 barbpdf
    QCHM-1/2BFitting: High temperature male quick connect x 1/2 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    FBL-100Low profile filter body and bowlpdf
    FML-20Filter screen, 20 Mesh (915 Micron)pdf
    FML-40Filter screen, 40 Mesh (480 Micron)pdf
    FML-80Filter screen, 80 Mesh (178 Micron)pdf
    FML-100Filter screen, 100 Mesh (80 Micron)pdf
    FML-250Filter screen, 250 Mesh (40 Micron)pdf
    RTD-RINGThree wire RTD, 100 Ω with connector
    6' long, surface mount
    pdf
    RTD-PROBEThree wire RTD, 100 Ω with connector
    6' long, 1/8" DIA probe
    pdf
    HOSE-01Standard hose, 3/8" IDpdf
    HOSE-02High temperature hose, 3/8" IDpdf
    INS-01Single hose insulation, 5/8" ID 6' longpdf

Features:
• Two separate fluid cooling circuits
• Weighs only 20 lbs. (9.1 kg)
• Mount through bench top or enlcosure wall
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Mounts in any orientation
• 3/8” OD Stainless steel tubing
