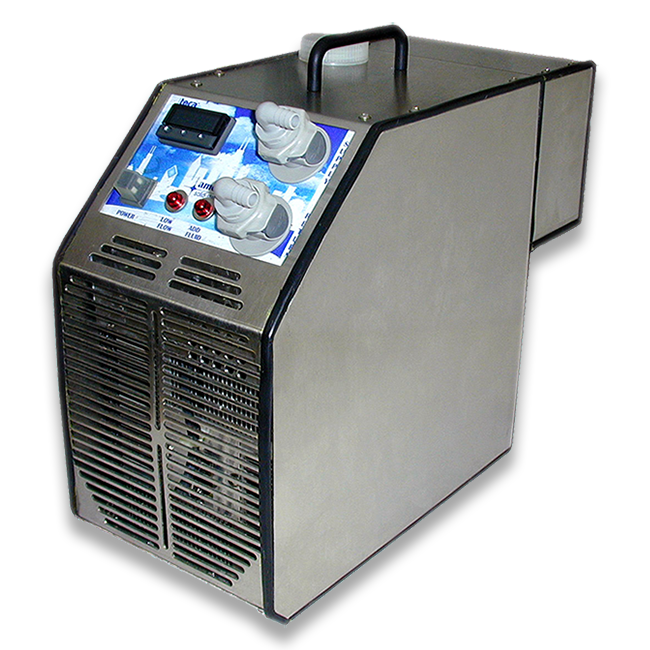

TLC-700

Air Cooled Thermoelectric Liquid Chiller

  •

    Style: Bench top recirculating liquid chiller
    Voltage: 120 VAC, 240 VAC (for detail see data sheet)
    Current: 4.2 AMPS, 2.9 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 215 WATTS

    Includes:
    • Integral power supply and temperature control
    • 3/8” ID Hose (12’)
    • Hose insulation (12’)
    • 3/8” CPC low pressure drop shut off fittings

    Options:
    • RS-232 Communications
    • Communication software
    • Exterior paint color

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTEVOLTAGE
    VAC
    CURRENT
    AMPS
    OPERATING AMBIENT
    MAX °C
    FLUID TEMPERATURE
    RANGE °C
    TLC-7006-A0D0-0-000
    Cool only1204.250-5 / +65
    TLC-700HC6-A0D0-1-000
    Heat/Cool1204.250-5 / +65
    TLC-7026-A0D2-0-000
    Cool only2402.950-5 / +65
    TLC-702HC6-A0D2-1-000
    Heat/Cool2402.950-5 / +65
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    TLC 700 10:17 am 09/01/201617M

    SLDP
    TLC 700 10:17 am 09/01/20162.2M

    STEP
    TLC 700 10:18 am 09/01/20167.3M

    IGS
    TLC 702 10:19 am 09/01/201621.9M

    SLDP
    TLC 702 10:19 am 09/01/20163M

    STEP
    TLC 702 10:19 am 09/01/20169.5M

    dwg
    Tlc 700 10:16 am 09/01/20161.4M

    pdf
    Tlc 700 10:17 am 09/01/20162.9M

    dwg
    Tlc 702 10:18 am 09/01/20161.7M

    pdf
    Tlc 702 10:19 am 09/01/20163.8M
  • Part NumberDescriptionDrawingData Sheet
    LCP-22Liquid cooled cascade
    plate surface: 8.8 x 4.5
    delta T: -58 C
    dwgpdf
    LCP-21Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -68 C
    dwgpdf
    LCP-31Liquid cooled cascade
    plate surface: 6.0 x 3.0
    delta T: -76 C
    dwgpdf
    LCP-10-06Liquid cooled plate
    size: 6" x 5"
    dwgpdf
    LCP-10-12Liquid cooled plate
    size: 12" x 5"
    dwgpdf
    FC10-01Fan coil, heat exchanger
    single fan
    dwgpdf
    FC20-01Fan coil, heat exchanger
    dual fan
    dwgpdf
    QCM-F3/8NPTFitting: male quick connect x female 3/8 NPTpdf
    QCM-F1/4NPTFitting: male quick connect x female 1/4 NPTpdf
    QCM-M1/2NPTFitting: male quick connect x male 1/2 NPTpdf
    QCM-M3/8NPTFitting: male quick connect x male 3/8 NPTpdf
    QCM-3/8BFitting: Male quick connect x 3/8 barb
    pdf
    QCM-1/4BFitting: Male quick connect x 1/4 barbpdf
    QCM-3/16BFitting: Male quick connect x 3/16 barbpdf
    QCM-3/8BEFitting: Male quick connect x 3/8 barb elbowpdf
    QCHM-M1/2NPTFitting: High temperature male quick connect x 1/2 MNPT
    pdf
    QCHM-3/8BFitting: High temperature male quick connect x 3/8 barbpdf
    QCHM-1/2BFitting: High temperature male quick connect x 1/2 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    QCHM3/4BFitting: High temperature male quick connect x 3/4 barbpdf
    FBL-100Low profile filter body and bowlpdf
    FML-20Filter screen, 20 Mesh (915 Micron)pdf
    FML-40Filter screen, 40 Mesh (480 Micron)pdf
    FML-80Filter screen, 80 Mesh (178 Micron)pdf
    FML-100Filter screen, 100 Mesh (80 Micron)pdf
    FML-250Filter screen, 250 Mesh (40 Micron)pdf
    RTD-RINGThree wire RTD, 100 Ω with connector
    6' long, surface mount
    pdf
    RTD-PROBEThree wire RTD, 100 Ω with connector
    6' long, 1/8" DIA probe
    pdf
    HOSE-01Standard hose, 3/8" IDpdf
    HOSE-02High temperature hose, 3/8" IDpdf
    INS-01Single hose insulation, 5/8" ID 6' longpdf

Features:
• Compact (only 15.5″ X 7.6″ bench top footprint)
• Easy prime pump design
• Integral PID “tunable” temperature control
• No compressor, fluorocarbons or filters
• Un-cooled, 500mL reservoir
• Front to back air-flow system
• Stainless steel exterior housing
• Ergonomic sloping front design
• Low fluid level and low flow warning
• Integral power supply
• Self priming pump/reservoir
• Cool and Heat/Cool versions
