IHP-590 Series

Compact Internal Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  92 Watts (315 BTU/HR):

TECA’s IHP-590 Series air conditioner cools electrical cabinets and enclosures, protecting heat sensitive equipment from overheating. Utilizing reliable thermoelectric cooling technology, IHP-590 air conditioners are suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as kiosk, communications, surveillance, food and beverage, transit, military and more. Internally mounted design offers closed loop cooling without cooling equipment extruding into the ambient. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.


  • Mounting Style: Internal Mounted

    Voltage: 24 VDC
    Current: 6.9 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

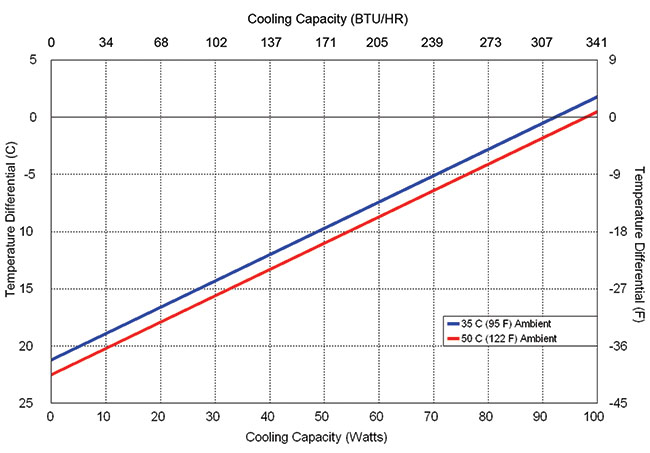

    Performance Rating:
    Cooling (Traditional):
    315 BTU/HR
    Cooling (Din 3168): 92 WATTS
    Cooling COP (at L35 L35): 0.56
    Heating (Traditional): > 562 BTU/HR
    Heating (Din 3168): > 165 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESINSTALLATION STYLECONTROLLERENVIRONMENT
    IHP-590B-G0J5-0-001
    Cool onlyATC-4FIndoors
    IHP-590B-G0J5-0-101
    Cool onlyBTC-4FIndoors
    IHP-590HCB-G095-1-001
    Heat/CoolANoneIndoors
    IHP-590HCB-G095-1-101
    Heat/CoolBNoneIndoors
    IHP-590HCB-G0I5-1-001
    Heat/CoolATC-7FIndoors
    IHP-590HCB-G0I5-1-101
    Heat/CoolBTC-7FIndoors
    IHP-590XEB-G0J5-4-001
    Cool onlyATC-4FOutdoors
    IHP-590XEB-G0J5-4-101
    Cool onlyBTC-4FOutdoors
    IHP-590XEHCB-G095-5-001
    Heat/CoolANoneOutdoors
    IHP-590XEHCB-G095-5-101
    Heat/CoolBNoneOutdoors
    IHP-590XEHCB-G0I5-5-001
    Heat/CoolATC-7FOutdoors
    IHP-590XEHCB-G0I5-5-101
    Heat/CoolBTC-7FOutdoors
    IHP-590XB-G0J5-2-001
    Cool onlyATC-4FOutdoors/Military
    IHP-590XB-G0J5-2-101
    Cool onlyBTC-4FOutdoors/Military
    IHP-590XHCB-G095-3-001
    Heat/CoolANoneOutdoors/Military
    IHP-590XHCB-G095-3-101
    Heat/CoolBNoneOutdoors/Military
    IHP-590XHCB-B0I5-3-001
    Heat/CoolATC-7FOutdoors/Military
    IHP-590XHCB-G0I5-3-101
    Heat/CoolBTC-7FOutdoors/Military
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    IHP 400-500 Style A 9:30 am 09/01/201652.6M

    PDF
    IHP 400-500 Style A 9:30 am 09/01/20163.4M

    SLDP
    IHP 400-500 Style A 9:30 am 09/01/20168.5M

    STEP
    IHP 400-500 Style A 9:30 am 09/01/201625.6M

    IGS
    IHP 400-500 Style B 9:31 am 09/01/201614.6M

    PDF
    IHP 400-500 Style B 9:31 am 09/01/20161.2M

    SLDP
    IHP 400-500 Style B 9:31 am 09/01/20163M

    STEP
    IHP 400-500 Style B 9:31 am 09/01/20168.5M
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC
    pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC
    pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC
    pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC
    pdf

Features:
• Compact (only 17.4” X 8” X 7.8”)
• Mounts and operates in any orientation, inside enclosure
• Available in two installation styles:
– Style A: Installs from inside of the enclosure
– Style B: Installs from outside of the enclosure
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS.
