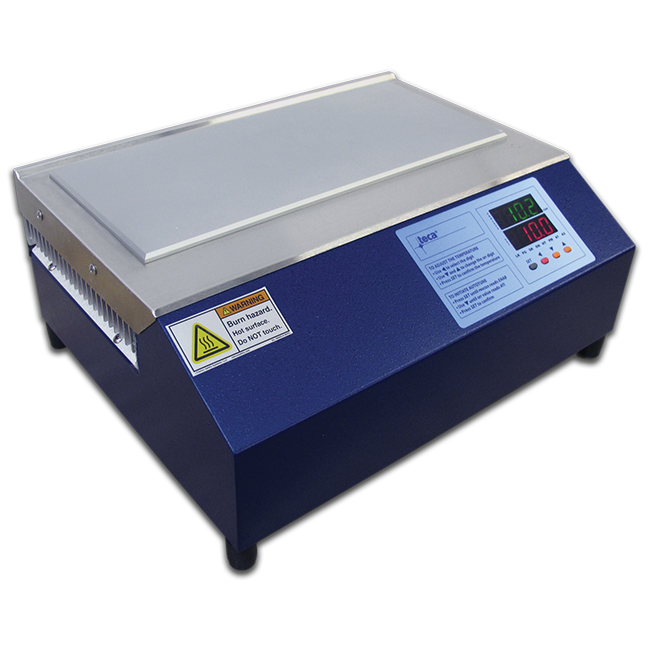

AHP-1200CPV

Air Cooled Thermoelectric Cold Plate For Laboratory


  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC, 24 VDC
    Current: 4.2-1.75 AMPS, 17 AMPS
    Operating Ambient: 0/+50 °C

    Performance Rating:
    Cooling Capacity: 230 WATTS
    Cooling COP: 0.54
    Heating Capacity: 420 WATTS

    Includes:
    • Integral Power Supply
    • Integral PWM Temperature control
    • USB comms port
    • Remote Sensibility

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • 4 Temperature zone with 4 independent PID settings
    • Multi-segment ramp and soak programmable
    • Internal RTD sensor
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB Communication with easy to use software
    • Labview VI examples

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERCOLD PLATE SURFACEVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    COLD PLATE
    TEMP. RANGE °C
    AHP-1200CPV9-35KB-1-0A0
    Smooth surface100-2402.4-1.0-15 / +90
    AHP-1200CPV9-35KB-1-TAP
    6-32 Tap pattern100-2402.4-1.0-15 / +90
    AHP-1200CPV9-35KB-1-MET
    M3 Tap pattern100-2402.4-1.0-15 / +90
    AHP-1200CPV9-35K5-1-0A0
    Smooth surface(24)17-15 / +90
    AHP-1200CPV9-35K5-1-TAP
    6-32 Tap pattern(24)17-15 / +90
    AHP-1200CPV9-35K5-1-MET
    M3 Tap pattern(24)17-15 / +90
    AHP-1200CPV9-35KB-6-0A0
    Smooth surface100-2402.4-1.0-15 / +120
    AHP-1200CPV9-35KB-6-TAP
    6-32 Tap pattern100-2402.4-1.0-15 / +120
    AHP-1200CPV9-35KB-6-MET
    M3 Tap pattern100-2402.4-1.0-15 / +120
    AHP-1200CPV9-35K5-6-0A0
    Smooth surface(24)17-15 / +120
    AHP-1200CPV9-35K5-6-TAP
    6-32 Tap pattern(24)17-15 / +120
    AHP-1200CPV9-35K5-6-MET
    M3 Tap pattern(24)17-15 / +120
    AHP-1200CAS*9-35KB-1-CAS
    6-32 Tap pattern100-2406.0-2.5-20 / +90
    AHP-1200CAS*9-35KB-6-CAS
    6-32 Tap pattern100-2406.0-2.5-20 / +120
    * For use with low temperature cascades
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 1200CPV 2nd Gen 8:45 am 09/01/201619.5M

    SLDP
    AHP 1200CPV 2nd Gen 8:45 am 09/01/20164.3M

    STEP
    AHP 1200CPV 2nd Gen 8:45 am 09/01/20169.3M

    pdf
    AHP 1200CPV 2nd Gen 8:45 am 09/01/2016932.1k
  • Part NumberDescriptionDrawing/PictureData Sheet
    ACP-1200Accessory Plate
    Material: Clear anodized aluminum
    Size: 13.3" X 5.77" Surface
    dwgpdf
    GP-1200Pyrex Plate
    Material: Clear Borosilicate
    Size: 13.30" X 5.77" X 0.125"
    pdf
    C-1200Clear Cover
    Material: Clear Acrylic
    Size: 15" X 8" X 5"
    dwgpdf
    CN-1200Clear Cover
    Material: Clear Acrylic
    Size: 15" X 8" X 5"
    dwgpdf
    CH-1200Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 9.3" X 5"
    dwgpdf
    CHN-1200Clear Cover With Hinge
    Material: Clear Acrylic
    Size: 16" X 9.3" X 5"
    dwgpdf
    BH-1200Barrier
    Material: Clear Acrylic
    Size: 14.2" X 6.7" X H (height)
    Part Number: BH-1200 (H = height in inches 3", 6", 9" standard)
    example B6-1200, B9-1200
    dwgpdf
    AD-1200Air Deflector
    Material: Stainless Steel, Painted
    Size: 4" X 2"
    dwgpdf
    CWB-01Cold Well
    Material: Clear Anodized Aluminum
    Includes: PVC insulation, cover and clamps
    Size: 15.85" X 8.96" X 7.71"
    Accomodates 4 X 1000 mL Boston Round bottles
    for other configurations consult TECA
    dwgpdf
    ICE-12006 Liter Aluminum bead bath
    Electric ice bucket
    dwg
    TT-1200Thermal Transfer Pad
    Size: 13.3" x 5.77" x 0.125"
    RTD-RingThree wire RTD, 100 ? with connector
    6' long, surface mount
    TT-16X8Thermal Transfer Pad
    Size: 16" x 8" x 0.125"
    RTD-ProbeThree wire RTD, 100 ? with connector
    6' long, 1/8" DIA probe

Features:
• Cools and heats (-20 °C to 90 °C & 120 °C)
• Precision machined anodized aluminum cold plate surface
• Stainless steel threaded inserts available (standard & custom patterns)
• Easy to clean stainless steel apron
• Integral PWM temperature controller
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front

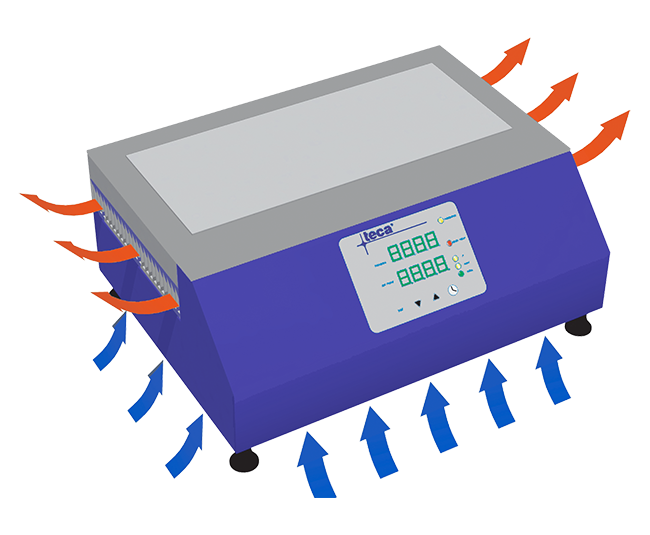

• PWM controlled fan for quieter operation
• Weighs less than 30 lbs. (13.6 kg)
• Operating ambient temperature range of 0 °C to 50 °C
• Compact bench top unit, 11.2” X 15.1” footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Many accessories available
