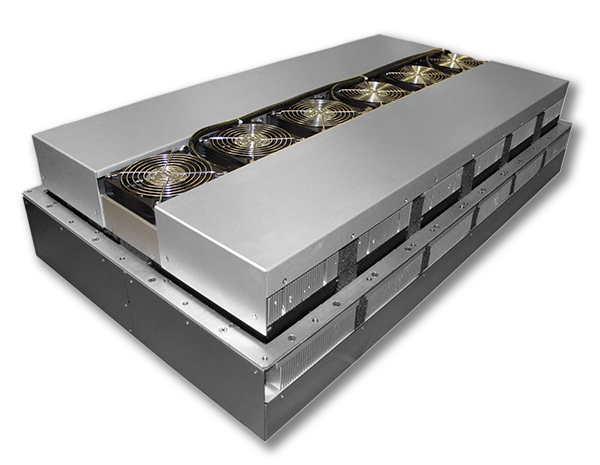

AHP-6253 Series

High Capacity Thermoelectric Air Conditioner


  • Mounting Style: Through Mounted
    Voltage: 3 Phase Delta 240 VAC
    Current: 5.5 AMPS, 1.5 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X

    Performance Rating:
    Cooling (Traditional):
    5080 BTU/HR
    Cooling (Din 3168): 1490 WATTS
    Cooling COP (at L35 L35): 0.7
    Heating (Traditional): >7800 BTU/HR
    Heating (Din 3168): >2290 WATTS
    Heating COP: >1.0
    Heat Exchanger (ECO-Mode): 45 W/°C

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-62530-K4JD-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    AHP-6253HC0-K4ID-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    AHP-6253XE0-K4JD-4-000
    Cool onlyTC-4FNEMA-4, IP 56
    AHP-6253XEHC0-K4ID-5-000
    Heat/CoolTC-7FNEMA-4, IP 56
    AHP-6253X0-K4JD-2-000
    Cool onlyTC-4FNEMA-4X, IP 56
    AHP-6253XHC0-K4ID-3-000
    Heat/CoolTC-7FNEMA-4X, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 6253-63 9:08 am 09/01/201644.5M

    SLDP
    AHP 6253-63 9:08 am 09/01/20167.9M

    STEP
    AHP 6253-63 9:09 am 09/01/201634.9M

    dwg
    AHP 6253-63 9:07 am 09/01/20166.5M

    pdf
    Ahp 6253-63 9:08 am 09/01/201610.8M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-6200Drip pan, vertical cold side finsAHP-6200dwgpdf
    DHA-6200Drip pan, horizontal cold side finsAHP-6200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger (ECO-mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting

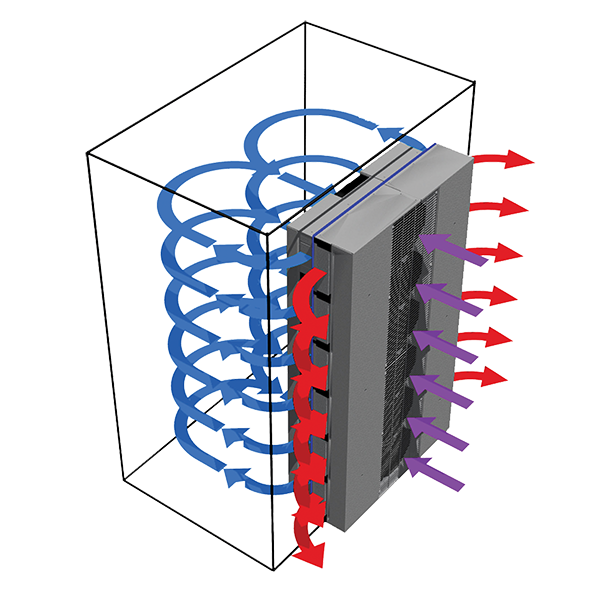

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller (optional remote control *)
• Weight 180 LBS.
