Flush Mount Thermoelectric Panel Cooler

Climate Control for NEMA-12, NEMA-4/4X, Harsh/Mil Duty, CID2 and CID1 530 BTU/HR (154 watts), For AC or DC Input Voltage:

For cooling and heating NEMA equipment cabinets, the FHP-750-Series is an important and incredibly popular legacy product. The FHP-750-Series is a thermoelectric air conditioner designed to protect electronics equipment enclosures from overheating. Utilizing reliable Peltier cooling technology, FHP-750 coolers protect electronic controls, electrical equipment, cabinets, railway signal controls, automation controls, alarms, satellite controls, and other heat sensitive equipment.

Versatile choices allow for use in 24 vdc, 48 vdc, 120 VAC and 240 VAC areas. Cool enclosures while maintaining NEMA-12/4/4X ratings. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. The FHP-750 mounts external to the enclosure, saving the equipment cabinet interior space for its components.

Mounting Style: Flush Mounted
Voltage: 120 VAC, 240 VAC, 24 VDC, 48 VDC
Current: 4 AMPS, 2.5 AMPS, 9 AMPS, 4.5 AMPS
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment
CE Declaration of Conformity (114.4k)
ETL Authorization To Mark (89.6k)
FHP 750 24vdc Data Sheet (182.6k)
FHP 750 48vdc Data Sheet (190.8k)
FHP 750 Data Sheet (189.1k)

Performance Rating:
Cooling (Traditional): 430 BTU/HR
Cooling (Din 3168): 125 WATTS
Cooling COP (at L35 L35): 0.58 (DC version)

Includes:
• Integral power supply
• Mounting gasket and hardware
• Power input cord
• Condensate control system

Controller Features:
TC-1F: Active cool 35 °C
TC-6F: Active cool 25 °C or 35 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	VOLTAGE VAC (VDC)	CURRENT AMPS	ENVIRONMENT
FHP-750	7-A580-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	120	4	Indoors
FHP-750	7-A5F0-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	120	4	Indoors
FHP-750	7-A550-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	120	4	Indoors
FHP-750XE	7-A580-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	120	5	Outdoors
FHP-750XE	7-A5F0-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	120	5	Outdoors
FHP-750XE	7-A550-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	120	5	Outdoors
FHP-752	7-A582-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	240	2.5	Indoors
FHP-752	7-A5F2-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	240	2.5	Indoors
FHP-752	7-A552-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	240	2.5	Indoors
FHP-752XE	7-A552-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	240	2.5	Outdoors
FHP-752XE	7-A582-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	240	2.5	Outdoors
FHP-752XE	7-A5F2-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	240	2.5	Outdoors
FHP-750	7-A585-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(24)	9	Indoors
FHP-750	7-A5F5-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(24)	9	Indoors
FHP-750	7-A555-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(24)	9	Indoors
FHP-750HC	7-A595-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(24)	9	Indoors
FHP-750XE	7-A585-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(24)	9	Outdoors
FHP-750XE	7-A5F5-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(24)	9	Outdoors
FHP-750XE	7-A555-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(24)	9	Outdoors
FHP-750XEHC	7-A595-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(24)	9	Outdoors
FHP-750	7-A586-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(48)	4.5	Indoors
FHP-750	7-A5F6-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(48)	4.5	Indoors
FHP-750	7-A556-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(48)	4.5	Indoors
FHP-750HC	7-A596-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(48)	4.5	Indoors
FHP-750XE	7-A586-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(48)	4.5	Outdoors
FHP-750XE	7-A5F6-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(48)	4.5	Outdoors
FHP-750XE	7-A556-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(48)	4.5	Outdoors
FHP-750XEHC	7-A596-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(48)	4.5	Outdoors

Click to open PDF performance curves:

Fhp 750 DC DIN3168 Cool Mode (10.3k)
Fhp 750 DIN3168 Cool Mode (10.2k)
Fhp 750 Traditional Cool Mode (70.3k)

Click to open files:

Fhp 750 Dimensions (163.6k)
Fhp 750 Installation (205.8k)

CE Declaration of Conformity (114.4k)
ETL Authorization To Mark (89.6k)
FHP 750 24vdc Data Sheet (182.6k)
FHP 750 48vdc Data Sheet (190.8k)
FHP 750 Data Sheet (189.1k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 750	9:28 am 09/01/2016	8.3M
SLDP	Fhp 750	9:28 am 09/01/2016	999.6k
STEP	Fhp 750	9:28 am 09/01/2016	3.7M
dwg	Fhp 750	9:28 am 09/01/2016	1.1M
pdf	Fhp 750	9:28 am 09/01/2016	3.3M
IGS	Fhp 752	9:28 am 09/01/2016	9.5M
SLDP	Fhp 752	9:28 am 09/01/2016	1.2M
STEP	Fhp 752	9:28 am 09/01/2016	4.6M
dwg	Fhp 752	9:28 am 09/01/2016	1.3M
pdf	Fhp 752	9:28 am 09/01/2016	2.8M

Product Manuals:

PIP 7 A5F0-0-000 (1.2M)

PIP 7 A5F0-4-000 (1.2M)

PIP 7 A550-0-000 ECN005E (1.8M)

PIP 7 A550-4-000 ECN005C (518.7k)

PIP 7 A552-0-000 ECN005A (1.4M)

PIP 7 A552-4-000 ECN005C (1.4M)

PIP 7 A580-0-000 ECN005F (1M)

PIP 7 A580-4-000 ECN005C (513.8k)

PIP 7 A582-0-000 ECN005A (1.4M)

PIP 7 A582-4-000 ECN005C (1.4M)

PIP 7 A585-4-000 (1.2M)

PIP 7 A586-0-000 (1.1M)

Part Number	Description	Drawing	Data Sheet
EH-2001	200 Watts Enclosure heater 120 VAC
EH-2002	200 Watts Enclosure heater 240 VAC
EH-4001	400 Watts Enclosure heater 120 VAC
EH-4002	400 Watts Enclosure heater 240 VAC
SP300-24	Switching power supply 300 Watts, 24 VDC
SP500-24	Switching power supply 500 Watts, 24 VDC

Features:
• Externally mounted, no intrusion
• Compact (only 12”L X 6”W X 9”D)
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• NEMA-4 and NEMA-12 versions
• Both 120 VAC and 240 VAC available
• Mounts in any orientation (condensate control may not work properly in all orientations)
• Custom finishes
• Weight: (FHP-750 16 LBS.) (FHP-752 23 LBS.)
• Agency approvals: ETL Intertek

Resources:

Air conditioner Notes

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment 91 Watts (300 BTU/HR):

TECA’s FHP-451 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing AC input voltage and reliable thermoelectric cooling technology, FHP-451 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

Mounting Style: Flush Mounted
Voltage: 120 VAC, 240 VAC
Current: 1.3 AMPS, 0.7 AMPS
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment
Fhp 451 Data Sheet (169.1k)

Performance Rating:
Cooling (Traditional): 300 BTU/HR
Cooling (Din 3168): 91 WATTS
Cooling COP (at L35 L35): 0.65

Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Integral power input cord

Controller Features:
TC-1F: Active cool 35 °C
TC-3F: Active cool 35 °C; Active heat 15 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	VOLTAGE VAC	CURRENT AMPS	ENVIRONMENT
FHP-451	7-F090-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	None	120	1.3	Indoors
FHP-451	7-F0F0-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	120	1.3	Indoors
FHP-451	7-F050-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	120	1.3	Indoors
FHP-451HC	7-F030-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-3F	120	1.3	Indoors
FHP-451XE	7-F090-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	None	120	1.3	Outdoors
FHP-451XE	7-F0F0-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	120	1.3	Outdoors
FHP-451XE	7-F050-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	120	1.3	Outdoors
FHP-451XEHC	7-F030-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-3F	120	1.3	Outdoors
FHP-452	7-F092-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	None	240	0.65	Indoors
FHP-452	7-F0F2-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	240	0.65	Indoors
FHP-452	7-F052-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	240	0.65	Indoors
FHP-452HC	7-F032-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-3F	240	0.65	Indoors
FHP-452XE	7-F092-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	None	240	0.65	Outdoors
FHP-452XE	7-F0F2-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	240	0.65	Outdoors
FHP-452XE	7-F052-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	240	0.65	Outdoors
FHP-452XEHC	7-F032-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-3F	240	0.65	Outdoors

Click to open PDF performance curves:

FHP 451 Traditional Cool Mode (103.6k)
Fhp 451 DIN3168 Cool Mode (10.2k)
Fhp 451 Eco Mode Mode (10.1k)
Fhp 451 Heat Mode Mode (10k)

Click to open files:

FHP 400-500 Installation (132k)
FHP 401-451 Dimensions (178.1k)

Fhp 451 Data Sheet (169.1k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 401-451	9:22 am 09/01/2016	11M
SLDP	Fhp 401-451	9:22 am 09/01/2016	1.7M
STEP	Fhp 401-451	9:22 am 09/01/2016	5.6M
dwg	Fhp 401-451	9:22 am 09/01/2016	1.5M
pdf	Fhp 401-451	9:22 am 09/01/2016	4.4M

Product Manuals:

PIP 7 A5F0-4-000 (1.2M)

PIP 7 F0F0-0-000 (848.1k)

PIP 7 F0F0-4-000 (1.4M)

PIP 7 F030-5-000 (1.5M)

PIP 7 F050-0-000 (802.9k)

PIP 7 F080-0-000 (810.9k)

PIP 7 F080-4-000 (1.4M)

PIP 7 F090-0-000 (789.9k)

Part Number	Description	Drawing	Data Sheet
TC-3400	PID Temperature controller
EH-2001	200 Watts Enclosure heater 120 VAC
EH-2002	200 Watts Enclosure heater 240 VAC
EH-4001	400 Watts Enclosure heater 120 VAC
EH-4002	400 Watts Enclosure heater 240 VAC

Features:
• Compact (only 10” X 5.86” X 9”)
• Mounts and operates in any orientation: horizontal, vertical, etc
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Models for NEMA-12 (IP 52) & NEMA-4 (IP 56) environments
• Easy to use Pivot Clean feature
• Operating ambient temperature range -40/+70 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 18 LBS.

Resources:

Air conditioner Notes

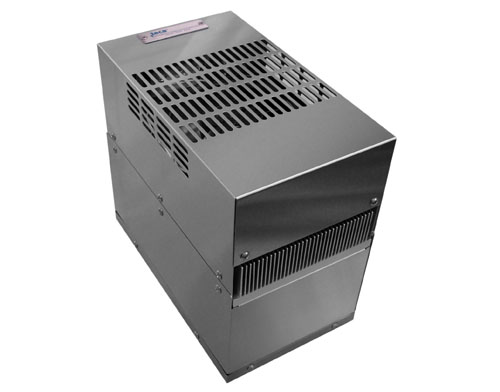

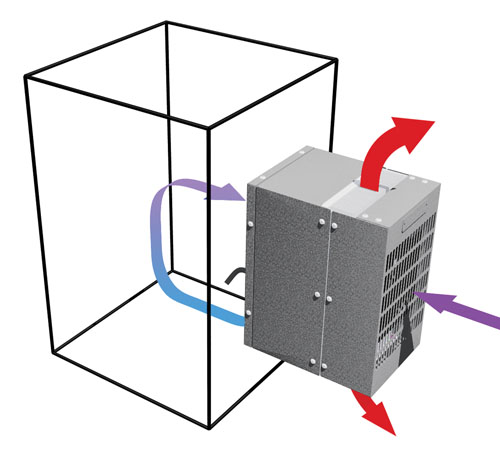

Compact Flush Mount Thermoelectric Air Conditioner:

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 75 Watts (251 BTU/HR):

TECA’s FHP-570 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-570 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

Mounting Style: Flush Mounted
Voltage: 24 VDC (12 VDC configuration available)
Current: 3 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment
Fhp 570 Data Sheet (244.9k)

Performance Rating:
Cooling (Traditional): 251 BTU/HR
Cooling (Din 3168): 75 WATTS
Cooling COP (at L35 L35): 1.04
Heating (Traditional): > 245 BTU/HR
Heating (Din 3168): > 72 WATTS
Heating COP: > 1.0

Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)

Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	ENVIRONMENT
FHP-570	7-G0J5-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Indoors
FHP-570HC	7-G095-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Indoors
FHP-570HC	7-G0I5-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Indoors
FHP-570XE	7-G0J5-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors
FHP-570XEHC	7-G095-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors
FHP-570XEHC	7-G0I5-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors
FHP-570X	7-G0J5-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors/Military
FHP-570XHC	7-G095-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors/Military
FHP-570XHC	7-G0I5-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors/Military

Click to open PDF performance curves:

Fhp 570 DIN3168 Cool Mode (10.2k)
Fhp 570 Eco Mode (10.1k)
Fhp 570 Heat Mode (10.1k)
Fhp 570 Traditional Cool Mode (94.5k)

Click to open files:

Fhp 400-500 Dimensions (178.8k)
Fhp 400-500 Installation (132k)

Fhp 570 Data Sheet (244.9k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 400-500	9:21 am 09/01/2016	11.2M
SLDP	Fhp 400-500	9:21 am 09/01/2016	1.7M
STEP	Fhp 400-500	9:22 am 09/01/2016	5.5M
dwg	Fhp 400-500	9:21 am 09/01/2016	1.4M
pdf	Fhp 400-500	9:21 am 09/01/2016	4.4M

Product Manuals:

PIP 7 G0J5-0-000 (791k)

PIP 7 G0J5-2-000 (1.5M)

PIP 7 G095-5-000 (1.9M)

Part Number	Description	Drawing	Data Sheet
AS150-12	Switching power supply 150 Watts, 12 VDC
AS150-24	Switching power supply 150 Watts, 24 VDC
SP300-12	Switching power supply 300 Watts, 12 VDC
SP300-24	Switching power supply 300 Watts, 24 VDC

Features:
• Compact (only 10” X 5.84” X 7.97”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS

Resources:

Air conditioner Notes
