IHP-3259

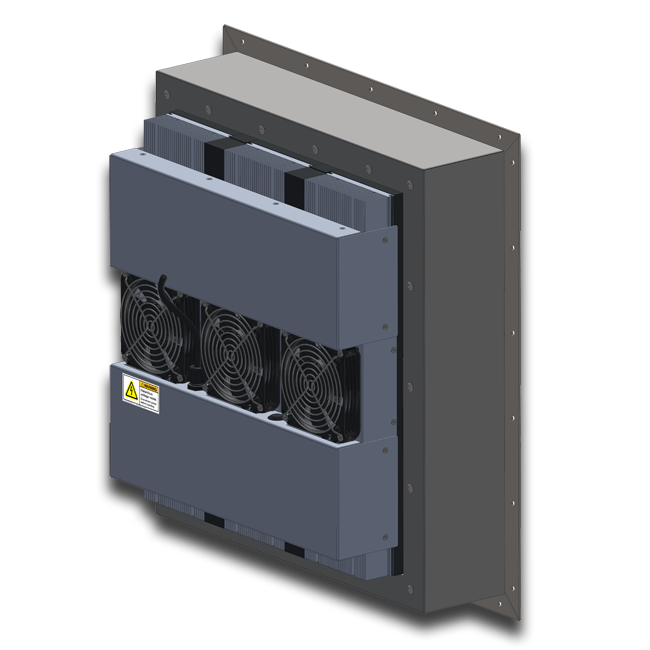

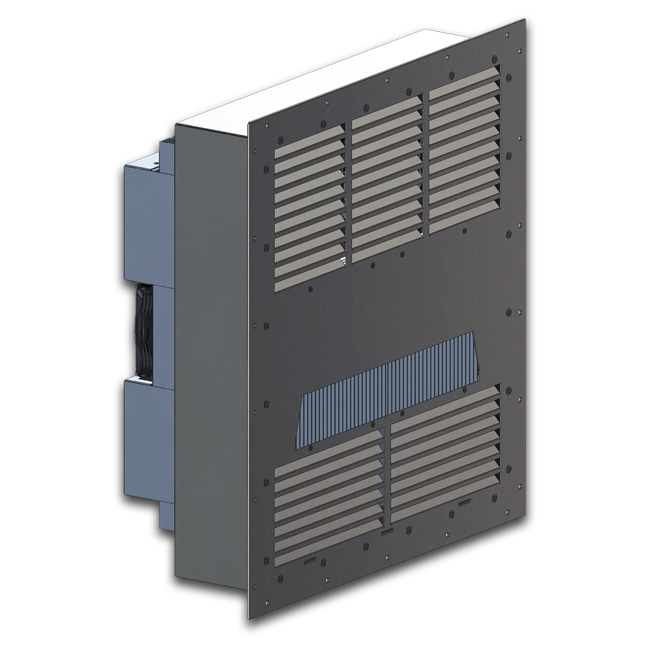

Internal Mounted Advanced Thermoelectric Air Conditioner

Advanced Thermoelectric Air Conditioner, 1270 BTU/HR (373 watts), 100-240 Universal VAC Input:

Thermoelectric IHP-3259-Series is an ideal enclosure cooler for NEMA-4/4X cooling. For cooling any NEMA-12/4/4X enclosure, the IHP-3259-Series can protect electronics equipment from overheating. Peltier cooling technology reliably works to cool electronic controls, electrical equipment, and other heat sensitive equipment. Reliable and low-maintenance Peltier technology is ideal for indoor or outdoor environments. The internally-mounted design of the IHP-2259 is ideal for junction boxes with little to no room extruding equipment. Power saving ECO-Mode feature increases efficiency.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric TECA air conditioners for superior performance and reliability.

  • Mounting Style: Internal Mounted

    Voltage: 100-240 VAC
    Current: 11-4.6 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     1270 BTU/HR
    Cooling (Din 3168): 373 WATTS
    Cooling COP (at L35 L35): 0.34
    Heating (Traditional): >1270 BTU/HR
    Heating (Din 3168): >373 WATTS

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    IHP-3259B-I5JB-0-100
    		Cool onlyTC-4FNEMA-12, IP 52
    IHP-3259B-I55B-0-100
    		Cool only5-32 VDC external signalNEMA-12, IP 52
    IHP-3259HCB-I5IB-1-100
    		Heat/CoolTC-7FNEMA-12, IP 52
    IHP-3259HCB-I55B-1-100
    		Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    IHP-3259XEB-I5JB-4-100
    		Cool onlyTC-4FNEMA-4/4X, IP 56
    IHP-3259XEB-I55B-4-100
    		Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    IHP-3259XEHCB-I5IB-5-100
    		Heat/CoolTC-7FNEMA-4/4X, IP 56
    IHP-3259XEHCB-I55B-5-100
    		Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		IHP 3259 8:30 am 01/27/201770.1M

    PDF    		IHP 3259 8:31 am 01/27/20178M

    SLDP    		IHP 3259 8:31 am 01/27/201722.1M

    STEP    		IHP 3259 8:33 am 01/27/201745.7M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• Unobtrusive mounting style for OEM installation
• Power saving air to air heat exchanger mode (ECO-Mode)
• Temperature driven fan speed for quieter operations
• Heavy duty full perimeter mounting
• Easy installation from exterior of the enclosure
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing (custom paint finishes available)
• Mounts flush with no protrusion outside of the enclosure
• Integral or remote temperature controller
• Weight 93 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

IHP-570 Series

Compact Internal Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment 70 Watts (240 BTU/HR):

TECA’s IHP-570 Series air conditioner cools electrical cabinets and enclosures, protecting heat sensitive equipment from overheating. Utilizing reliable thermoelectric cooling technology, IHP-570 air conditioners are suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as kiosk, communications, surveillance, food and beverage, transit, military and more. Internally mounted design offers closed loop cooling without cooling equipment extruding into the ambient. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

IHP pic
IHP Encl
IHP air flow


  • Mounting Style: Internal Mounted
    Voltage: 24 VDC
    Current: 3 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     240 BTU/HR
    Cooling (Din 3168): 70 WATTS
    Cooling COP (at L35 L35): 0.97
    Heating (Traditional): > 245 BTU/HR
    Heating (Din 3168): > 72 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESINSTALLATION STYLECONTROLLERENVIRONMENT
    IHP-570B-G0J5-0-000
    		Cool onlyATC-4FIndoors
    IHP-570B-G0J5-0-100
    		Cool onlyBTC-4FIndoors
    IHP-570HCB-G095-1-000
    		Heat/CoolANoneIndoors
    IHP-570HCB-G095-1-100
    		Heat/CoolBNoneIndoors
    IHP-570HCB-G0I5-1-000
    		Heat/CoolATC-7FIndoors
    IHP-570HCB-G0I5-1-100
    		Heat/CoolBTC-7FIndoors
    IHP-570XEB-G0J5-4-000
    		Cool onlyATC-4FOutdoors
    IHP-570XEB-G0J5-4-100
    		Cool onlyBTC-4FOutdoors
    IHP-570XEHCB-G095-5-000
    		Heat/CoolANoneOutdoors
    IHP-570XEHCB-G095-5-100
    		Heat/CoolBNoneOutdoors
    IHP-570XEHCB-G0I5-5-000
    		Heat/CoolATC-7FOutdoors
    IHP-570XEHCB-G0I5-5-100
    		Heat/CoolBTC-7FOutdoors
    IHP-570XB-G0J5-2-000
    		Cool onlyATC-4FOutdoors/Military
    IHP-570XB-G0J5-2-100
    		Cool onlyBTC-4FOutdoors/Military
    IHP-570XHCB-G095-3-000
    		Heat/CoolANoneOutdoors/Military
    IHP-570XHCB-G095-3-100
    		Heat/CoolBNoneOutdoors/Military
    IHP-570XHCB-B0I5-3-000
    		Heat/CoolATC-7FOutdoors/Military
    IHP-570XHCB-G0I5-3-100
    		Heat/CoolBTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:

  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		IHP 400-500 Style A 9:30 am 09/01/201652.6M

    PDF    		IHP 400-500 Style A 9:30 am 09/01/20163.4M

    SLDP    		IHP 400-500 Style A 9:30 am 09/01/20168.5M

    STEP    		IHP 400-500 Style A 9:30 am 09/01/201625.6M

    IGS    		IHP 400-500 Style B 9:31 am 09/01/201614.6M

    PDF    		IHP 400-500 Style B 9:31 am 09/01/20161.2M

    SLDP    		IHP 400-500 Style B 9:31 am 09/01/20163M

    STEP    		IHP 400-500 Style B 9:31 am 09/01/20168.5M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 17.4” X 8” X 7.8”)
• Mounts and operates in any orientation, inside enclosure
• Available in two installation styles:
– Style A: Installs from inside of the enclosure
– Style B: Installs from outside of the enclosure
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS.
