thermoelectric cooling

AHP-3250 Series

Weatherproof Thermoelectric Cooler

Weatherproof Thermoelectric Cooler 2250 BTU/HR (660 watts) NEMA-12/4/4X for 48 VDC or 120 VAC Input:

For thermoelectric cooling of weatherproof NEMA cabinets, the AHP-3250-Series is an advanced air conditioner. The Peltier driven AHP-3250-Series will maintain efficient cooling and heating, all while maintaining the integrity of the NEMA12/4/4X rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Climate control equipment boxes, automation controls, rail signals, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or harsh, outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliable climate control.

  • Mounting Style:Through Mounted Voltage: 120 VAC, (48 VDC)
    Current: 7 AMPS, (22 AMPS)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     2250 BTU/HR
    Cooling (Din 3168): 660 WATTS
    Cooling COP (at L35 L35): 0.78
    Heating (Traditional): >2780 BTU/HR
    Heating (Din 3168): >815 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENTCURRENT
    AMPS    		ENVIRONMENT
    AHP-32500-I4J0-0-000
    		Cool onlyTC-4F1207NEMA-12, IP 52
    AHP-32500-I450-0-000
    		Cool only3-32 VDC External signal1207NEMA-12, IP 52
    AHP-3250HC0-I4I0-1-000
    		Heat/CoolTC-7F1207NEMA-12, IP 52
    AHP-3250HC0-I450-1-000
    		Heat/Cool3-32 VDC External signal1207NEMA-12, IP 52
    AHP-3250XE0-I4J0-4-000
    		Cool onlyTC-4F1207NEMA-4/4X, IP 56
    AHP-3250XE0-I450-4-000
    		Cool only3-32 VDC External signal1207NEMA-4/4X, IP 56
    AHP-3250XEHC0-I4I0-5-000
    		Heat/CoolTC-7F1207NEMA-4/4X, IP 56
    AHP-3250XEHC0-I450-5-000
    		Heat/Cool3-32 VDC External signal1207NEMA-4/4X, IP 56
    AHP-3250X0-I4J0-2-000
    		Cool onlyTC-4F1207NEMA-4X/Harsh Environment, IP 56
    AHP-3250X0-I450-2-000
    		Cool only3-32 VDC External signal1207NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I4I0-3-000
    		Heat/CoolTC-7F1207NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I450-3-000
    		Heat/Cool3-32 VDC External signal1207NEMA-4X/Harsh Environment, IP 56
    AHP-32500-I5J6-0-000
    		Cool onlyTC-4F(48)22NEMA-12, IP 52
    AHP-32500-I556-0-000
    		Cool only3-32 VDC External signal(48)22NEMA-12, IP 52
    AHP-3250HC0-I5I6-1-000
    		Heat/CoolTC-7F(48)22NEMA-12, IP 52
    AHP-3250HC0-I556-1-000
    		Heat/Cool3-32 VDC External signal(48)22NEMA-12, IP 52
    AHP-3250XE0-I5J6-4-000
    		Cool onlyTC-4F(48)22NEMA-4/4X, IP 56
    AHP-3250XE0-I556-4-000
    		Cool only3-32 VDC External signal(48)22NEMA-4/4X, IP 56
    AHP-3250XEHC0-I5I6-5-000
    		Heat/CoolTC-7F(48)22NEMA-4/4X, IP 56
    AHP-3250XEHC0-I556-5-000
    		Heat/Cool3-32 VDC External signal(48)22NEMA-4/4X, IP 56
    AHP-3250X0-I5J6-2-000
    		Cool onlyTC-4F(48)22NEMA-4X/Harsh Environment, IP 56
    AHP-3250X0-I556-2-000
    		Cool only3-32 VDC External signal(48)22NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I5I6-3-000
    		Heat/CoolTC-7F(48)22NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I556-3-000
    		Heat/Cool3-32 VDC External signal(48)22NEMA-4X/Harsh Environment, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 3200 8:59 am 09/01/201625.1M

    SLDP    		AHP 3200 8:59 am 09/01/20164.5M

    STEP    		AHP 3200 8:59 am 09/01/201618.5M

    dwg    		AHP 3200 8:58 am 09/01/20163.5M

    pdf    		Ahp 3200 8:59 am 09/01/20164M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 88 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

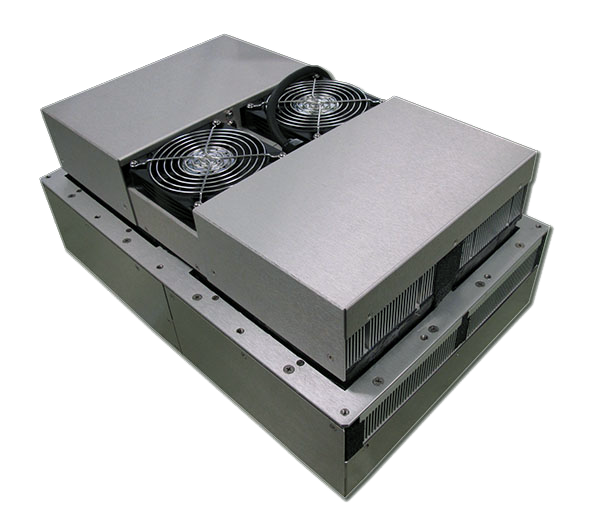

AHP-2252 Series

Weatherproof NEMA Enclosure Cooler

Weatherproof NEMA Enclosure Cooler, 2060 BTU/HR (605 watts) Thermoelectric Enclosure Cooler for 240 Input with High Performance:

For thermoelectric cooling of weatherproof NEMA enclosures, the AHP-2252-Series is an advanced, high performance enclosure cooler and heater. Maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. The Peltier-driven AHP-2252 is designed to protect enclosures from ambient temperatures. Peltier (thermoelectric) cooling technology is reliable and low-maintenance. Cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for cooling enclosures in indoor or harsh, outdoor environments including rail yards, military fields, and agriculture.

Protect your equipment from failure. Choose low maintenance thermoelectric climate control from TECA for superior performance and reliability.

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 60 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-2250 High Efficiency

Efficient Flush Mount Thermoelectric Air Conditioner

Efficient Thermoelectric Air Conditioner Maintains NEMA Cabinet Rating, NEMA-12/4/4X, 1220 BTU/HR (358 watts), AC or DC Input Voltage:

For cooling NEMA-12/4/4X cabinets, the FHP-2250-Series is an advanced thermoelectric cooler. The FHP-2250-Series is a Peltier air conditioner designed to cool NEMA enclosures and protect electronics equipment from overheating. Thermoelectric cooling technology reliably works to cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. ECO-Mode temperature control feature helps save on power use. The flush-mounted design of the FHP-2250 is ideal for control cabinets with little to no room for added equipment.

This thermoelectric cabinet cooler accepts 24 vdc, 48 vdc, and 120 VAC input. It can cool while maintaining NEMA-12/4/4X in industrial or harsh military environments. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliability.

  • Mounting Style: Flush Mounted

    Voltage: 120 VAC, (24 VDC, 48 VDC)
    Current: 3.6 AMPS, (15 AMPS, 8 AMPS)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     1220 BTU/HR
    Cooling (Din 3168): 358 WATTS
    Cooling COP (at L35 L35): 0.83
    Heating (Traditional): >1640 BTU/HR
    Heating (Din 3168): >480 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-22507-H4J0-0-000
    		Cool onlyTC-4F1203.6NEMA-12, IP 52
    FHP-22507-H450-0-000
    		Cool only3-32 VDC External signal1203.6NEMA-12, IP 52
    FHP-2250HC7-H4I0-1-000
    		Heat/CoolTC-7F1203.6NEMA-12, IP 52
    FHP-2250HC7-H450-1-000
    		Heat/Cool3-32 VDC External signal1203.6NEMA-12, IP 52
    FHP-2250XE7-H4J0-4-000
    		Cool onlyTC-4F1203.6NEMA-4/4X, IP 56
    FHP-2250XE7-H450-4-000
    		Cool only3-32 VDC External signal1203.6NEMA-4/4X, IP 56
    FHP-2250XEHC7-H4I0-5-000
    		Heat/CoolTC-7F1203.6NEMA-4/4X, IP 56
    FHP-2250XEHC7-H450-5-000
    		Heat/Cool3-32 VDC External signal1203.6NEMA-4/4X, IP 56
    FHP-2250X7-H4J0-2-000
    		Cool onlyTC-4F1203.6NEMA-4X/Harsh Environment, IP 56
    FHP-2250X7-H450-2-000
    		Cool only3-32 VDC External signal1203.6NEMA-4X/Harsh Environment, IP 56
    FHP-2250XHC7-H4I0-3-000
    		Heat/CoolTC-7F1203.6NEMA-4X/Harsh Environment, IP 56
    FHP-2250XHC7-H450-3-000
    		Heat/Cool3-32 VDC External signal1203.6NEMA-4X/Harsh Environment, IP 56
    FHP-22507-H4J5-0-000
    		Cool onlyTC-4F(24)15NEMA-12, IP 52
    FHP-22507-H455-0-000
    		Cool only3-32 VDC External signal(24)15NEMA-12, IP 52
    FHP-2250HC7-H4I5-1-000
    		Heat/CoolTC-7F(24)15NEMA-12, IP 52
    FHP-2250HC7-H455-1-000
    		Heat/Cool3-32 VDC External signal(24)15NEMA-12, IP 52
    FHP-2250XE7-H4J5-4-000
    		Cool onlyTC-4F(24)15NEMA-4/4X, IP 56
    FHP-2250XE7-H455-4-000
    		Cool only3-32 VDC External signal(24)15NEMA-4/4X, IP 56
    FHP-2250XEHC7-H4I5-5-000
    		Heat/CoolTC-7F(24)15NEMA-4/4X, IP 56
    FHP-2250XEHC7-H455-5-000
    		Heat/Cool3-32 VDC External signal(24)15NEMA-4/4X, IP 56
    FHP-2250X7-H4J5-2-000
    		Cool onlyTC-4F(24)15NEMA-4X/Harsh Environment, IP 56
    FHP-2250X7-H455-2-000
    		Cool only3-32 VDC External signal(24)15NEMA-4X/Harsh Environment, IP 56
    FHP-2250XHC7-H4I5-3-000
    		Heat/CoolTC-7F(24)15NEMA-4X/Harsh Environment, IP 56
    FHP-2250XHC7-H455-3-000
    		Heat/Cool3-32 VDC External signal(24)15NEMA-4X/Harsh Environment, IP 56
    FHP-22507-H4J6-0-000
    		Cool onlyTC-4F(48)8NEMA-12, IP 52
    FHP-22507-H456-0-000
    		Cool only3-32 VDC External signal(48)8NEMA-12, IP 52
    FHP-2250HC7-H4I6-1-000
    		Heat/CoolTC-7F(48)8NEMA-12, IP 52
    FHP-2250HC7-H456-1-000
    		Heat/Cool3-32 VDC External signal(48)8NEMA-12, IP 52
    FHP-2250XE7-H4J6-4-000
    		Cool onlyTC-4F(48)8NEMA-4/4X, IP 56
    FHP-2250XE7-H456-4-000
    		Cool only3-32 VDC External signal(48)8NEMA-4/4X, IP 56
    FHP-2250XEHC7-H4I6-5-000
    		Heat/CoolTC-7F(48)8NEMA-4/4X, IP 56
    FHP-2250XEHC7-H456-5-000
    		Heat/Cool3-32 VDC External signal(48)8NEMA-4/4X, IP 56
    FHP-2250X7-H4J6-2-000
    		Cool onlyTC-4F(48)8NEMA-4X/Harsh Environment, IP 56
    FHP-2250X7-H456-2-000
    		Cool only3-32 VDC External signal(48)8NEMA-4X/Harsh Environment, IP 56
    FHP-2250XHC7-H4I6-3-000
    		Heat/CoolTC-7F(48)8NEMA-4X/Harsh Environment, IP 56
    FHP-2250XHC7-H456-3-000
    		Heat/Cool3-32 VDC External signal(48)8NEMA-4X/Harsh Environment, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		Fhp 2200 9:15 am 09/01/201614.9M

    SLDP    		Fhp 2200 9:16 am 09/01/20162.8M

    STEP    		Fhp 2200 9:16 am 09/01/20168.8M

    dwg    		Fhp 2200 9:15 am 09/01/20162.5M

    pdf    		Fhp 2200 9:15 am 09/01/20164M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact (20.5” L X 13” W X 8.5” D)
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 66 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

WELCOME TO TECA

TECA Corporation in Chicago began as a department of the Borg-Warner Corporation and developed the first commercially available thermoelectric enclosure cooler in 1978. A privately held company since 1984, TECA remains the market innovator of thermoelectric cooling products for industry, military, and laboratories.

We manufacture the broadest range of solid-state thermoelectric cooling products including air-conditioners, cold plates, liquid chillers, and custom assemblies. We proudly build all our products in our Chicago factory and ship directly to our customers around the globe. TECA is committed to using premium components from original source manufacturers and their certified distributors.

Our Customers

From small companies to global giants, from university laboratories to underground mining, our clients are incredibly diverse. We are grateful to be able to serve so many different industries. It is a testament to the value of thermoelectric cooling technology that it is used for so many purposes.

Some of the industries we most frequently serve include:

Automation Laboratory Military
Aerospace Life Science Oil & Gas
Communications Manufacturing R&D
Construction Engineering Satellite
Kiosk Healthcare Surveillance

Quality Mission Statement

The fundamental purpose of TECA is to serve its customers by providing world-class products of the best possible quality.
It is our promise to continually build with premium components from original source manufacturers and their licensed distributors.
It is our promise to continually monitor and improve our own operations.
It is our promise to meet and exceed our customers’ needs.

Guiding Values
Teamwork: Our success depends upon the safety, involvement, commitment, and performance of each team member.
Excellence: Without sacrificing health, safety, or the environment in which we live, we prioritize our efforts to ensure product quality and customer service.
Cooperation: Suppliers are a crucial factor of TECA quality. Their performance will be measured and controlled to ensure on-time, acceptable deliveries.
Accountability: We are dedicated to the continual improvement of our product offerings, our internal practices, and our customer relationships.

50 Years Of Innovations

Thermoelectric News

Customer Testimonials

Historical Photo Gallery

Contact Us

Quarterly eNewsletter
