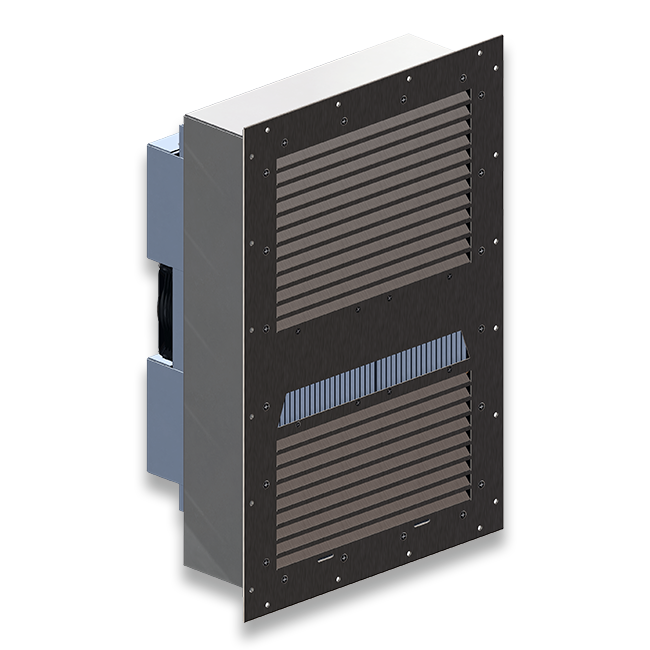

High Efficiency Internal Mounted Thermoelectric Air Conditioner
High Efficiency Thermoelectric Air Conditioner 1040 BTU/HR (305 watts), 100-240 Universal VAC Input:
Thermoelectric IHP-2259-Series is an ideal enclosure cooler for NEMA-4/4X junction box cooling. For cooling any NEMA-12/4/4X enclosure, the IHP-2259-Series can protect electronics equipment boxes from overheating. Peltier climate control technology reliably works to cool and heat electronic controls, electrical equipment, and other heat sensitive equipment. Reliable and low-maintenance Peltier technology is ideal for indoor or outdoor environments. The internally-mounted design of the IHP-2259 is ideal for junction boxes with little to no room extruding equipment, especially for ATMs, railway signal controls, automation controls, satellite and telecom, to name a few examples.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric TECA air conditioners for superior performance and reliable climate control.
Mounting Style: Internal Mounted

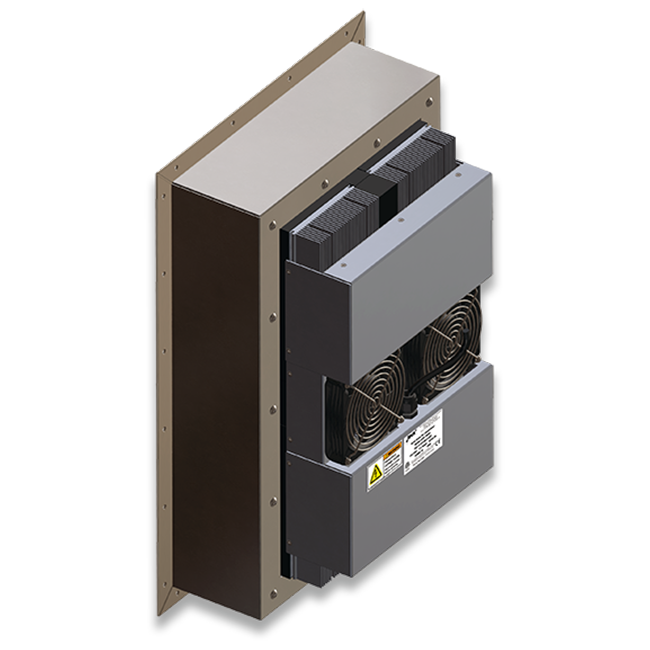

The internal mounted (IHP) air conditioners will mount completely internal to the enclosure
Voltage: 100-240 VAC
Current: 4.5-1.8 AMPS
Operating Ambient: -40/+65 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12Nema-12 (Indoors)Nema-12 enclosures are intended for indoor use primarily to provide a degree of protection against dust, falling dirt, and dripping non-corrosive liquids., Nema-4Nema-4/4X (Outdoors)Nema-4/4X enclosures are intended for indoor or outdoor use to provide protection against windblown dust and rain, splashing and hose-directed water and ice forming damage.
[fileaway base=”5″ only=”IHP-2259 data sheet.pdf”]
Performance Rating:
Cooling (Traditional): 1040 BTU/HR
Cooling (Din 3168): 305 WATTS
Cooling COP (at L35 L35): 0.67
Heating (Traditional): >1530 BTU/HR
Heating (Din 3168): >450 WATTS
Heating COP: >1.0
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
- Click on the part numbers to request a quick quote:
| MODEL NUMBER | PART NUMBER | NOTES | CONTROLLER | ENVIRONMENT |
| IHP-2259 | B-H4JB-0-100
| Cool only | TC-4F | NEMA-12, IP 52 |
| IHP-2259 | B-H45B-0-100
| Cool only | 5-32 VDC external signal | NEMA-12, IP 52 |
| IHP-2259HC | B-H4IB-1-100
| Heat/Cool | TC-7F | NEMA-12, IP 52 |
| IHP-2259HC | B-H45B-1-100
| Heat/Cool | 5-32 VDC external signal | NEMA-12, IP 52 |
| IHP-2259XE | B-H4JB-4-100
| Cool only | TC-4F | NEMA-4/4X, IP 56 |
| IHP-2259XE | B-H45B-4-100
| Cool only | 5-32 VDC external signal | NEMA-4/4X, IP 56 |
| IHP-2259XEHC | B-H4IB-5-100
| Heat/Cool | TC-7F | NEMA-4/4X, IP 56 |
| IHP-2259XEHC | B-H45B-5-100
| Heat/Cool | 5-32 VDC external signal | NEMA-4/4X, IP 56 |
Click to open PDF performance curves:
[fileaway base=”2″ sub=”ihp-2259-curves”]
Click to open files:
[fileaway base=”4″ sub=”ihp-2259-drawings”]
[fileaway base=”5″ only=”IHP-2259 data sheet.pdf”]
- Click to download:
Features:
• High efficiency thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Easy installation from exterior of the enclosure

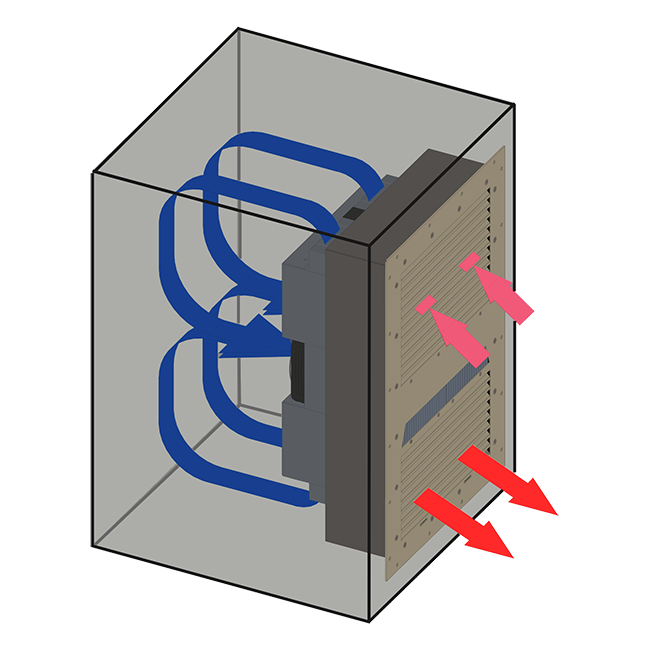

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts flush with no protrusion outside of the enclosure
• Integral or remote temperature controller
• Weight 66 LBS.
