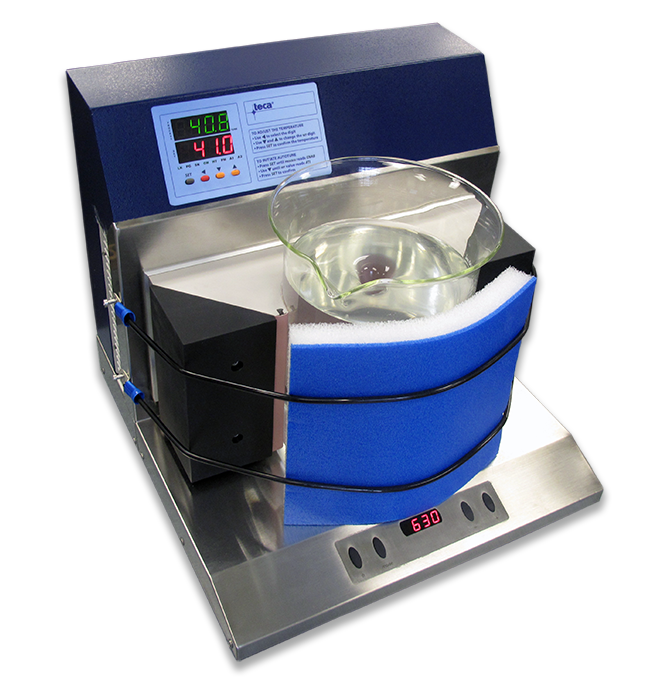

AHP-1200MSP Magnetic Stirring Cold/Hot Plate

Magnetic Stirring Cold/Hot Plate For Laboratory Use

  • Style: Bench Top, Laboratory
    Voltage: 100-240 VAC
    Current: 6.0-2.5 AMPS
    Operating Ambient: 0/+45 °C

    Requirements:
    The AHP-1200MSP must be used with either ICE-1200MSP Ice Bucket or one of the SLV-XXXMSP Cold Shoe accessories.

    SLV-XXXMSP Cold Shoe accessory for direct contact cooling/heating of specific beakers and vessels
    OR
    ICE-1200MSP Ice Bucket accessory for cooling/heating of beakers and vessels of various sizes and shapes without the need for special fixture or rack

    Includes:
    • Integral Power Supply
    • Integral PWM Temperature control
    • USB comms port
    • Remote Sensibility

    Controller Features:
    • Integral “tunable” PWM temperature control
    • PWM, Bi-directional temperature control
    • 4 Temperature zone with 4 independent PID settings
    • Multi-segment ramp and soak programmable
    • Internal RTD sensor
    • Remote Sensibility™ switchable to exterior accessory RTD sensor
    • USB Communication with easy to use software
    • Labview VI examples

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERVOLTAGE
    VAC (VDC)
    CURRENT
    AMPS
    AHP-1200MSP9-35KB-1-MSP
    100-2406.0 - 2.5

    The AHP-1200MSP must be used with either ICE-1200MSP Ice Bucket or one of the SLV-XXXMSP Cold Shoe accessories (order separately)!3.15 [80]

    SLV-XXXMSP Cold Shoe accessories part numbers and specifications:

    PART NUMBER BEAKER
    TYPE
    VOLUME
    mL
    BEAKER DIAMETER
    in [mm]
    BEAKER
    Height

    in [mm]
    SLV-1000LMSP

    Griffin Low Form 1000 4.25 [108] 6.2 [158]
    SLV-1000HMSP

    Berzelius Tall Form 1000 3.5 [89] 7.36 [187]
    SLV-1500MSP

    Griffin Low Form 1500 4.76 [121] 6.5 [166]
    SLV-2000MSP

    Griffin Low Form 2000 5.16 [131] 7.6 [193]
    SLV-3000MSP

    Griffin Low Form 3000 5.75 [146] 8.5 [216]
    SLV-4000MSP Griffin Low Form 4000 6.3 [160] 9.8 [250]
    SLV-5000MSP Griffin Low Form 5000 6.7 [170] 10.6 [270]
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 1200MSP 10:13 am 07/28/201714M

    PDF
    AHP 1200MSP 10:13 am 07/28/20171.1M

    SLDP
    AHP 1200MSP 10:13 am 07/28/20172.7M

    STEP
    AHP 1200MSP 10:13 am 07/28/20177.5M

    IGS
    AHP 1200MSP with SLV 2000 10:13 am 07/28/201713.3M

    PDF
    AHP 1200MSP with SLV 2000 10:13 am 07/28/20171M

    SLDP
    AHP 1200MSP with SLV 2000 10:13 am 07/28/20172.6M

    STEP
    AHP 1200MSP with SLV 2000 10:13 am 07/28/20177.3M

    IGS
    AHP 1200MSP with Bucket 10:12 am 07/28/201713.7M

    PDF
    AHP 1200MSP with Bucket 10:12 am 07/28/20171.1M

    SLDP
    AHP 1200MSP with Bucket 10:12 am 07/28/20172.8M

    STEP
    AHP 1200MSP with Bucket 10:12 am 07/28/20177.4M
  • • tecaLAB Thermal Lab Beads™ for ICE-1200MSP Ice Bucket (ICE-1200MSP includes 3 liters of thermal Lab Beads™)

    PART NUMBER BEAKER
    TYPE
    VOLUME
    mL
    BEAKER DIAMETER
    in [mm]
    BEAKER
    Height

    in [mm]
    SLV-1000LMSP

    Griffin Low Form 1000 4.25 [108] 6.2 [158]
    SLV-1000HMSP

    Berzelius Tall Form 1000 3.5 [89] 7.36 [187]
    SLV-1500MSP

    Griffin Low Form 1500 4.76 [121] 6.5 [166]
    SLV-2000MSP

    Griffin Low Form 2000 5.16 [131] 7.6 [193]
    SLV-3000MSP

    Griffin Low Form 3000 5.75 [146] 8.5 [216]
    SLV-4000MSP Griffin Low Form 4000 6.3 [160] 9.8 [250]
    SLV-5000MSP Griffin Low Form 5000 6.7 [170] 10.6 [270]

Features:
• PWM temperature control
• Fluid process temperature range 0 °C to 50 °C
• Internal and external RTD sensor
• Adjustable stirring from 100 to 1000 RPM
• Accommodates many vessel sizes
• Stainless steel, aluminum and acrylic construction
• Doubles as an Electric Ice BucketTM when not used for stirring
• Always On, Always Cold design: plug it in and leave it on indefinitely
• Samples stay where you place them without racks or fixtures
• No more floating or tipping samples
• Holds capped and non-watertight vessels in place


Resources:

Cold Plate Notes

Applications

Accessories

Manuals

Contact Us

Improved Design: Stir, Cool & Heat Samples

Improved Design: Stir, Cool & Heat Samples

Ideal for laboratory, quality control testing and R&D applications, TECA is pleased to announce a second-generation redesign of our popular AHP-301MSP Magnetic Stirring Hot/Cold Plate. Choose the Cold Shoe configuration and use with multiple beaker sizes on the same sleeve platform. Good thermal contact will be maintained via gap pads. Or, use the Ice Bucket configuration to create a cold or hot bath for your samples without the mess of water or ice.

Read moreImproved Design: Stir, Cool & Heat Samples

ANODIZING ALUMINUM

Anodizing Aluminum:

anodizing aluminum
A technological university in Asia chose TECA’ s thermoelectric cooling Model AHP-800MSP Magnetic Stirring Cold/Hot Plate to anodize aluminum. The researcher’s process required a temperature of 10 °C.

The AHP-800MSP‘s universal input voltage feature (100-240 VAC) allows it to be used anywhere, making it a perfect, off the shelf choice for our customer in Asia. He wrote to us: “It is quite good. Also the manual is quite clear and quite user-friendly. Thank you.”
Unique to this product is the adjustable nature of many of its features: stir-bar speed, fan speed (for noise reduction), temperature sensing (internal or external) and more.

The AHP-800MSP can even accept beakers of various size by adding optional sleeves. The solid-state thermoelectric construction is low-maintenance. There are no filters to change and no moving parts except for the fans. Our products use robust thermoelectric modules and boast a long service life.
