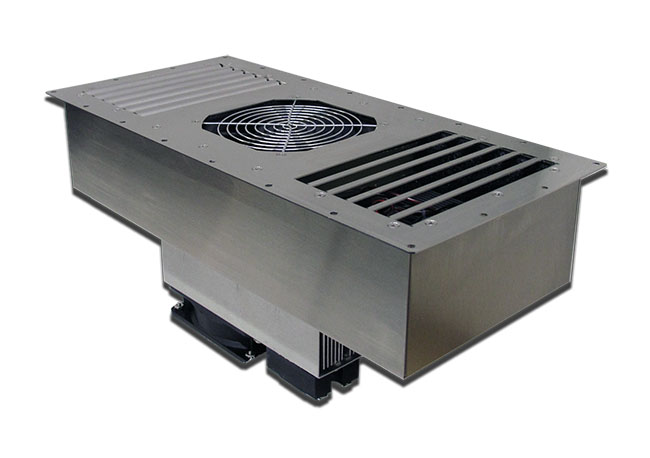

Compact Internal Mount Thermoelectric Air Conditioner
Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment 67 Watts (228 BTU/HR):

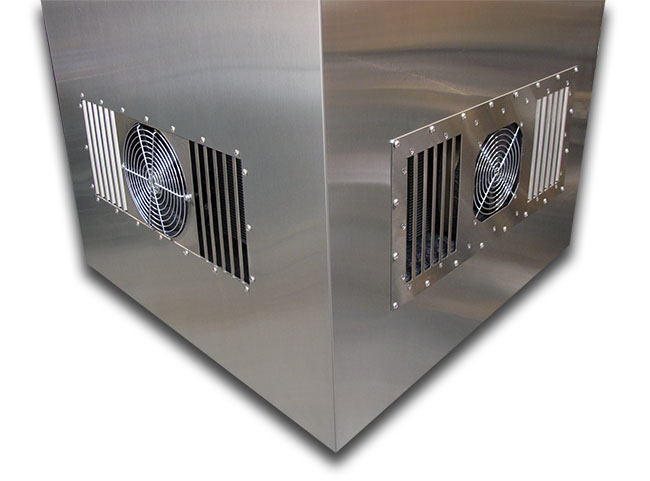

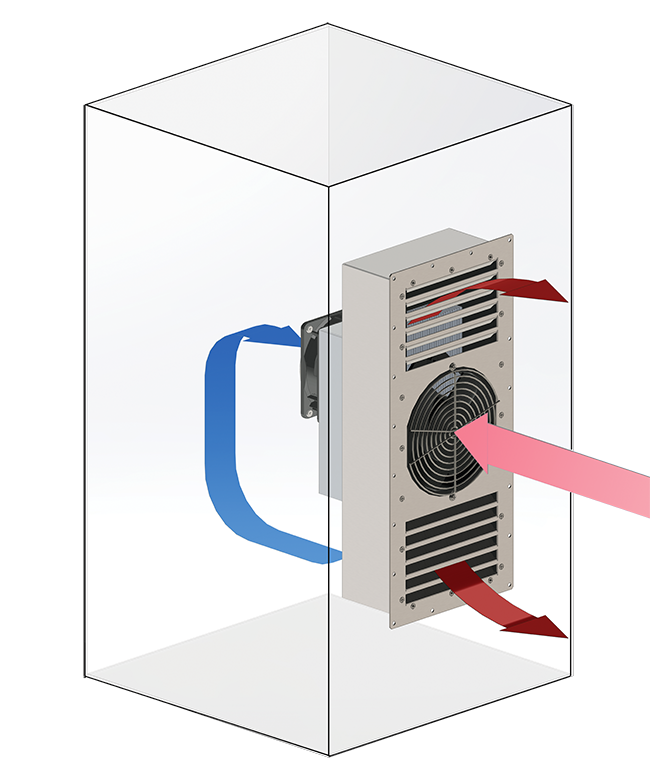

TECA’s IHP-470 Series air conditioner cools electrical cabinets and enclosures, protecting heat sensitive equipment from overheating. Utilizing reliable thermoelectric cooling technology, IHP-470 air conditioners are suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as kiosk, communications, surveillance, food and beverage, transit, military and more. Internally mounted design offers closed loop cooling without cooling equipment extruding into the ambient. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
Mounting Style: Internal Mounted
Voltage: 24 VDC
Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: , ,Performance Rating:
Cooling (Traditional): 228 BTU/HR
Cooling (Din 3168): 67 WATTS
Cooling COP (at L35 L35): 0.4
Heating (Traditional): > 572 BTU/HR
Heating (Din 3168): > 168 WATTS
Heating COP: > 1.0Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES INSTALLATION STYLE CONTROLLER ENVIRONMENT IHP-470 B-F0J5-0-001
Cool only A TC-4F Indoors IHP-470 B-F0J5-0-101
Cool only B TC-4F Indoors IHP-470HC B-F095-1-001
Heat/Cool A None Indoors IHP-470HC B-F095-1-101
Heat/Cool B None Indoors IHP-470HC B-F0I5-1-001
Heat/Cool A TC-7F Indoors IHP-470HC B-F0I5-1-101
Heat/Cool B TC-7F Indoors IHP-470XE B-F0J5-4-001
Cool only A TC-4F Outdoors IHP-470XE B-F0J5-4-101
Cool only B TC-4F Outdoors IHP-470XEHC B-F095-5-001
Heat/Cool A None Outdoors IHP-470XEHC B-F095-5-101
Heat/Cool B None Outdoors IHP-470XEHC B-F0I5-5-001
Heat/Cool A TC-7F Outdoors IHP-470XEHC B-F0I5-5-101
Heat/Cool B TC-7F Outdoors IHP-470X B-F0J5-2-001
Cool only A TC-4F Outdoors/Military IHP-470X B-F0J5-2-101
Cool only B TC-4F Outdoors/Military IHP-470XHC B-F095-3-001
Heat/Cool A None Outdoors/Military IHP-470XHC B-F095-3-101
Heat/Cool B None Outdoors/Military IHP-470XHC B-F0I5-3-001
Heat/Cool A TC-7F Outdoors/Military IHP-470XHC B-F0I5-3-101
Heat/Cool B TC-7F Outdoors/Military - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Part Number Description Drawing Data Sheet DVA-500 Drip pan, vertical cold side fins
DHA-500 Drip pan, horizontal cold side fins D-100 Condensate discharge, plastic D-200 Condensate discharge, ST.ST. AS150-12 Switching power supply
150 Watts, 12 VDCAS150-24 Switching power supply
150 Watts, 24 VDCSP300-12 Switching power supply
300 Watts, 12 VDCSP300-24 Switching power supply
300 Watts, 24 VDCFeatures:
• Compact (only 17.4” X 8” X 7.8”)
• Mounts and operates in any orientation, inside enclosure
• Available in two installation styles:
– Style A: Installs from inside of the enclosure
– Style B: Installs from outside of the enclosure
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS.
