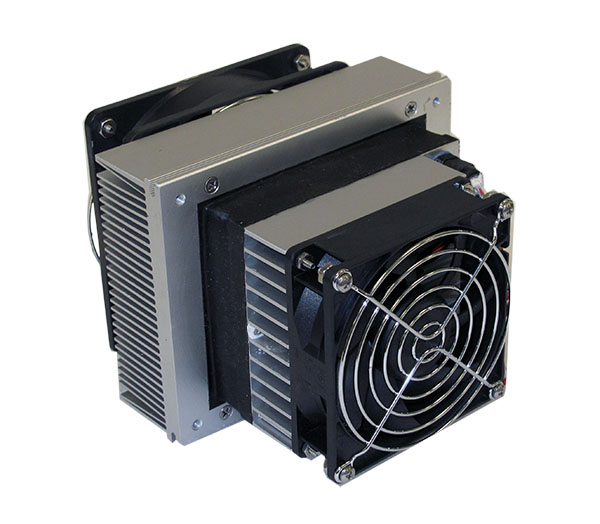

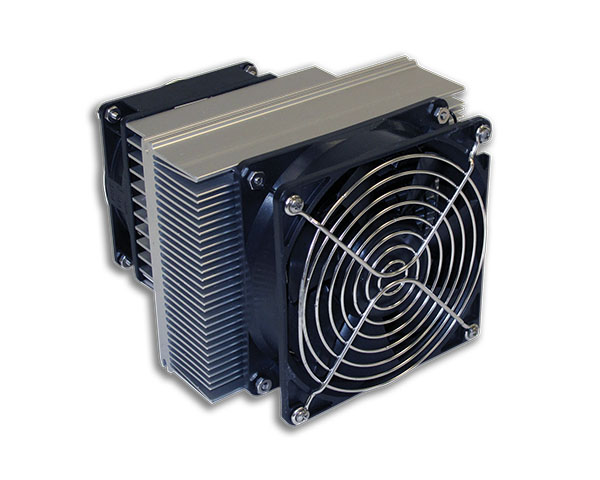

Compact Thermoelectric Air Conditioner
Weatherproof Enclosure Cooling for NEMA-12, NEMA-4/4X & Harsh/Mil Duty 460 BTU/HR (137 watts), For DC Input Voltage:
The AHP-590 Series thermoelectric air conditioner climate controls electronics equipment from overheating. Utilizing reliable Peltier cooling technology, AHP-590 coolers protect NEMA railway equipment boxes, alarms, electronic controls, electrical equipment, cabinets, and other heat sensitive equipment.

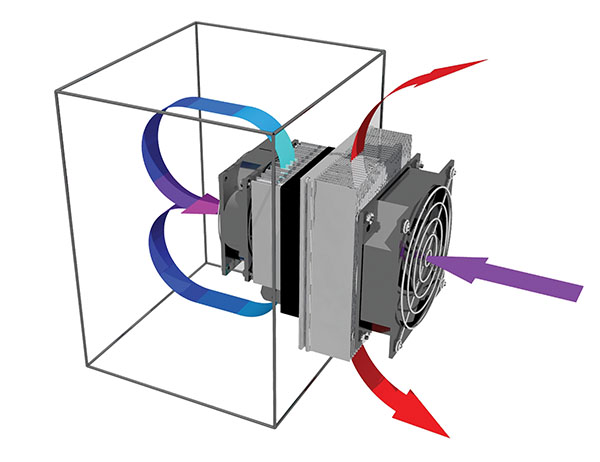

For small to medium enclosure cooling jobs, TECA’s 24 vdc and 48 vdc input coolers are ideal. The AHP-590 is available for 24 vdc or 48 vdc, allowing for the use of reliable, low maintenance thermoelectric cooling technology in more applications. Cool and maintain weatherproof NEMA-12/4/4X enclosure ratings and Harsh/Mil Duty enclosure ratings in industries such as communications, military, kiosk, surveillance, food and beverage, transit, coatings, railway, and more. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. When installed correctly, TECA air conditioners create a closed loop system with no ambient air entering the enclosure.
Mounting Style: Through Mounted
Voltage: 24 VDC, 48 VDC
Current: 6.9 AMPS, 3.5 AMPS
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: , ,Performance Rating:
Cooling (Traditional): 460 BTU/HR
Cooling (Din 3168): 137 WATTS
Cooling COP (at L35 L35): 0.85
Heating (Traditional): > 562 BTU/HR
Heating (Din 3168): > 165 WATTS
Heating COP: > 1.0Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)Controller Features:
Active Cooling: 35 °C
Heat Exchanger (ECO-Mode): 25 °C
Active Heating: 10 °C
Typical Hysteresis: 5 °C- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER NOTES VOLTAGE
VDCCURRENT
AMPSCONTROLLER ENVIRONMENT AHP-590 0-G0J5-0-001
Cool only 24 6.9 TC-4F Indoors AHP-590 0-G0J6-0-001
Cool only 48 3.5 TC-4F Indoors AHP-590HC 0-G095-1-001
Heat/Cool 24 6.9 None Indoors AHP-590HC 0-G096-1-001
Heat/Cool 48 3.5 None Indoors AHP-590HC 0-G0I5-1-001
Heat/Cool 24 6.9 TC-7F Indoors AHP-590HC 0-G0I6-1-001
Heat/Cool 48 3.5 TC-7F Indoors AHP-590XE 0-G0J5-4-001
Cool only 24 6.9 TC-4F Outdoors AHP-590XE 0-G0J6-4-001
Cool only 48 3.5 TC-4F Outdoors AHP-590XEHC 0-G095-5-001
Heat/Cool 24 6.9 None Outdoors AHP-590XEHC 0-G096-5-001
Heat/Cool 48 3.5 None Outdoors AHP-590XEHC 0-G0I5-5-001
Heat/Cool 24 6.9 TC-7F Outdoors AHP-590XEHC 0-G0I6-5-001
Heat/Cool 48 3.5 TC-7F Outdoors AHP-590X 0-G0J5-2-001
Cool only 24 6.9 TC-4F Outdoors/Military AHP-590X 0-G0J6-2-001
Cool only 48 3.5 TC-4F Outdoors/Military AHP-590XHC 0-G095-3-001
Heat/Cool 24 6.9 None Outdoors/Military AHP-590XHC 0-G096-3-001
Heat/Cool 48 3.5 None Outdoors/Military AHP-590XHC 0-G0I5-3-001
Heat/Cool 24 6.9 TC-7F Outdoors/Military AHP-590XHC 0-G0I6-3-001
Heat/Cool 48 3.5 TC-7F Outdoors/Military - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals:
Part Number Description Drawing Data Sheet DVA-500 Drip pan, vertical cold side fins
DHA-500 Drip pan, horizontal cold side fins D-100 Condensate discharge, plastic D-200 Condensate discharge, ST.ST. AS150-12 Switching power supply
150 Watts, 12 VDCAS150-24 Switching power supply
150 Watts, 24 VDCSP300-12 Switching power supply
300 Watts, 12 VDCSP300-24 Switching power supply
300 Watts, 24 VDCFeatures:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.
