AHP-3259

High Capacity Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 100-240 VAC
    Current: 11-4.6 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     2400 BTU/HR
    Cooling (Din 3168): 705 WATTS
    Cooling COP (at L35 L35): 0.64
    Heating (Traditional): >1200 BTU/HR
    Heating (Din 3168): >352 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-32590-I5JB-0-000
    		Cool onlyTC-4FNEMA-12, IP 52
    AHP-32590-I55B-0-000
    		Cool only5-32 VDC external signalNEMA-12, IP 52
    AHP-3259HC0-I5IB-1-000
    		Heat/CoolTC-7FNEMA-12, IP 52
    AHP-3259HC0-I55B-1-000
    		Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    AHP-3259XE0-I5JB-4-000
    		Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-3259XE0-I55B-4-000
    		Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-3259XEHC0-I5IB-5-000
    		Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-3259XEHC0-I55B-5-000
    		Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-3259HC0-I5LB-5-000
    		Heat/CoolTC-5300D PWM controlNEMA-12, IP 52
    AHP-3259XEHC0-I5LB-5-000
    		Heat/CoolTC-5300D PWM controlNEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 3259 8:36 am 11/04/201665.1M

    PDF    		AHP 3259 8:35 am 11/04/20165.6M

    SLDP    		AHP 3259 8:36 am 11/04/201620.8M

    STEP    		AHP 3259 8:36 am 11/04/201641M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• 90-264 VAC Universal input power supply
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 82 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-2259 High Capacity

High Capacity Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 100-240 VAC
    Current: 8.4-3.5 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     1820 BTU/HR
    Cooling (Din 3168): 534 WATTS
    Cooling COP (at L35 L35): 0.65
    Heating (Traditional): >2780 BTU/HR
    Heating (Din 3168): >816 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-22590-H5JB-0-000
    		Cool onlyTC-4FNEMA-12, IP 52
    AHP-22590-H55B-0-000
    		Cool only5-32 VDC external signalNEMA-12, IP 52
    AHP-2259HC0-H5IB-1-000
    		Heat/CoolTC-7FNEMA-12, IP 52
    AHP-2259HC0-H55B-1-000
    		Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    AHP-2259XE0-H5JB-4-000
    		Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-2259XE0-H55B-4-000
    		Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-2259XEHC0-H5IB-5-000
    		Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-2259XEHC0-H55B-5-000
    		Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 2259 8:52 am 09/01/201650.6M

    PDF    		AHP 2259 8:52 am 09/01/20162.2M

    SLDP    		AHP 2259 8:52 am 09/01/201615.5M

    STEP    		AHP 2259 8:53 am 09/01/201632.1M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-2200Drip pan, vertical cold side finsAHP-2200dwgpdf
    DHA-2200Drip pan, horizontal cold side finsAHP-2200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• 90-264 VAC Universal input power supply
• High efficiency thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 60 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-2259 High Efficiency

High Efficiency Thermoelectric Cabinet Cooler

Cabinet Cooler for NEMA-12/4/4X, 1330 BTU/HR (390 watts) As much as 10% increased efficiency in high ambient temperatures:

For thermoelectric climate control of NEMA-12/4/4X cabinets, the AHP-2259-Series is an advanced, high efficiency thermoelectric cooler/heater. The AHP-2259-Series is a Peltier air conditioner designed to protect electronics equipment boxes. Thermoelectric cooling technology reliably works to cool electronic controls, electrical equipment, cabinet controls, and other heat sensitive equipment. Ideal for industrial or harsh military environments. ECO-Mode temperature control feature helps save on power use.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric TECA air conditioners for superior performance and reliable climate control.

  • Mounting Style: Through Mounted

    Voltage: 100-240 VAC
    Current: 4.5-1.8 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     1330 BTU/HR
    Cooling (Din 3168): 390 WATTS
    Cooling COP (at L35 L35): 0.87
    Heating (Traditional): >980 BTU/HR
    Heating (Din 3168): >290 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-22590-H4JB-0-000
    		Cool onlyTC-4FNEMA-12, IP 52
    AHP-22590-H45B-0-000
    		Cool only5-32 VDC external signalNEMA-12, IP 52
    AHP-2259HC0-H4IB-1-000
    		Heat/CoolTC-7FNEMA-12, IP 52
    AHP-2259HC0-H45B-1-000
    		Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    AHP-2259XE0-H4JB-4-000
    		Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-2259XE0-H45B-4-000
    		Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-2259XEHC0-H4IB-5-000
    		Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-2259XEHC0-H45B-5-000
    		Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 2259 8:52 am 09/01/201650.6M

    PDF    		AHP 2259 8:52 am 09/01/20162.2M

    SLDP    		AHP 2259 8:52 am 09/01/201615.5M

    STEP    		AHP 2259 8:53 am 09/01/201632.1M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-2200Drip pan, vertical cold side finsAHP-2200dwgpdf
    DHA-2200Drip pan, horizontal cold side finsAHP-2200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• 90-264 VAC Universal input power supply
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 55 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

PORTABLE SECURITY EQUIPMENT

Portable Security Equipment:

portable security equipment portable security equipment



Site monitor and security equipment for oil fields and transfer stations needed more security. A portable enclosure housing cameras, WI-FI access, antennas and a Mac Mini computer inside leveraging the Mac platform to provide virtually instant access, hi speed, via “Wild Blue”. The system will be like a watchdog that they can strap on wherever they need the monitoring.

With a slight modification an AHP-1200XE thermoelectric cooler provided the best solution while keeping the NEMA-4 rating of the enclosure.

MILITARY PROJECTOR

Military Projector:

military projector



A ruggedized enclosure for a military video projector caused excessive heat to build up from the high wattage bulb.

A more rugged version of TECA’s AHP-1200FF thermoelectric cooler / solid state air conditioner is used by military to cool a projector.

For detail information such as inlet and outlet air temperatures etc…. open the PDF file.

FHP-1501 Series

Flush Mount Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     950 BTU/HR
    Cooling (Din 3168): 278 WATTS
    Cooling COP (at L35 L35): 0.59 (0.64 DC version)



    Includes:
    • Integral power supply
    • Mounting gasket and hardware
    • Power input cord
    • Condensate control system

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-15017-2181-0-000
    		Cool onlyTC-6F120/2408 / 5NEMA-12, IP 52
    FHP-15017-21F1-0-000
    		Cool onlyTC-1F120/2408 / 5NEMA-12, IP 52
    FHP-15017-2151-0-000
    		Cool only3-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    FHP-1501HC7-2131-1-000
    		Heat/CoolTC-3F120/2408 / 5NEMA-12, IP 52
    FHP-1501HC7-2151-1-000
    		Heat/Cool3-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    FHP-1501XE7-2181-4-000
    		Cool onlyTC-6F120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XE7-21F1-4-000
    		Cool onlyTC-1F120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XE7-2151-4-000
    		Cool only3-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XE7-21F5-4-000
    		Cool onlyTC-1F120/24018NEMA-4/4X, IP 56
    FHP-1501XEHC7-2131-5-000
    		Heat/CoolTC-3F120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XEHC7-2151-5-000
    		Heat/Cool3-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    FHP-15017-2185-0-000
    		Cool onlyTC-6F(24)18NEMA-12, IP 52
    FHP-15017-21F5-0-000
    		Cool onlyTC-1F(24)18NEMA-12, IP 52
    FHP-15017-2155-0-000
    		Cool only3-32 VDC external signal(24)18NEMA-12, IP 52
    FHP-1501HC7-2135-1-000
    		Heat/CoolTC-3F(24)18NEMA-12, IP 52
    FHP-1501HC7-21I5-1-000
    		Heat/CoolTC-7F(24)18NEMA-12, IP 52
    FHP-1501HC7-2155-1-000
    		Heat/Cool3-32 VDC external signal(24)18NEMA-12, IP 52
    FHP-1501HC7-21H5-1-000
    		Heat/CoolTC-4600(24)18NEMA-12, IP 52
    FHP-1501XE7-2185-4-000
    		Cool onlyTC-6F(24)18NEMA-4/4X, IP 56
    FHP-1501XE7-2155-4-000
    		Cool only3-32 VDC external signal(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-2135-5-000
    		Heat/CoolTC-3F(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-21I5-5-000
    		Heat/CoolTC-7F(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-2155-5-000
    		Heat/Cool3-32 VDC external signal(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-21H5-5-000
    		Heat/CoolTC-4600(24)18NEMA-4/4X, IP 56
    FHP-15017-2186-0-000
    		Cool onlyTC-6F(48)9NEMA-12, IP 52
    FHP-15017-21F6-0-000
    		Cool onlyTC-1F(48)9NEMA-12, IP 52
    FHP-15017-2156-0-000
    		Cool only3-32 VDC external signal(48)9NEMA-12, IP 52
    FHP-1501HC7-2136-1-000
    		Heat/CoolTC-3F(48)9NEMA-12, IP 52
    FHP-1501HC7-21I6-1-000
    		Heat/CoolTC-7F(48)9NEMA-12, IP 52
    FHP-1501HC7-2156-1-000
    		Heat/Cool3-32 VDC external signal(48)9NEMA-12, IP 52
    FHP-1501XE7-2186-4-000
    		Cool onlyTC-6F(48)9NEMA-4/4X, IP 56
    FHP-1501XE7-2156-4-000
    		Cool only3-32 VDC external signal(48)9NEMA-4/4X, IP 56
    FHP-1501XEHC7-2136-5-000
    		Heat/CoolTC-3F(48)9NEMA-4/4X, IP 56
    FHP-1501XEHC7-21I6-5-000
    		Heat/CoolTC-7F(48)9NEMA-4/4X, IP 56
    FHP-1501XEHC7-2156-5-000
    		Heat/Cool3-32 VDC external signal(48)9NEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		Fhp 1501 9:14 am 09/01/201620.1M

    SLDP    		Fhp 1501 9:14 am 09/01/20162.6M

    STEP    		Fhp 1501 9:15 am 09/01/201611.3M

    dwg    		Fhp 1501 9:14 am 09/01/20162.2M

    pdf    		Fhp 1501 9:14 am 09/01/20165M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• Externally mounted (no intrusion)
• Mounts in multi-unit array for incremental capacity
• Mounts in any orientation (condensate control may not work properly in all orientations)
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Dual voltage (120/240 VAC)
• Custom finishes
• Weight 55 LBS.
• Agency approvals: ETL Intertek

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-1800 Series

Thermoelectric Air Conditioner

Cooling Industrial and Military Enclosures NEMA-4/4X, NEMA-12, Hazardous Location CID2 & CID1, Harsh and Mil Duty 1098 BTU/HR (322 watts), AC or DC Input Voltage:

For cooling and heating NEMA-12/4/4X cabinets, the AHP-1800-Series is an important and incredibly popular legacy product for climate control. The AHP-1800-Series is a Peltier air conditioner designed to protect electronics equipment boxes from overheating. Thermoelectric cooling technology reliably cools (or heats) your enclosures to protect electronic controls, electrical equipment, control cabinets, and other heat sensitive equipment.

This thermoelectric cabinet cooler accepts 24 vdc, 48 vdc, 120 VAC and 240 VAC input. It can cool while maintaining environment ratings: NEMA-12/4/4X, Harsh/Mil Duty, and Hazardous Locations CID1/CID2. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.

  • Mounting Style: Through Mounted

    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40°C up to +75°C (see data sheets)
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     1100 BTU/HR
    Cooling (Din 3168): 322 WATTS
    Cooling COP (at L35 L35): 0.74 (DC version)
    Heating (Traditional): >1473 BTU/HR (DC version)
    Heating (Din 3168): >432 WATTS (DC version)
    Cooling COP (at L35 L35): >1 (DC version)



    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    NEMA-12/IndoorsNEMA-4/4X OutdoorsNEMA-4X/Harsh EnvironmentHaz. Loc.
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-18000-0180-0-000
    		Cool onlyTC-6F1208
    AHP-18000-0150-0-000
    		Cool only3-32 VDC External signal1208
    AHP-18000-01F0-0-000
    		Cool onlyTC-1F1208
    AHP-1800HC0-0130-1-000
    		Heat/CoolTC-3F1208
    AHP-1800HC0-0150-1-000
    		Heat/Cool3-32 VDC External signal1208
    AHP-18020-0182-0-000
    		Cool onlyTC-6F2405
    AHP-18020-0152-0-000
    		Cool only3-32 VDC External signal2405
    AHP-18020-01F2-0-000
    		Cool onlyTC-1F2405
    AHP-1802HC0-0132-1-000
    		Heat/CoolTC-3F2405
    AHP-1802HC0-0152-1-000
    		Heat/Cool3-32 VDC External signal2405
    AHP-18010-0181-0-000
    		Cool onlyTC-6F120/2408.0/5.0
    AHP-18010-01F1-0-000
    		Cool onlyTC-1F120/2408.0/5.0
    AHP-1801HC0-0131-1-000
    		Heat/CoolTC-3F120/2408.0/5.0
    AHP-18000-0195-0-000
    		Cool onlyNone(24)18
    AHP-18000-0185-0-000
    		Cool onlyTC-6F(24)18
    AHP-18000-01F5-0-000
    		Cool onlyTC-1F(24)18
    AHP-18000-0155-0-000
    		Cool only3-32 VDC External signal(24)18
    AHP-1800HC0-0135-1-000
    		Heat/CoolTC-3F(24)18
    AHP-1800HC0-01I5-1-000
    		Heat/CoolTC-7F(24)18
    AHP-1800HC0-0155-1-000
    		Heat/Cool3-32 VDC External signal(24)18
    AHP-1800HC0-01H5-1-000
    		Heat/CoolTC-4600(24)18
    AHP-18000-0196-0-000
    		Cool onlyNone(48)9
    AHP-18000-0186-0-000
    		Cool onlyTC-6F(48)9
    AHP-18000-01F6-0-000
    		Cool onlyTC-1F(48)9
    AHP-18000-0156-0-000
    		Cool only3-32 VDC External signal(48)9
    AHP-1800HC0-0136-1-000
    		Heat/CoolTC-3F(48)9
    AHP-1800HC0-01I6-1-000
    		Heat/CoolTC-7F(48)9
    AHP-1800HC0-0156-1-000
    		Heat/Cool3-32 VDC External signal(48)9
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-1800XE0-0180-4-000
    		Cool onlyTC-6F1208
    AHP-1800XE0-0150-4-000
    		Cool only3-32 VDC External signal1208
    AHP-1800XE0-01F0-4-000
    		Cool onlyTC-1F1208
    AHP-1800XEHC0-0130-5-000
    		Heat/CoolTC-3F1208
    AHP-1800XEHC0-0150-5-000
    		Heat/Cool3-32 VDC External signal1208
    AHP-1802XE0-0182-4-000
    		Cool onlyTC-6F2405
    AHP-1802XE0-0152-4-000
    		Cool only3-32 VDC External signal2405
    AHP-1802XE0-01F2-4-000
    		Cool onlyTC-1F2405
    AHP-1802XEHC0-0132-5-000
    		Heat/CoolTC-3F2405
    AHP-1802XEHC0-0152-5-000
    		Heat/Cool3-32 VDC External signal2405
    AHP-1800XE0-0195-4-000
    		Cool onlyNone(24)18
    AHP-1800XE0-0185-4-000
    		Cool onlyTC-6F(24)18
    AHP-1800XE0-01F5-4-000
    		Cool onlyTC-1F(24)18
    AHP-1800XE0-0155-4-000
    		Cool only3-32 VDC External signal(24)18
    AHP-1800XEHC0-0135-5-000
    		Heat/CoolTC-3F(24)18
    AHP-1800XEHC0-01I5-5-000
    		Heat/CoolTC-7F(24)18
    AHP-1800XEHC0-0155-5-000
    		Heat/Cool3-32 VDC External signal(24)18
    AHP-1800XEHC0-01H5-5-000
    		Heat/CoolTC-4600(24)18
    AHP-1800XE0-0196-4-000
    		Cool onlyNone(48)9
    AHP-1800XE0-0186-4-000
    		Cool onlyTC-6F(48)9
    AHP-1800XE0-01F6-4-000
    		Cool onlyTC-1F(48)9
    AHP-1800XE0-0156-4-000
    		Cool only3-32 VDC External signal(48)9
    AHP-1800XEHC0-0136-5-000
    		Heat/CoolTC-3F(48)9
    AHP-1800XEHC0-01I6-5-000
    		Heat/CoolTC-7F(48)9
    AHP-1800XEHC0-0156-5-000
    		Heat/Cool3-32 VDC External signal(48)9
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-1800X0-0180-2-000
    		Cool onlyTC-6F1208
    AHP-1800X0-0150-2-000
    		Cool only3-32 VDC External signal1208
    AHP-1800X0-01F0-2-000
    		Cool onlyTC-1F1208
    AHP-1800XHC0-0130-3-000
    		Heat/CoolTC-3F1208
    AHP-1800XHC0-0150-3-000
    		Heat/Cool3-32 VDC External signal1208
    AHP-1801X0-0181-2-000
    		Cool onlyTC-6F120/2408.0/6.0
    AHP-1801X0-01F1-2-000
    		Cool onlyTC-1F120/2408.0/6.0
    AHP-1801XHC0-0131-3-000
    		Heat/CoolTC-3F120/2408.0/6.0
    AHP-1800X0-0195-2-000
    		Cool onlyNone(24)18
    AHP-1800X0-0185-2-000
    		Cool onlyTC-6F(24)18
    AHP-1800X0-01F5-2-000
    		Cool onlyTC-1F(24)18
    AHP-1800X0-0155-2-000
    		Cool only3-32 VDC External signal(24)18
    AHP-1800XHC0-0135-3-000
    		Heat/CoolTC-3F(24)18
    AHP-1800XHC0-01I5-3-000
    		Heat/CoolTC-7F(24)18
    AHP-1800XHC0-0155-3-000
    		Heat/Cool3-32 VDC External signal(24)18
    AHP-1800XHC0-01H5-3-000
    		Heat/CoolTC-4600(24)18
    AHP-1800X0-0196-2-000
    		Cool onlyNone(48)9
    AHP-1800X0-0186-2-000
    		Cool onlyTC-6F(48)9
    AHP-1800X0-01F6-2-000
    		Cool onlyTC-1F(48)9
    AHP-1800X0-0156-2-000
    		Cool only3-32 VDC External signal(48)9
    AHP-1800XHC0-0136-3-000
    		Heat/CoolTC-3F(48)9
    AHP-1800XHC0-01I6-3-000
    		Heat/CoolTC-7F(48)9
    AHP-1800XHC0-0156-3-000
    		Heat/Cool3-32 VDC External signal(48)9
    MODEL PART NUMBER VOLTAGE    VAC 50/60 Hz CURRENT AMPS WEIGHT LBS. (KG) TEMP. CONTROL OPERATING AMBIENT TEMPERATURE RANGE C OPERATING ENCLOSURE TEMPERATURE RANGE C ENVIRONMENT
    AHP-1800EP 0-0180-0-002 120 8  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-12
    AHP-1800EP 0-01F0-0-002 120 8  46 (21) TC-1F  -40/+63   -10/+60  NEMA-12
    AHP-1800EP-1 0-0170-0-004 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1800EPHC  0-0130-1-003 120 8  46 (21) TC-3F  -40/+63   -10/+60  NEMA-12
    AHP-1800EPHC-1 0-0170-1-006 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1800XEP 0-0180-4-002 120 8  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEP 0-01F0-4-002 120 8  46 (21) TC-1F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEP-1 0-0170-4-004 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEPHC  0-0130-5-003 120 8  46 (21) TC-3F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEPHC-1 0-0170-5-006 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801EP 0-0181-0-002 120/240 8/5  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-12
    AHP-1801EP 0-01F1-0-002 120/240 8/5  46 (21) TC-1F  -40/+63   -10/+60  NEMA-12
    AHP-1801EP-1 0-0171-0-002 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1801EPHC  0-0131-1-003 120/240 8/5  46 (21) TC-3F  -40/+63   -10/+60  NEMA-12
    AHP-1801EPHC-1 0-0171-1-006 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1801XEP 0-0181-4-002 120/240 8/5  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEP 0-01F1-4-002 120/240 8/5  46 (21) TC-1F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEP-1 0-0171-4-002 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEPHC  0-0131-5-003 120/240 8/5  46 (21) TC-3F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEPHC-1 0-0171-5-006 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XP 0-0180-2-002 120 8 47 (21.4)  TC-6F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XP 0-01F0-2-002 120 8 47 (21.4) TC-1F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XP-1 0-0170-2-004 120 8 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XPHC 0-0130-3-003 120 8 47 (21.4) TC-3F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XPHC-1 0-0170-3-006 120 8 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP 0-0181-2-002 120/240 8/5 47 (21.4)  TC-6F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP 0-01F1-2-002 120/240 8/5 47 (21.4) TC-1F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP-1 0-0171-2-005 120/240 8/5 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XPHC 0-0131-3-003 120/240 8/5 47 (21.4) TC-3F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XPHC-1 0-0171-3-004 120/240 8/5 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh



  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 1801 8:49 am 09/01/201624.8M

    STEP    		AHP 1801 8:49 am 09/01/201610.8M

    sldp    		AHP 1801 8:49 am 09/01/20162M

    SLDP    		AHP 1802XP 1:26 pm 08/01/201912.5M

    IGS    		Ahp 1800 8:48 am 09/01/201625.2M

    SLDP    		Ahp 1800 8:48 am 09/01/20162.3M

    STEP    		Ahp 1800 8:48 am 09/01/201610.9M

    dwg    		Ahp 1800 8:48 am 09/01/20162M

    pdf    		Ahp 1800 8:48 am 09/01/20161.1M

    dwg    		Ahp 1801 8:48 am 09/01/20162M

    pdf    		Ahp 1801 8:49 am 09/01/20161.1M
    Product Manuals:
    MA 1800 (113.9k)
    PIP 0-0150-1-000 ECN004C (630.1k)
    PIP 0-01F0-0-000 (2M)
    PIP 0-01F0-2-000 (2.1M)
    PIP 0-01F0-2-002 (1.2M)
    PIP 0-01F1-0-002 (1.3M)
    PIP 0-01F1-2-000 (1.6M)
    PIP 0-01F1-2-002 (1.2M)
    PIP 0-01F5-4-000 (731.1k)
    PIP 0-01H5-1-000 (860.6k)
    PIP 0-013C 5-000 (622.2k)
    PIP 0-0130-1-000 ECN004D (745.4k)
    PIP 0-0130-1-003 (1.2M)
    PIP 0-0130-3-000 ECN004C (769.5k)
    PIP 0-0130-3-003 ECN000A (1.2M)
    PIP 0-0130-3-003 ECN004D (1.3M)
    PIP 0-0130-5-000 ECN004D (880.5k)
    PIP 0-0130-5-003 (1.3M)
    PIP 0-0131-1-000 ECN007D (683.8k)
    PIP 0-0131-1-003 (1.3M)
    PIP 0-0131-3-000 ECN007C (696.3k)
    PIP 0-0131-3-003 ECN006D (3.3M)
    PIP 0-0132-1-000 ECN004E (815k)
    PIP 0-0132-5-000 ECN005E (972.2k)
    PIP 0-0135-1-000 (1.2M)
    PIP 0-0135-3-000 (1.2M)
    PIP 0-0135-5-000 (1.2M)
    PIP 0-0150-0-000 ECN004C (733.6k)
    PIP 0-0150-1-000 ECN004C (741.6k)
    PIP 0-0150-2-000 ECN004B (724.5k)
    PIP 0-0150-3-000 ECN004B (732.5k)
    PIP 0-0150-4-000 ECN004C (841.5k)
    PIP 0-0150-5-000 ECN004C (864.2k)
    PIP 0-0152-0-000 ECN004C (781.5k)
    PIP 0-0152-1-000 ECN004C (787.1k)
    PIP 0-0152-4-000 ECN005C (889.2k)
    PIP 0-0152-5-000 ECN005C (900.6k)
    PIP 0-0155-0-000 (1.2M)
    PIP 0-0155-1-000 (1.2M)
    PIP 0-0155-2-000 (1.2M)
    PIP 0-0155-3-000 (1.2M)
    PIP 0-0155-4-000 (1.2M)
    PIP 0-0155-5-000 (1.2M)
    PIP 0-0170-0-004 (1.2M)
    PIP 0-0170-1-006 (981.1k)
    PIP 0-0170-2-004 ECN004 (815.4k)
    PIP 0-0170-3-006 ECN004 (1.1M)
    PIP 0-0171-2-005 ECN004 (1.4M)
    PIP 0-0171-3-004 ECN008C (3.4M)
    PIP 0-0171-3-007 ECN002 (1.4M)
    PIP 0-0172-3-006 (1002k)
    PIP 0-0172-3-010 (1.5M)
    PIP 0-018C 4-000 (822.8k)
    PIP 0-0180-0-000 ECN004C (2.7M)
    PIP 0-0180-0-002 (985.1k)
    PIP 0-0180-2-000 ECN002B (1.2M)
    PIP 0-0180-2-002 ECN004C (1.1M)
    PIP 0-0180-4-000 ECN004C (911.8k)
    PIP 0-0181-0-000 ECN006D (655.3k)
    PIP 0-0181-0-001 (1.6M)
    PIP 0-0181-0-002 (1.6M)
    PIP 0-0181-2-000 ECN006C (685.3k)
    PIP 0-0181-2-002 ECN006D (3.3M)
    PIP 0-0181-2-008 ECN001A (980.9k)
    PIP 0-0182-0-000 ECN002B (1.6M)
    PIP 0-0182-2-007 (1.6M)
    PIP 0-0182-4-000 ECN005C (934.5k)
    PIP 0-0185-0-000 (1.3M)
    PIP 0-0185-2-000 (1.3M)
    PIP 0-0185-4-000 (1.3M)
    PIP 0-0195-0-000 (1.2M)
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-1800Drip pan, vertical cold side finsAHP-1800, AHP-1801, AHP-1802dwgpdf
    DHA-1800Drip pan, horizontal cold side finsAHP-1800, AHP-1801, AHP-1802dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    MA-1800Mounting bracketAHP-1800, AHP-1801, AHP-1802pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• Compact, (18” L X 12.35” W X 9.69”D)
• Excels in high ambient temperatures
• Environmentally Safe
• Dual voltage versions available, consult factory.
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments,
shock and vibration
• Mounts and operates in any orientation
• Easy to use Pivot Clean feature
• Weight 52 LBS.
• Agency approvals: ETL Intertek

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

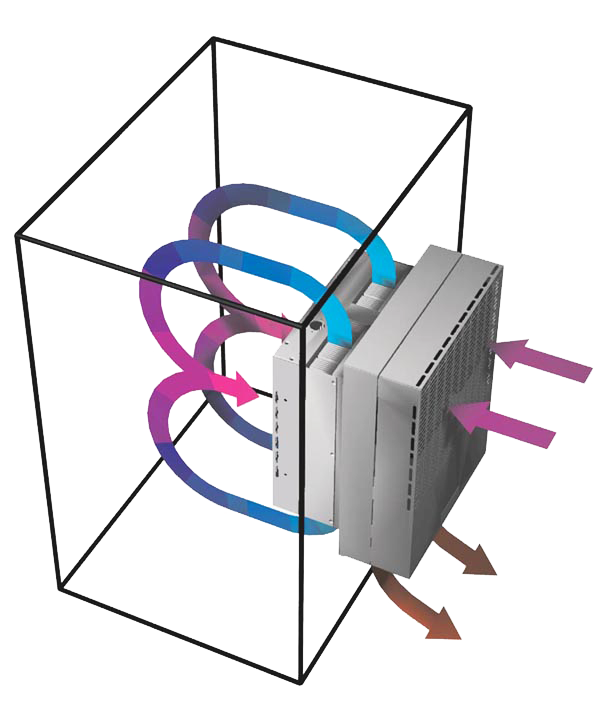

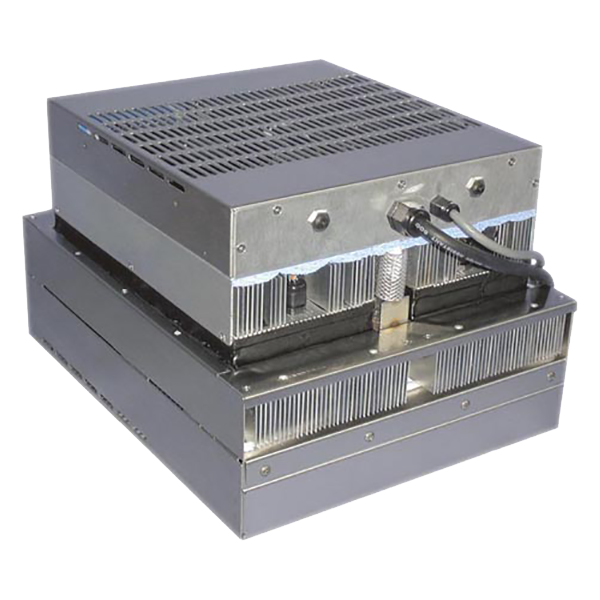

AHP-1501 Series

Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 2.5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     1000 BTU/HR
    Cooling (Din 3168): 300 WATTS
    Cooling COP (at L35 L35): 0.70 (DC version)



    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    AHP-15010-2181-0-000
    		Cool onlyTC-6F120/2408 / 5NEMA-12, IP 52
    AHP-15010-21F1-0-000
    		Cool onlyTC-1F120/2408 / 5NEMA-12, IP 52
    AHP-15010-2151-0-000
    		Cool only5-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    AHP-1501HC0-2131-1-000
    		Heat/CoolTC-3F120/2408 / 5NEMA-12, IP 52
    AHP-1501HC0-2151-1-000
    		Heat/Cool5-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    AHP-1501XE0-2181-4-000
    		Cool onlyTC-6F120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XE0-21F1-4-000
    		Cool onlyTC-1F120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XE0-2151-4-000
    		Cool only5-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XE0-21F5-4-000
    		Cool onlyTC-1F120/24018NEMA-4/4X, IP 56
    AHP-1501XEHC0-2131-5-000
    		Heat/CoolTC-3F120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XEHC0-2151-5-000
    		Heat/Cool5-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    AHP-15010-2185-0-000
    		Cool onlyTC-6F(24)18NEMA-12, IP 52
    AHP-15010-21F5-0-000
    		Cool onlyTC-1F(24)18NEMA-12, IP 52
    AHP-15010-2155-0-000
    		Cool only5-32 VDC external signal(24)18NEMA-12, IP 52
    AHP-1501HC0-2135-1-000
    		Heat/CoolTC-3F(24)18NEMA-12, IP 52
    AHP-1501HC0-21I5-1-000
    		Heat/CoolTC-7F(24)18NEMA-12, IP 52
    AHP-1501HC0-2155-1-000
    		Heat/Cool5-32 VDC external signal(24)18NEMA-12, IP 52
    AHP-1501HC0-21H5-1-000
    		Heat/CoolTC-4600(24)18NEMA-12, IP 52
    AHP-1501XE0-2185-4-000
    		Cool onlyTC-6F(24)18NEMA-4/4X, IP 56
    AHP-1501XE0-2155-4-000
    		Cool only5-32 VDC external signal(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-2135-5-000
    		Heat/CoolTC-3F(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-21I5-5-000
    		Heat/CoolTC-7F(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-2155-5-000
    		Heat/Cool5-32 VDC external signal(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-21H5-5-000
    		Heat/CoolTC-4600(24)18NEMA-4/4X, IP 56
    AHP-15010-2186-0-000
    		Cool onlyTC-6F(48)9NEMA-12, IP 52
    AHP-15010-21F6-0-000
    		Cool onlyTC-1F(48)9NEMA-12, IP 52
    AHP-15010-2156-0-000
    		Cool only5-32 VDC external signal(48)9NEMA-12, IP 52
    AHP-1501HC0-2136-1-000
    		Heat/CoolTC-3F(48)9NEMA-12, IP 52
    AHP-1501HC0-21I6-1-000
    		Heat/CoolTC-7F(48)9NEMA-12, IP 52
    AHP-1501HC0-2156-1-000
    		Heat/Cool5-32 VDC external signal(48)9NEMA-12, IP 52
    AHP-1501XE0-2186-4-000
    		Cool onlyTC-6F(48)9NEMA-4/4X, IP 56
    AHP-1501XE0-2156-4-000
    		Cool only5-32 VDC external signal(48)9NEMA-4/4X, IP 56
    AHP-1501XEHC0-2136-5-000
    		Heat/CoolTC-3F(48)9NEMA-4/4X, IP 56
    AHP-1501XEHC0-21I6-5-000
    		Heat/CoolTC-7F(48)9NEMA-4/4X, IP 56
    AHP-1501XEHC0-2156-5-000
    		Heat/Cool5-32 VDC external signal(48)9NEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		Ahp 1501 8:47 am 09/01/201639.2M

    SLDP    		Ahp 1501 8:47 am 09/01/20164M

    STEP    		Ahp 1501 8:48 am 09/01/201617.4M

    dwg    		Ahp 1501 8:46 am 09/01/20162.1M

    pdf    		Ahp 1501 8:47 am 09/01/20163.2M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-1501Drip pan, vertical cold side finsAHP-1501pdf
    DHA-1501Drip pan, horizontal cold side finsAHP-1501pdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts in multi-unit array for incremental capacity
• Dual voltage 120/240 VAC
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance-free operation
• Environmentally friendly and safe
• No compressor, fluorocarbons or filters
• Stainless steel exterior housing
• Operating ambient temperature range -40/+65 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 52 LBS.
• Agency approvals: ETL Intertek

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

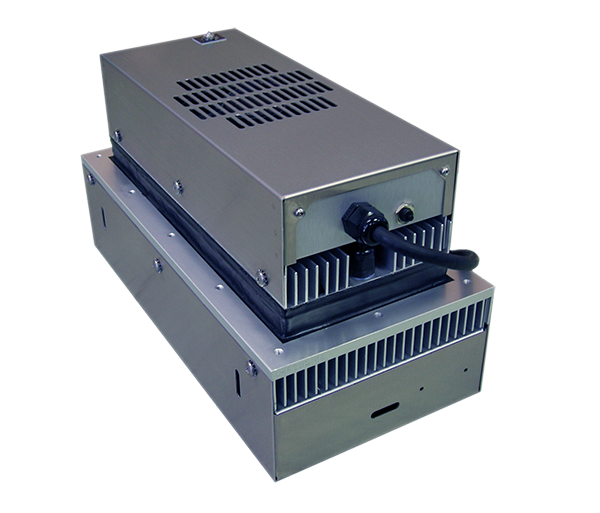

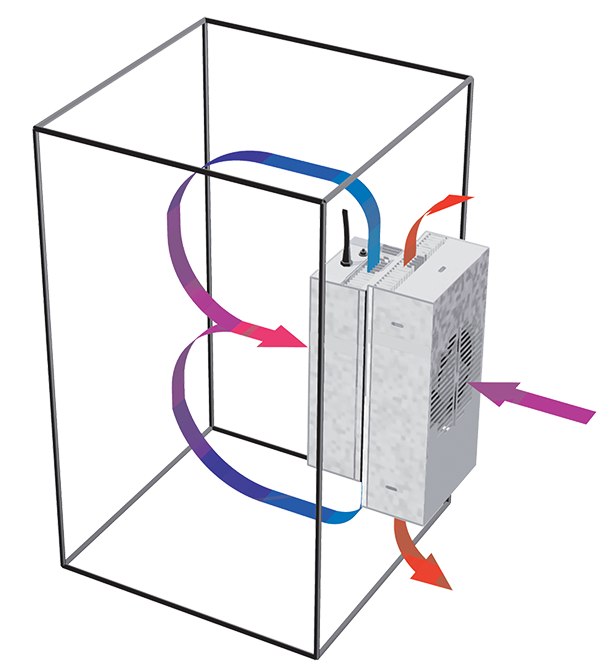

AHP-1200 Series

Thermoelectric Air Conditioner

Climate Control for NEMA-12, NEMA-4/4X, Harsh/Mil Duty, CID2 and CID1 530 BTU/HR (154 watts), For AC or DC Input Voltage:

For cooling NEMA cabinets, the AHP-1200-Series is an important and incredibly popular legacy product. The AHP-1200-Series is a thermoelectric air conditioner designed to protect electronics equipment boxes from overheating. Utilizing reliable Peltier cooling (and heating when needed!) technology, AHP-1200 coolers protect electronic controls, electrical equipment, equipment cabinets, railway controls, alarms, crane controls, automation equipment controls, and other heat sensitive equipment.

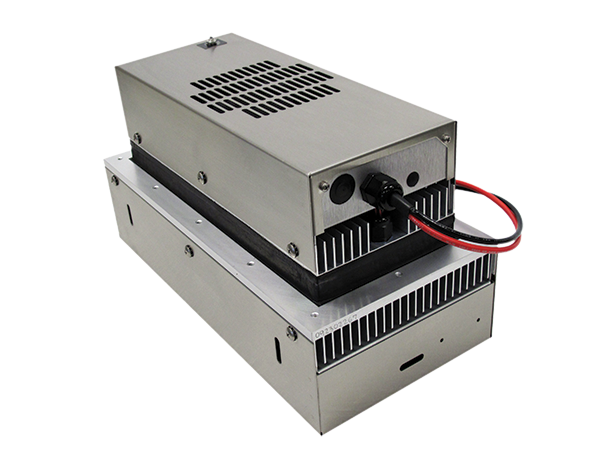

Versatile choices allow for use in 24 vdc, 48 vdc, 120 VAC and 240 VAC areas. Serving every environment rating including NEMA-12/4/4X, Harsh/Mil Duty, and Hazardous Locations. Protect against equipment box failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.

Features:
• Compact, (only 15”L X 7.35”W X 8.17”D)
• Weighs only 21 lbs. (9.5 kg)
• Excels in high ambient temperatures
• Environmentally safe
• Dual voltage versions available
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments, shock and vibration
• Mounts and operates in any orientation
• Easy to use Pivot Clean feature
• Agency approvals: ETL Intertek

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-470 Series

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  80 Watts (259 BTU/HR):

TECA’s FHP-470 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-470 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

fhp-400-pic
fhp-400-app


  • Mounting Style: Flush Mounted

    Voltage: 24 VDC (12 VDC configuration available)
    Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     259 BTU/HR
    Cooling (Din 3168): 80 WATTS
    Cooling COP (at L35 L35): 0.48
    Heating (Traditional): > 572 BTU/HR
    Heating (Din 3168): > 168 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENTSTATUSEQUIVALENT
    FHP-4707-F0J5-0-001
    		Cool onlyTC-4FIndoorsDiscontinued7-F0J5-4-001
    FHP-470HC7-F095-1-001
    		Heat/CoolNoneIndoorsDiscontinued7-F095-5-001
    FHP-470HC7-F0I5-1-001
    		Heat/CoolTC-7FIndoorsDiscontinued7-F0I5-5-001
    FHP-470XE7-F0J5-4-001
    		Cool onlyTC-4FOutdoorsActive
    FHP-470XEHC7-F095-5-001
    		Heat/CoolNoneOutdoorsActive
    FHP-470XEHC7-F0I5-5-001
    		Heat/CoolTC-7FOutdoorsActive
    FHP-470X7-F0J5-2-001
    		Cool onlyTC-4FOutdoors/MilitaryActive
    FHP-470XHC7-F0F5-3-001
    		Heat/CoolNoneOutdoors/MilitaryActive
    FHP-470XHC7-F0I5-3-001
    		Heat/CoolTC-7FOutdoors/MilitaryActive
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		Fhp 400-500 9:21 am 09/01/201611.2M

    SLDP    		Fhp 400-500 9:21 am 09/01/20161.7M

    STEP    		Fhp 400-500 9:22 am 09/01/20165.5M

    dwg    		Fhp 400-500 9:21 am 09/01/20161.4M

    pdf    		Fhp 400-500 9:21 am 09/01/20164.4M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.97”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

Quarterly eNewsletter
