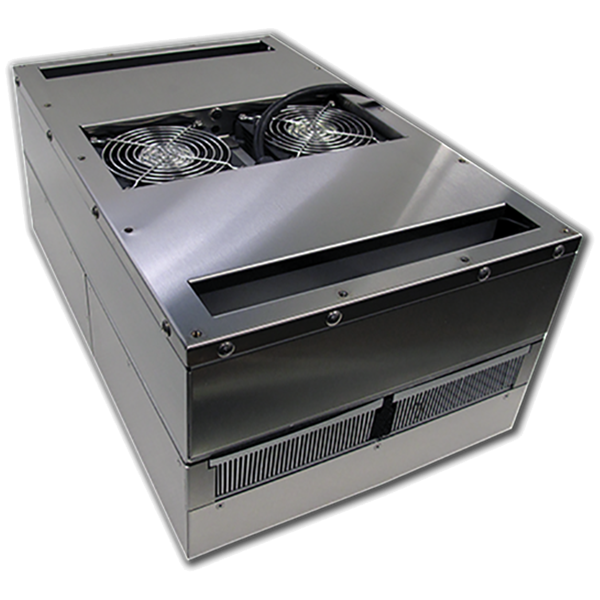

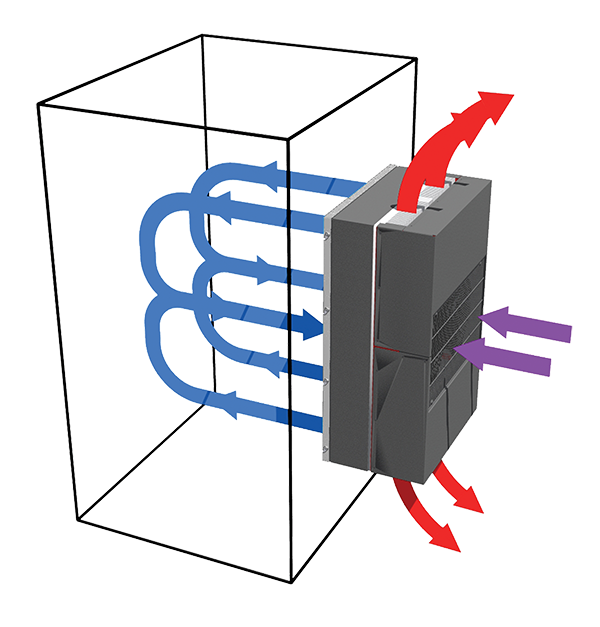

Large Capacity Flush Mount Thermoelectric Cooler

Large Capacity Thermoelectric Cooler 1715 BTU/HR (503 watts) Efficient Peltier Cooling, 48 VDC or 120 VAC Input:

NEMA-12/4/4X enclosures can be cooled with the FHP-2250-Series. This advanced Peltier-driven air conditioner Model FHP-2250 will maintain both efficient cooling and the NEMA rating of your enclosure. The flush-mounted design of the FHP-2250 is ideal for control cabinets with little to no room for added equipment. The ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology (a.k.a. Peltier) is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.

Mounting Style:Flush Mounted Voltage: 120 VAC, (48 VDC)
Current: 10.8 AMPS, (15 AMPS)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment
FHP 2250 48 Vdc Hi Cap Data Sheet (240.9k)
FHP 2250 Hi Cap Data Sheet (305k)

Performance Rating:
Cooling (Traditional): 1715 BTU/HR
Cooling (Din 3168): 503 WATTS
Cooling COP (at L35 L35): 0.39
Heating (Traditional): >4000 BTU/HR
Heating (Din 3168): >1200 WATTS
Heating COP: >1.0

Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker

Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	VOLTAGE VAC (VDC)	CURRENT AMPS	ENVIRONMENT
FHP-2250	7-H5J0-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	120	3.6	NEMA-12, IP 52
FHP-2250	7-H550-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	3-32 VDC External signal	120	3.6	NEMA-12, IP 52
FHP-2250HC	7-H5I0-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	120	3.6	NEMA-12, IP 52
FHP-2250HC	7-H550-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	3-32 VDC External signal	120	3.6	NEMA-12, IP 52
FHP-2250XE	7-H5J0-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	120	3.6	NEMA-4/4X, IP 56
FHP-2250XE	7-H550-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	3-32 VDC External signal	120	3.6	NEMA-4/4X, IP 56
FHP-2250XEHC	7-H5I0-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	120	3.6	NEMA-4/4X, IP 56
FHP-2250XEHC	7-H550-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	3-32 VDC External signal	120	3.6	NEMA-4/4X, IP 56
FHP-2250X	7-H5J0-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	120	3.6	NEMA-4X/Harsh Environment, IP 56
FHP-2250X	7-H550-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	3-32 VDC External signal	120	3.6	NEMA-4X/Harsh Environment, IP 56
FHP-2250XHC	7-H5I0-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	120	3.6	NEMA-4X/Harsh Environment, IP 56
FHP-2250XHC	7-H550-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	3-32 VDC External signal	120	3.6	NEMA-4X/Harsh Environment, IP 56

FHP-2250	7-H5J6-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	(48)	15	NEMA-12, IP 52
FHP-2250	7-H556-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	3-32 VDC External signal	(48)	15	NEMA-12, IP 52
FHP-2250HC	7-H5I6-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	(48)	15	NEMA-12, IP 52
FHP-2250HC	7-H556-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	3-32 VDC External signal	(48)	15	NEMA-12, IP 52
FHP-2250XE	7-H5J6-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	(48)	15	NEMA-4/4X, IP 56
FHP-2250XE	7-H556-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	3-32 VDC External signal	(48)	15	NEMA-4/4X, IP 56
FHP-2250XEHC	7-H5I6-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	(48)	15	NEMA-4/4X, IP 56
FHP-2250XEHC	7-H556-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	3-32 VDC External signal	(48)	15	NEMA-4/4X, IP 56
FHP-2250X	7-H5J6-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	(48)	15	NEMA-4X/Harsh Environment, IP 56
FHP-2250X	7-H556-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	3-32 VDC External signal	(48)	15	NEMA-4X/Harsh Environment, IP 56
FHP-2250XHC	7-H5I6-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	(48)	15	NEMA-4X/Harsh Environment, IP 56
FHP-2250XHC	7-H556-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	3-32 VDC External signal	(48)	15	NEMA-4X/Harsh Environment, IP 56

Click to open PDF performance curves:

Fhp 2250 Hi Cap DIN 3168 Cool Mode (10.2k)
Fhp 2250 Hi Cap Eco Mode (10.1k)
Fhp 2250 Hi Cap Heat Mode (9.9k)
Fhp 2250 Hi Cap Traditional Cool Mode (87.7k)

Click to open files:

Fhp 2200 Dimensions (182.6k)
Fhp 2200 Installation (245.1k)

FHP 2250 48 Vdc Hi Cap Data Sheet (240.9k)
FHP 2250 Hi Cap Data Sheet (305k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 2200	9:15 am 09/01/2016	14.9M
SLDP	Fhp 2200	9:16 am 09/01/2016	2.8M
STEP	Fhp 2200	9:16 am 09/01/2016	8.8M
dwg	Fhp 2200	9:15 am 09/01/2016	2.5M
pdf	Fhp 2200	9:15 am 09/01/2016	4M

Product Manuals:

PIP 7 H4I0-5-000 (1.1M)

PIP 7 H4J0-0-000 (691.5k)

PIP 7 H4J0-4-000 (1.3M)

PIP 7 H4J5-0-000 (1.3M)

PIP 7 H5I0-1-000 (935.5k)

PIP 7 H5I0-5-000 (1.3M)

PIP 7 H5I2-3-000 (1.3M)

PIP 7 H5I2-5-000 (1.2M)

PIP 7 H5J0-0-000 (1.3M)

PIP 7 H5J0-2-000 (1.2M)

PIP 7 H5J0-4-000 (704k)

PIP 7 H5J2-0-000 (711.2k)

PIP 7 H5J2-4-000 (749.6k)

PIP 7 H450-0-000 (1.1M)

PIP 7 H450-1-000 (1.2M)

PIP 7 H550-1-000 (1.2M)

PIP 7 H550-5-000 (1.2M)

PIP 7 H552-3-000 (1.2M)

Part Number	Description	For use with air conditioner series	Drawing	Data Sheet
EH-2001	200 Watts Enclosure heater 120 VAC
EH-2002	200 Watts Enclosure heater 240 VAC
EH-4001	400 Watts Enclosure heater 120 VAC
EH-4002	400 Watts Enclosure heater 240 VAC
D-100	Condensate discharge, plastic
D-200	Condensate discharge, ST.ST.
SP500-24	Switching power supply 500 Watts, 24 VDC
SP800-24	Switching power supply 800 Watts, 24 VDC

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact (20.5” L X 13” W X 8.5” D)
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 66 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4

Resources:

Air conditioner Notes

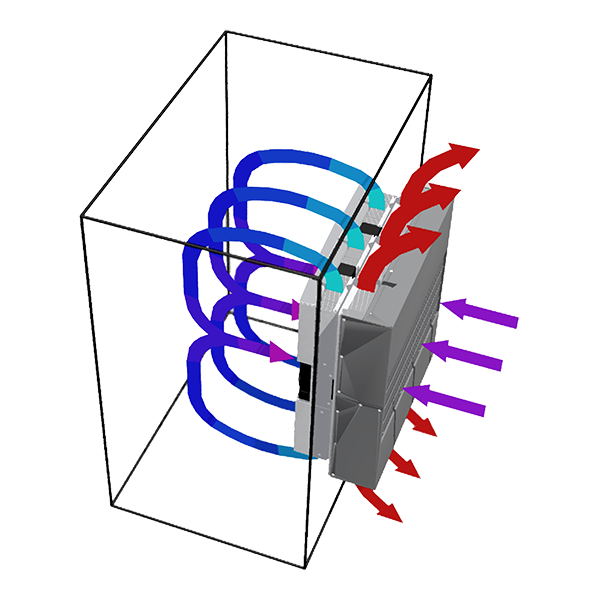

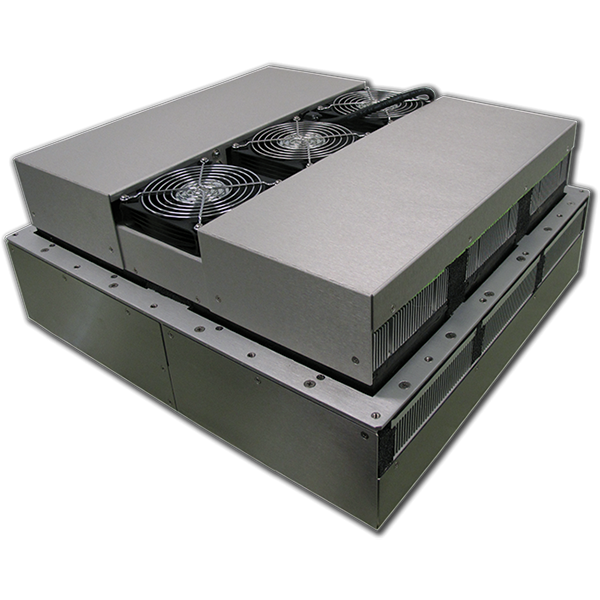

Weatherproof NEMA Enclosure Cooler

Weatherproof NEMA Enclosure Cooler, 2610 BTU/HR (765 watts) Thermoelectric Enclosure Cooler for 240 Input with High Performance:

For thermoelectric cooling of weatherproof NEMA enclosures, the AHP-3252-Series is an advanced, high performance enclosure cooler. Maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. The Peltier-driven AHP-3252 is designed to protect enclosures from overheating. Peltier (thermoelectric) cooling technology is reliable and low-maintenance. Cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for cooling enclosures in indoor or harsh, outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric air conditioners from TECA for superior performance and reliability.

Mounting Style:Through Mounted Voltage: 240 VAC
Current: 4.6 AMPS, 0.7 AMPS Eco-Mode
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment
Ahp 3252 Data Sheet (302.5k)

Performance Rating:
Cooling (Traditional): 2610 BTU/HR
Cooling (Din 3168): 765 WATTS
Cooling COP (at L35 L35): 0.70
Heating (Traditional): >3765 BTU/HR
Heating (Din 3168): >1104 WATTS
Heating COP: >1.0

Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker

Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	ENVIRONMENT
AHP-3252	0-I4J2-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	NEMA-12, IP 52
AHP-3252HC	0-I4I2-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	NEMA-12, IP 52
AHP-3252XE	0-I4J2-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	NEMA-4/4X, IP 56
AHP-3252XEHC	0-I4I2-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	NEMA-4/4X, IP 56
AHP-3252X	0-I4J2-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	NEMA-4X/Harsh Environment, IP 56
AHP-3252XHC	0-I4I2-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	NEMA-4X/Harsh Environment, IP 56

Click to open PDF performance curves:

AHP 3252 DIN 3168 Cool Mode (10.2k)
AHP 3252 Running Current (13.3k)
AHP 3252 Start up Current (13k)
Ahp 3252 Eco Mode (10.1k)
Ahp 3252 Heat Mode (10k)
Ahp 3252 Traditional Cool Mode (82k)

Click to open files:

Ahp 3200 Dimensions (163.3k)
Ahp 3200 Installation (302.3k)

Ahp 3252 Data Sheet (302.5k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	AHP 3200	8:59 am 09/01/2016	25.1M
SLDP	AHP 3200	8:59 am 09/01/2016	4.5M
STEP	AHP 3200	8:59 am 09/01/2016	18.5M
dwg	AHP 3200	8:58 am 09/01/2016	3.5M
pdf	Ahp 3200	8:59 am 09/01/2016	4M

Product Manuals:

PIP 0 I4I0-3-000 (1.5M)

PIP 0 I4I2-1-000 (804.6k)

PIP 0 I4I2-5-000 (1.3M)

PIP 0 I4ID 3-000 (1.9M)

PIP 0 I4ID 5-000 (1.4M)

PIP 0 I4IE 3-000 (1.6M)

PIP 0 I4J0-0-000 (1.2M)

PIP 0 I4J0-4-000 (1.4M)

PIP 0 I4J2-0-000 (814.9k)

PIP 0 I4J2-2-000 (1.3M)

PIP 0 I4JC 0-000 (789.1k)

PIP 0 I5J6-4-000 (1.2M)

Part Number	Description	Drawing	Data Sheet
EH-2001	200 Watts Enclosure heater 120 VAC
EH-2002	200 Watts Enclosure heater 240 VAC
EH-4001	400 Watts Enclosure heater 120 VAC
EH-4002	400 Watts Enclosure heater 240 VAC
DVA-3200	Drip pan, vertical cold side fins
DHA-3200	Drip pan, horizontal cold side fins
D-100	Condensate discharge, plastic
D-200	Condensate discharge, ST.ST.

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 88 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4

Resources:

Air conditioner Notes

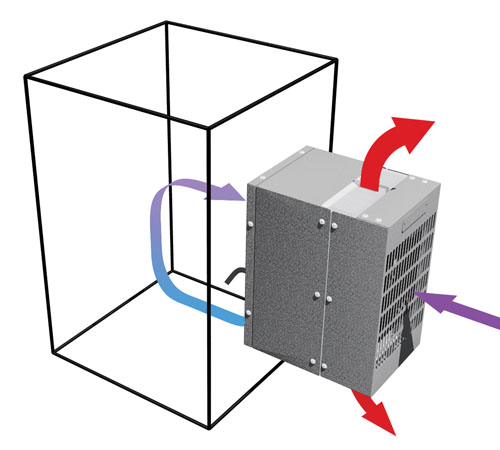

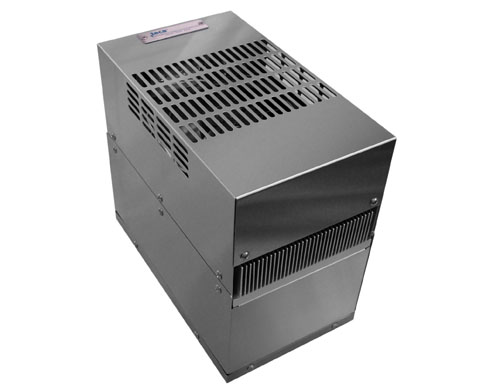

Compact Flush Mount Thermoelectric Air Conditioner:

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 75 Watts (251 BTU/HR):

TECA’s FHP-570 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-570 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

Mounting Style: Flush Mounted
Voltage: 24 VDC (12 VDC configuration available)
Current: 3 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment
Fhp 570 Data Sheet (244.9k)

Performance Rating:
Cooling (Traditional): 251 BTU/HR
Cooling (Din 3168): 75 WATTS
Cooling COP (at L35 L35): 1.04
Heating (Traditional): > 245 BTU/HR
Heating (Din 3168): > 72 WATTS
Heating COP: > 1.0

Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)

Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	ENVIRONMENT
FHP-570	7-G0J5-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Indoors
FHP-570HC	7-G095-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Indoors
FHP-570HC	7-G0I5-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Indoors
FHP-570XE	7-G0J5-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors
FHP-570XEHC	7-G095-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors
FHP-570XEHC	7-G0I5-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors
FHP-570X	7-G0J5-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors/Military
FHP-570XHC	7-G095-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors/Military
FHP-570XHC	7-G0I5-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors/Military

Click to open PDF performance curves:

Fhp 570 DIN3168 Cool Mode (10.2k)
Fhp 570 Eco Mode (10.1k)
Fhp 570 Heat Mode (10.1k)
Fhp 570 Traditional Cool Mode (94.5k)

Click to open files:

Fhp 400-500 Dimensions (178.8k)
Fhp 400-500 Installation (132k)

Fhp 570 Data Sheet (244.9k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 400-500	9:21 am 09/01/2016	11.2M
SLDP	Fhp 400-500	9:21 am 09/01/2016	1.7M
STEP	Fhp 400-500	9:22 am 09/01/2016	5.5M
dwg	Fhp 400-500	9:21 am 09/01/2016	1.4M
pdf	Fhp 400-500	9:21 am 09/01/2016	4.4M

Product Manuals:

PIP 7 G0J5-0-000 (791k)

PIP 7 G0J5-2-000 (1.5M)

PIP 7 G095-5-000 (1.9M)

Part Number	Description	Drawing	Data Sheet
AS150-12	Switching power supply 150 Watts, 12 VDC
AS150-24	Switching power supply 150 Watts, 24 VDC
SP300-12	Switching power supply 300 Watts, 12 VDC
SP300-24	Switching power supply 300 Watts, 24 VDC

Features:
• Compact (only 10” X 5.84” X 7.97”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS

Resources:

Air conditioner Notes

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 53 Watts (197 BTU/HR):

TECA’s FHP-450 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-450 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

Mounting Style: Flush Mounted
Voltage: 24 VDC (12 VDC configuration available)
Current: 2.3 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment
Fhp 450 Data Sheet (212.9k)

Performance Rating:Cooling (Traditional): 197 BTU/HR
Cooling (Din 3168): 53 WATTS
Cooling COP (at L35 L35): 0.96
Heating (Traditional): > 188 BTU/HR
Heating (Din 3168): > 55 WATTS
Heating COP: > 1.0

Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)

Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	ENVIRONMENT
FHP-450	7-F0J5-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Indoors
FHP-450HC	7-F095-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Indoors
FHP-450HC	7-F0I5-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Indoors
FHP-450XE	7-F0J5-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors
FHP-450XEHC	7-F095-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors
FHP-450XEHC	7-F0I5-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors
FHP-450X	7-F0J5-2-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	Outdoors/Military
FHP-450XHC	7-F0F5-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	None	Outdoors/Military
FHP-450XHC	7-F0I5-3-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	Outdoors/Military

Click to open PDF performance curves:

FHP 450 Traditional Cool Mode (89.5k)
Fhp 450 DIN3168 Cool Mode (10.1k)
Fhp 450 Eco Mode (10.1k)
Fhp 450 Heat Mode (10k)

Click to open files:

Fhp 400-500 Dimensions (178.8k)
Fhp 400-500 Installation (132k)

Fhp 450 Data Sheet (212.9k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 400-500	9:21 am 09/01/2016	11.2M
SLDP	Fhp 400-500	9:21 am 09/01/2016	1.7M
STEP	Fhp 400-500	9:22 am 09/01/2016	5.5M
dwg	Fhp 400-500	9:21 am 09/01/2016	1.4M
pdf	Fhp 400-500	9:21 am 09/01/2016	4.4M

Product Manuals:

PIP 7 F0J5-4-000 (800.1k)

Part Number	Description	Drawing	Data Sheet
AS150-12	Switching power supply 150 Watts, 12 VDC
AS150-24	Switching power supply 150 Watts, 24 VDC
SP300-12	Switching power supply 300 Watts, 12 VDC
SP300-24	Switching power supply 300 Watts, 24 VDC

Resources:

Air conditioner Notes
