ATM KIOSK COOLING

ATM Kiosk Cooling:

TECA Model AHP-1200FFHC was chosen by our customer to provide thermal management to an ATM kiosk.

ATM Kiosk cooling   ATM Kiosk cooler

Electronics components often require cooling AND heating. The TECA cooler provides both heating and cooling to the kiosk. This ATM kiosk will be installed in dozens of locations with the TECA air conditioner, AHP-1200FFHC.

Thermoelectric technology is a reliable and low maintenance way to protect electronics. Utilizing the Peltier effect, TECA enclosure coolers (and heaters) do not require coolant, chemicals, compressor or filter.

Enclosure Cooler Features Universal Input Voltage

enclosure cooler with universal input voltage

TECA Corporation has introduced a new enclosure cooler series. The AHP-2259 Series of thermoelectric air conditioners features universal input voltage. Designed to run off of 100 to 240 volts AC, the units can be easily utilized anywhere. There is a high-efficiency version which provides 1330 BTU/hr of cooling with a C.O.P. rating of 1.35. For more cooling, the high-capacity version is capable of 1820 BTU/hr (C.O.P. rating is .65). Both versions include the energy-saving ECO-Mode for passive cooling during lower demand times. Heat/Cool or Cool-only configurations are available. End users can specify NEMA-12 or NEMA-4 as well as temperature control options.

Please contact us for guidance in choosing the best unit for your needs.

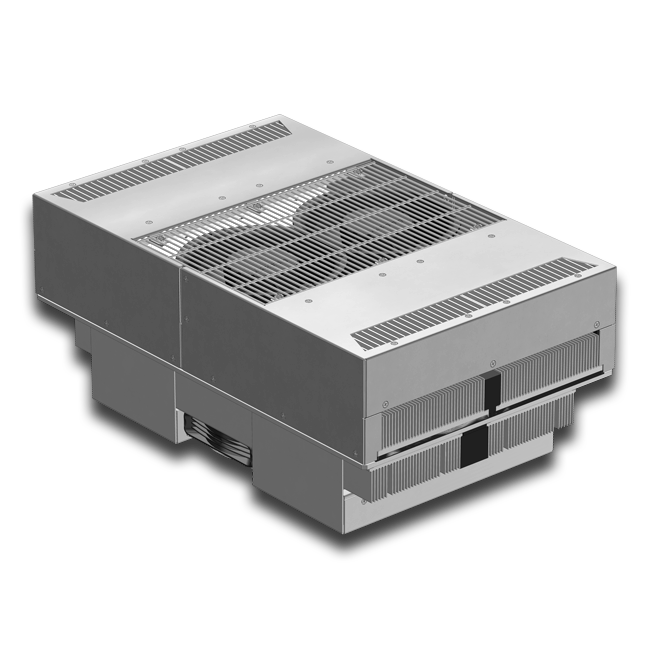

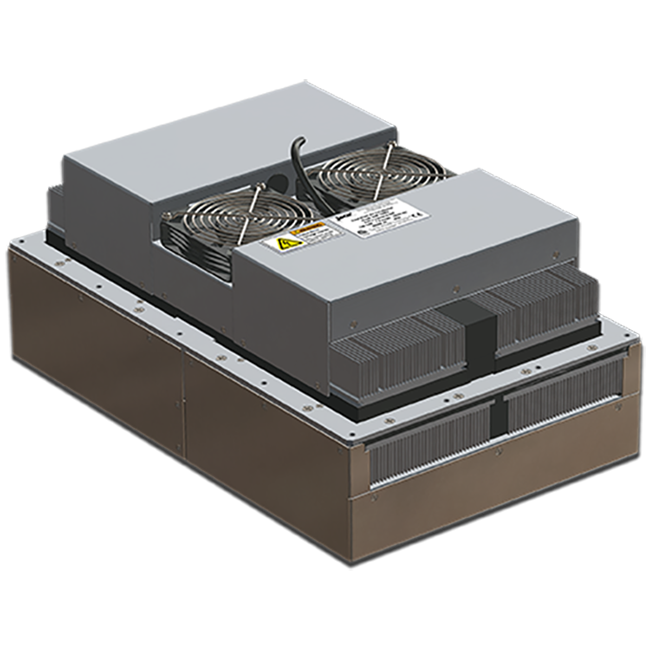

AHP-2259 High Capacity

High Capacity Thermoelectric Air Conditioner


  • Mounting Style: Through Mounted
    Voltage: 100-240 VAC
    Current: 8.4-3.5 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):
    1820 BTU/HR
    Cooling (Din 3168): 534 WATTS
    Cooling COP (at L35 L35): 0.65
    Heating (Traditional): >2780 BTU/HR
    Heating (Din 3168): >816 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-22590-H5JB-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    AHP-22590-H55B-0-000
    Cool only5-32 VDC external signalNEMA-12, IP 52
    AHP-2259HC0-H5IB-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    AHP-2259HC0-H55B-1-000
    Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    AHP-2259XE0-H5JB-4-000
    Cool onlyTC-4FNEMA-4, IP 56
    AHP-2259XE0-H55B-4-000
    Cool only5-32 VDC external signalNEMA-4, IP 56
    AHP-2259XEHC0-H5IB-5-000
    Heat/CoolTC-7FNEMA-4, IP 56
    AHP-2259XEHC0-H55B-5-000
    Heat/Cool5-32 VDC external signalNEMA-4, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 2259 8:52 am 09/01/201650.6M

    PDF
    AHP 2259 8:52 am 09/01/20162.2M

    SLDP
    AHP 2259 8:52 am 09/01/201615.5M

    STEP
    AHP 2259 8:53 am 09/01/201632.1M
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-2200Drip pan, vertical cold side finsAHP-2200dwgpdf
    DHA-2200Drip pan, horizontal cold side finsAHP-2200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• 90-264 VAC Universal input power supply
• High efficiency thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 60 LBS.


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

GAS CHROMATOGRAPHY SYSTEM

Gas Chromatography System:

Gas Chromatography System
Gas Chromatography System Gas Chromatography System



TECA Model AHP-1801XPHC-1 Thermoelectric Air Conditioner is used to enable the safe installation of a gas chromatography system into hazardous locations. Most installations are rated Class 1, Groups C & D, Division II. However in some cases the installations require Group B and/or Group A. TECA’s AHP-1801XPHC-1 maintains the interior of the Process Analyzer Enclosure at a control temperature of around 70o °F.  It meets the various requirements of all the installation environments.

This system is installed in Refining, Petrochemical, Upstream and other applications requiring the aforementioned safety ratings. Controlling the temperature of the equipment enclosure rather than the entire shelter allows for far more economical plant installations even in very cold or very hot environments.

Our customer reports:
“Simply protecting our Process Analyzer Enclosure from direct sunlight and precipitation is enough using the AHP-1801XPHC-1.  The TECA Air Conditioner has plenty of capacity to handle the most demanding environments such as the Texas Gulf Coast and even in Alberta, CA. See the actual plant installation picture where 3 Process Enclosures are shown. The TECA Air Conditioners are clearly evident below each analyzer.  These units have been in operation for more than 2 years without maintenance, without downtime.  This says a lot about the capability and capacity of the TECA product in a tough environment.  And the analyzers have performed flawlessly delivering control quality composition data to the plant process control computer.

CORROSIVE ENVIRONMENT

Corrosive Environment:

corrosive environment corrosive environment



The AHP-1802XPHC-2 met the customers need in an application where other similar products could not function due to extreme corrosive environment.

The TECA design team in a short notice was able to provide a solution based on a standard AHP-1800X thermoelectric air conditioner.

STEEL MILL

Steel Mill:

steel mill

The steel company from Maryland had some enclosures with 4 drives each on some cranes. The high temperature in the steel mill was causing excessive shutdowns. Leaving the enclosure open in this sort of environment just wouldn’t do. Nor would conventional air conditioners survive the shake rattle and bake of the electrical enclosures on these FHP-1501XE 250VDC overhead cranes. On top of all that the only power they had was a widely varying 250 VDC. Which we found out later had some very nasty spikes which caused everyone a few headaches. But the headaches were cured and the customized FHP-1501XE solid state air conditioners continue to run.

How could the company afford custom units? With a streamlined approach where design engineers and the end users actually communicate on a frequent basis with known goals, expectations and commitment from each end. TECA loves happy customers.

RUGGEDIZED MILITARY APPLICATION

Ruggedized Military Application:

ruggedized military application

Sometimes it just takes a long time to get to the heart of a problem. AHP-1200X “quick quote” for two thermoelectric air conditioners came into our sales team. It was responded to and followed up. The application was reviewed, a quote was made and an order placed.

Only after did we learn that the hard requirements they were looking for were:

  1. Dual adjustable temperature control (heat and cool)
  2.  28 VDC operation and
  3. Military environment.

Fortunately the selections within TECA’s enclosure air conditioner family are large. The military Contractor borrowed a unit from TECA’s loaner stock and based on that success, placed an order. It was then that we found a problem.

It seems that the application was to cool some sensitive electronics out on a 200 meter DC input which caused droop in the input which in turn caused a ringing in the circuits. The new digital monitors being used were susceptible while the older tube monitors had no issue.

Working with the customer it was determined that by changing the controller to a ruggedized PWM controller all problems were solved.

MILITARY PROJECTOR

Military Projector:

military projector



A ruggedized enclosure for a military video projector caused excessive heat to build up from the high wattage bulb.

A more rugged version of TECA’s AHP-1200FF thermoelectric cooler / solid state air conditioner is used by military to cool a projector.

For detail information such as inlet and outlet air temperatures etc…. open the PDF file.

OUTDOORS KIOSK

Outdoors Kiosk:

outdoors kiosk outdoors kiosk



An original equipment manufacturer designed a new outdoor information kiosk and required a small cooling solution, before they could start up manufacturing.

We consulted with the customer’s engineers and recommended TECA Model AHP-300XE, to provide the necessary cooling in a compact size. The AHP-300XE is an ideal choice for the application because it is a NEMA4 solid state air conditioner, designed for outdoor use.

FHP-2250 High Capacity

Large Capacity Flush Mount Thermoelectric Cooler

Large Capacity Thermoelectric Cooler 1715 BTU/HR (503 watts) Efficient Peltier Cooling, 48 VDC or 120 VAC Input:

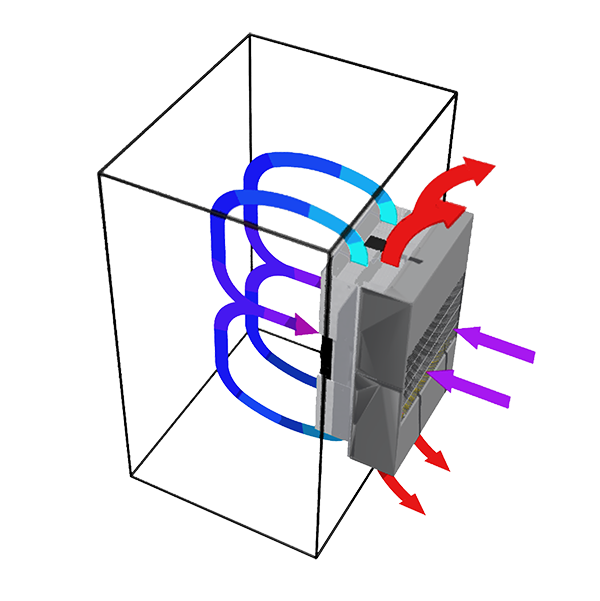

NEMA-12/4/4X enclosures can be cooled with the FHP-2250-Series. This advanced Peltier-driven air conditioner Model FHP-2250 will maintain both efficient cooling and the NEMA rating of your enclosure. The flush-mounted design of the FHP-2250 is ideal for control cabinets with little to no room for added equipment. The ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology (a.k.a. Peltier) is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.


  • Mounting Style:Flush Mounted

    Voltage: 120 VAC, (48 VDC)
    Current: 10.8 AMPS, (15 AMPS)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X

    Performance Rating:
    Cooling (Traditional):
    1715 BTU/HR
    Cooling (Din 3168): 503 WATTS
    Cooling COP (at L35 L35): 0.39
    Heating (Traditional): >4000 BTU/HR
    Heating (Din 3168): >1200 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-22507-H5J0-0-000
    Cool onlyTC-4F1203.6NEMA-12, IP 52
    FHP-22507-H550-0-000
    Cool only3-32 VDC External signal1203.6NEMA-12, IP 52
    FHP-2250HC7-H5I0-1-000
    Heat/CoolTC-7F1203.6NEMA-12, IP 52
    FHP-2250HC7-H550-1-000
    Heat/Cool3-32 VDC External signal1203.6NEMA-12, IP 52
    FHP-2250XE7-H5J0-4-000
    Cool onlyTC-4F1203.6NEMA-4, IP 56
    FHP-2250XE7-H550-4-000
    Cool only3-32 VDC External signal1203.6NEMA-4, IP 56
    FHP-2250XEHC7-H5I0-5-000
    Heat/CoolTC-7F1203.6NEMA-4, IP 56
    FHP-2250XEHC7-H550-5-000
    Heat/Cool3-32 VDC External signal1203.6NEMA-4, IP 56
    FHP-2250X7-H5J0-2-000
    Cool onlyTC-4F1203.6NEMA-4X, IP 56
    FHP-2250X7-H550-2-000
    Cool only3-32 VDC External signal1203.6NEMA-4X, IP 56
    FHP-2250XHC7-H5I0-3-000
    Heat/CoolTC-7F1203.6NEMA-4X, IP 56
    FHP-2250XHC7-H550-3-000
    Heat/Cool3-32 VDC External signal1203.6NEMA-4X, IP 56
    FHP-22507-H5J6-0-000
    Cool onlyTC-4F(48)15NEMA-12, IP 52
    FHP-22507-H556-0-000
    Cool only3-32 VDC External signal(48)15NEMA-12, IP 52
    FHP-2250HC7-H5I6-1-000
    Heat/CoolTC-7F(48)15NEMA-12, IP 52
    FHP-2250HC7-H556-1-000
    Heat/Cool3-32 VDC External signal(48)15NEMA-12, IP 52
    FHP-2250XE7-H5J6-4-000
    Cool onlyTC-4F(48)15NEMA-4, IP 56
    FHP-2250XE7-H556-4-000
    Cool only3-32 VDC External signal(48)15NEMA-4, IP 56
    FHP-2250XEHC7-H5I6-5-000
    Heat/CoolTC-7F(48)15NEMA-4, IP 56
    FHP-2250XEHC7-H556-5-000
    Heat/Cool3-32 VDC External signal(48)15NEMA-4, IP 56
    FHP-2250X7-H5J6-2-000
    Cool onlyTC-4F(48)15NEMA-4X, IP 56
    FHP-2250X7-H556-2-000
    Cool only3-32 VDC External signal(48)15NEMA-4X, IP 56
    FHP-2250XHC7-H5I6-3-000
    Heat/CoolTC-7F(48)15NEMA-4X, IP 56
    FHP-2250XHC7-H556-3-000
    Heat/Cool3-32 VDC External signal(48)15NEMA-4X, IP 56
  • Click to download:

  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact (20.5” L X 13” W X 8.5” D)
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 66 LBS.


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us
