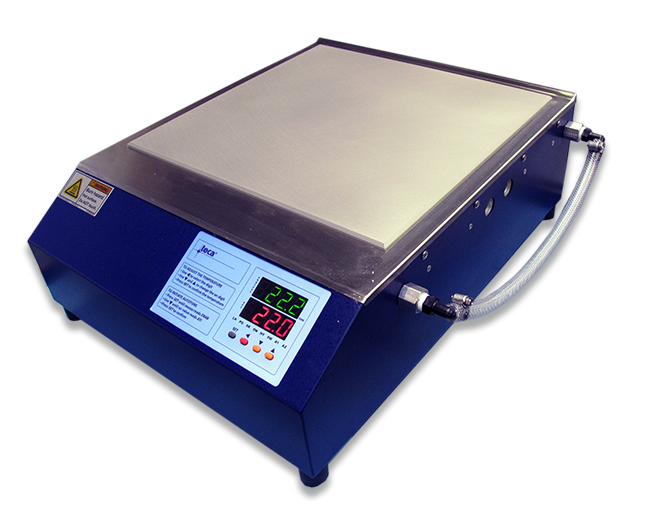

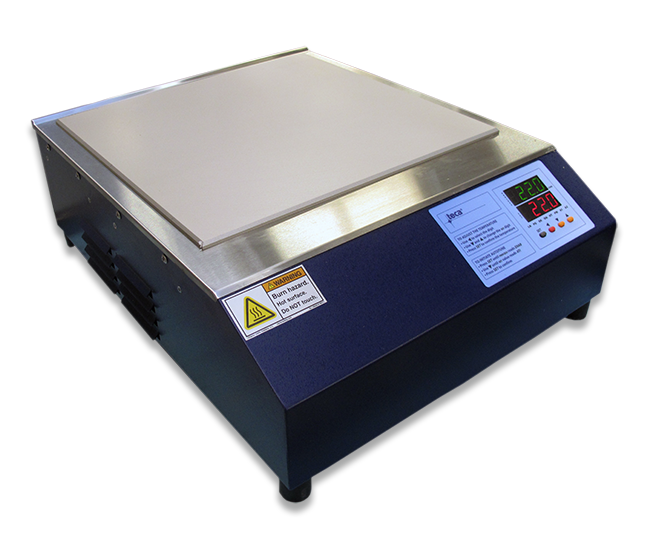

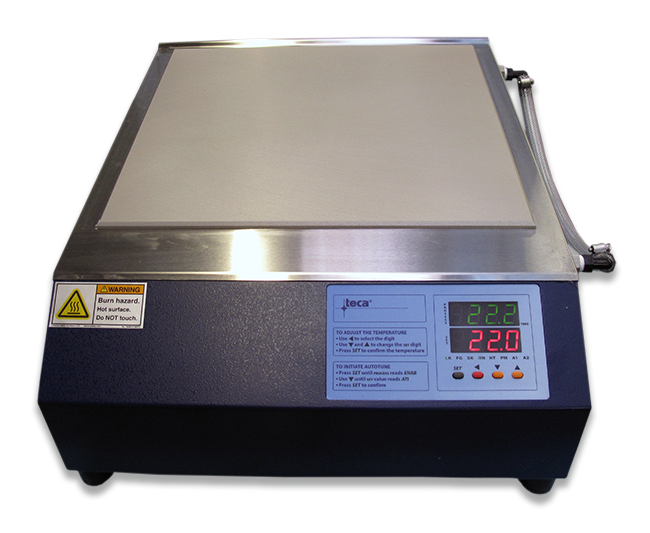

Liquid Cooled Thermoelectric Cold Plate For Laboratory
Style: Bench Top, Laboratory
Voltage: 240 VAC
Current: 8 AMPS
Operating Ambient: 0/+50 °C
Performance Rating:
Cooling Capacity: 800 WATTS
Cooling COP: 0.42
Heating Capacity: 1900 WATTS
Minimum Coolant Flow:1 liter/minIncludes:
• Integral Power Supply
• Integral PWM Temperature control
• USB comms port
• Remote SensibilityController Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Temperature zone with 4 independent PID settings
• Multi-segment ramp and soak programmable
• Internal RTD sensor
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB Communication with easy to use software
• Labview VI examples- Click on the part numbers to request a quick quote:
* For use with low temperature cascadesMODEL NUMBER PART NUMBER COLD PLATE SURFACE VOLTAGE
VAC (VDC)CURRENT
AMPSCOLD PLATE
TEMP. RANGE °CLHP-1800CPV 3-05KB-1-0A0
Smooth surface 240 8 -30 / +90 LHP-1800CPV 3-05KB-1-TAP
6-32 Tap pattern 240 8 -30 / +90 LHP-1800CPV 3-05KB-1-MET
M3 Tap pattern 240 8 -30/ +90 LHP-1800CPV 3-05KB-6-0A0
Smooth surface 240 8 -30 / +120 LHP-1800CPV 3-05KB-6-TAP
6-32 Tap pattern 240 8 -30 / +120 LHP-1800CPV 3-05KB-6-MET
M3 Tap pattern 240 8 -30 / +120 - Click to open PDF performance curves:
Click to open files:
- Click to download:
Solid Model files:
Product Manuals, Software:
- https://www.thermoelectric.com/2016/wp-admin/edit.php?post_type=page
Part Number Description For use with cold plate series Drawing/Picture Data Sheet C-1800 Clear Cover
Material: Clear Acrylic
Size: 15" X 15" X 5"AHP-1800CPV
AHP-1200DCP
CN-1800 Clear Cover
Material: Clear Acrylic
Size: 15" X 15" X 5"AHP-1800CPV with ACP-1800 CH-1800 Clear Cover With Hinge
Material: Clear Acrylic
Size: 16" X 16"" X 5"AHP-1800CPV
AHP-1200DCP
CHN-1800 Clear Cover With Hinge
Material: Clear Acrylic
Size: 16" X 16"" X 5"AHP-1800CPV with ACP-1800 BH-1800 Barrier
Material: Clear Acrylic
Size: 14.2" X 13.7" X H (height)
Part Number: BH-1800 (H = height in inches 3", 6", 9" standard)
example B6-1200, B9-1200AHP-1800CPV Thermocouple-Ring "T" Type thermocouple
6' long, surface mount
LHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
RTD-Ring Three wire RTD, 100 Ω with connector
6' long, surface mountLHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
RTD-Probe Three wire RTD, 100 Ω with connector
6' long, 1/8" DIA probeLHP-150CP, LHP-300CP, LHP-800CP, LHP-1200CP, AHP-250CP, AHP-270CP, AHP-400CP, AHP-500CP, AHP-690CP, AHP-1200CP
Features:
• Precision machined anodized aluminum cold plate surface
• Easy clean stainless steel apron
• Cools and heats (-30 °C to 90 °C & 130 °C)
• Low-profile design with ergonomic sloped front

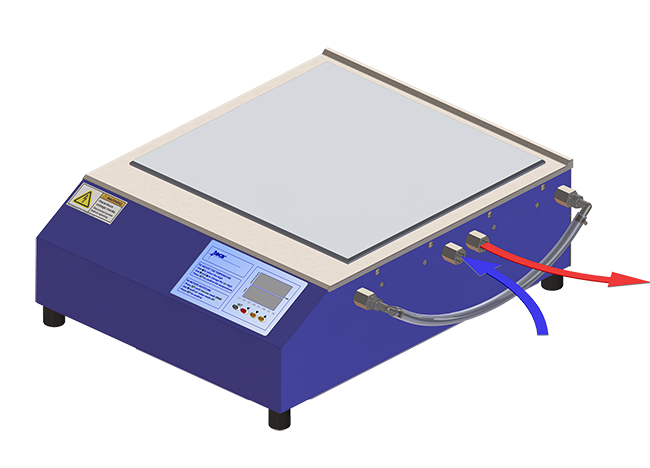

• Easy access coolant fluid ports
• Weighs less than 55 lbs. (25 kg)
• Bench top unit, 15.2” X 19.2” footprint
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Stainless Steel threaded inserts available
• Machinable feature plate and cover accessories
