AHP-3259

High Capacity Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 100-240 VAC
    Current: 11-4.6 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     2400 BTU/HR
    Cooling (Din 3168): 705 WATTS
    Cooling COP (at L35 L35): 0.64
    Heating (Traditional): >1200 BTU/HR
    Heating (Din 3168): >352 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-32590-I5JB-0-000
    		Cool onlyTC-4FNEMA-12, IP 52
    AHP-32590-I55B-0-000
    		Cool only5-32 VDC external signalNEMA-12, IP 52
    AHP-3259HC0-I5IB-1-000
    		Heat/CoolTC-7FNEMA-12, IP 52
    AHP-3259HC0-I55B-1-000
    		Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    AHP-3259XE0-I5JB-4-000
    		Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-3259XE0-I55B-4-000
    		Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-3259XEHC0-I5IB-5-000
    		Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-3259XEHC0-I55B-5-000
    		Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-3259HC0-I5LB-5-000
    		Heat/CoolTC-5300D PWM controlNEMA-12, IP 52
    AHP-3259XEHC0-I5LB-5-000
    		Heat/CoolTC-5300D PWM controlNEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 3259 8:36 am 11/04/201665.1M

    PDF    		AHP 3259 8:35 am 11/04/20165.6M

    SLDP    		AHP 3259 8:36 am 11/04/201620.8M

    STEP    		AHP 3259 8:36 am 11/04/201641M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• 90-264 VAC Universal input power supply
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 82 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-2259 High Capacity

High Capacity Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 100-240 VAC
    Current: 8.4-3.5 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     1820 BTU/HR
    Cooling (Din 3168): 534 WATTS
    Cooling COP (at L35 L35): 0.65
    Heating (Traditional): >2780 BTU/HR
    Heating (Din 3168): >816 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-22590-H5JB-0-000
    		Cool onlyTC-4FNEMA-12, IP 52
    AHP-22590-H55B-0-000
    		Cool only5-32 VDC external signalNEMA-12, IP 52
    AHP-2259HC0-H5IB-1-000
    		Heat/CoolTC-7FNEMA-12, IP 52
    AHP-2259HC0-H55B-1-000
    		Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    AHP-2259XE0-H5JB-4-000
    		Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-2259XE0-H55B-4-000
    		Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-2259XEHC0-H5IB-5-000
    		Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-2259XEHC0-H55B-5-000
    		Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 2259 8:52 am 09/01/201650.6M

    PDF    		AHP 2259 8:52 am 09/01/20162.2M

    SLDP    		AHP 2259 8:52 am 09/01/201615.5M

    STEP    		AHP 2259 8:53 am 09/01/201632.1M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-2200Drip pan, vertical cold side finsAHP-2200dwgpdf
    DHA-2200Drip pan, horizontal cold side finsAHP-2200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• 90-264 VAC Universal input power supply
• High efficiency thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 60 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-2259 High Efficiency

High Efficiency Thermoelectric Cabinet Cooler

Cabinet Cooler for NEMA-12/4/4X, 1330 BTU/HR (390 watts) As much as 10% increased efficiency in high ambient temperatures:

For thermoelectric climate control of NEMA-12/4/4X cabinets, the AHP-2259-Series is an advanced, high efficiency thermoelectric cooler/heater. The AHP-2259-Series is a Peltier air conditioner designed to protect electronics equipment boxes. Thermoelectric cooling technology reliably works to cool electronic controls, electrical equipment, cabinet controls, and other heat sensitive equipment. Ideal for industrial or harsh military environments. ECO-Mode temperature control feature helps save on power use.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric TECA air conditioners for superior performance and reliable climate control.

  • Mounting Style: Through Mounted

    Voltage: 100-240 VAC
    Current: 4.5-1.8 AMPS
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):     1330 BTU/HR
    Cooling (Din 3168): 390 WATTS
    Cooling COP (at L35 L35): 0.87
    Heating (Traditional): >980 BTU/HR
    Heating (Din 3168): >290 WATTS
    Heating COP: >1.0

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-22590-H4JB-0-000
    		Cool onlyTC-4FNEMA-12, IP 52
    AHP-22590-H45B-0-000
    		Cool only5-32 VDC external signalNEMA-12, IP 52
    AHP-2259HC0-H4IB-1-000
    		Heat/CoolTC-7FNEMA-12, IP 52
    AHP-2259HC0-H45B-1-000
    		Heat/Cool5-32 VDC external signalNEMA-12, IP 52
    AHP-2259XE0-H4JB-4-000
    		Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-2259XE0-H45B-4-000
    		Cool only5-32 VDC external signalNEMA-4/4X, IP 56
    AHP-2259XEHC0-H4IB-5-000
    		Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-2259XEHC0-H45B-5-000
    		Heat/Cool5-32 VDC external signalNEMA-4/4X, IP 56
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 2259 8:52 am 09/01/201650.6M

    PDF    		AHP 2259 8:52 am 09/01/20162.2M

    SLDP    		AHP 2259 8:52 am 09/01/201615.5M

    STEP    		AHP 2259 8:53 am 09/01/201632.1M
    Product Manuals:
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC    		dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC    		dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC    		dwgpdf
    DVA-2200Drip pan, vertical cold side finsAHP-2200dwgpdf
    DHA-2200Drip pan, horizontal cold side finsAHP-2200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC    		pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC    		pdf

Features:
• 90-264 VAC Universal input power supply
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 55 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-450 Series

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 53 Watts (197 BTU/HR):

TECA’s FHP-450 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-450 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

fhp-400-pic
fhp-400-app


  • Mounting Style: Flush Mounted
    Voltage: 24 VDC (12 VDC configuration available)
    Current: 2.3 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:Cooling (Traditional): 197 BTU/HR
    Cooling (Din 3168): 53 WATTS
    Cooling COP (at L35 L35): 0.96
    Heating (Traditional): > 188 BTU/HR
    Heating (Din 3168): > 55 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    FHP-4507-F0J5-0-000
    		Cool onlyTC-4FIndoors
    FHP-450HC7-F095-1-000
    		Heat/CoolNoneIndoors
    FHP-450HC7-F0I5-1-000
    		Heat/CoolTC-7FIndoors
    FHP-450XE7-F0J5-4-000
    		Cool onlyTC-4FOutdoors
    FHP-450XEHC7-F095-5-000
    		Heat/CoolNoneOutdoors
    FHP-450XEHC7-F0I5-5-000
    		Heat/CoolTC-7FOutdoors
    FHP-450X7-F0J5-2-000
    		Cool onlyTC-4FOutdoors/Military
    FHP-450XHC7-F0F5-3-000
    		Heat/CoolNoneOutdoors/Military
    FHP-450XHC7-F0I5-3-000
    		Heat/CoolTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		Fhp 400-500 9:21 am 09/01/201611.2M

    SLDP    		Fhp 400-500 9:21 am 09/01/20161.7M

    STEP    		Fhp 400-500 9:22 am 09/01/20165.5M

    dwg    		Fhp 400-500 9:21 am 09/01/20161.4M

    pdf    		Fhp 400-500 9:21 am 09/01/20164.4M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.97”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-401 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 65 Watts (220 BTU/HR):

TECA’s AHP-401 Series air conditioner protects electronics equipment from overheating. Utilizing AC input voltage and reliable thermoelectric cooling technology, AHP-401 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

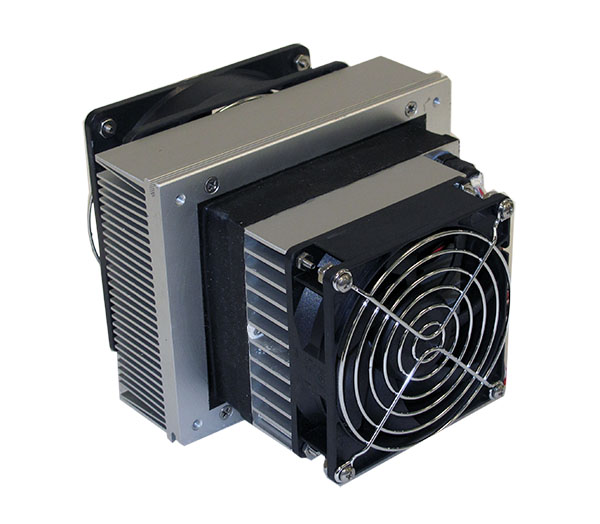

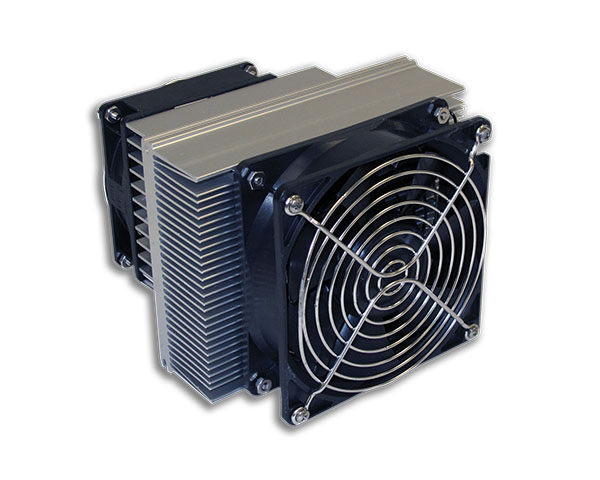

ahp-400-pic

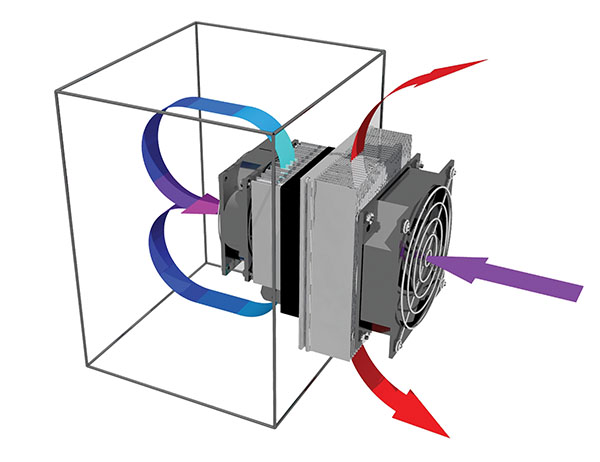

ahp-400-app


  • Mounting Style: Through Mounted
    Voltage: 120 VAC, 240 VAC
    Current: 1.2 AMPS, 0.65 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional): 220 BTU/HR
    Cooling (Din 3168): 65 WATTS
    Cooling COP (at L35 L35): 0.45

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Integral power input cord

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VACCURRENT AMPS
    AHP-4010-F090-0-001
    		Cool onlyNone1201.2
    AHP-4010-F0F0-0-001
    		Cool onlyTC-1F1201.2
    AHP-4010-F050-0-001
    		Cool only5-32 VDC external signal1201.2
    AHP-401HC0-F030-1-001
    		Heat/CoolTC-3F1201.2
    AHP-4020-F092-0-001
    		Cool onlyNone2400.65
    AHP-4020-F0F2-0-001
    		Cool onlyTC-1F2400.65
    AHP-4020-F052-0-001
    		Cool only5-32 VDC external signal2400.65
    AHP-402HC0-F032-1-001
    		Heat/CoolTC-3F2400.65
  • Click to open PDF performance curves:
    Click to open files:

  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    pdf    		AHP 401-451 9:02 am 09/01/20163.3M

    IGS    		Ahp 401-451 9:02 am 09/01/201621.2M

    SLDP    		Ahp 401-451 9:02 am 09/01/20162.8M

    STEP    		Ahp 401-451 9:02 am 09/01/20167.9M

    dwg    		Ahp 401-451 9:02 am 09/01/20161.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Suitable for NEMA-12 (IP 52) environment
• Easy to use Pivot Clean feature
• Operating ambient temperature range -40/+70 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 16 LBS

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-590 Series

Compact Thermoelectric Air Conditioner

Weatherproof Enclosure Cooling for NEMA-12, NEMA-4/4X & Harsh/Mil Duty 460 BTU/HR (137 watts), For DC Input Voltage:

The AHP-590 Series thermoelectric air conditioner climate controls electronics equipment from overheating. Utilizing reliable Peltier cooling technology, AHP-590 coolers protect NEMA railway equipment boxes, alarms, electronic controls, electrical equipment, cabinets, and other heat sensitive equipment.

For small to medium enclosure cooling jobs, TECA’s 24 vdc and 48 vdc input coolers are ideal. The AHP-590 is available for 24 vdc or 48 vdc, allowing for the use of reliable, low maintenance thermoelectric cooling technology in more applications. Cool and maintain weatherproof NEMA-12/4/4X enclosure ratings and Harsh/Mil Duty enclosure ratings in industries such as communications, military, kiosk, surveillance, food and beverage, transit, coatings, railway, and more. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. When installed correctly, TECA air conditioners create a closed loop system with no ambient air entering the enclosure.

ahp-400-pic
ahp-400-app


  • Mounting Style: Through Mounted

    Voltage: 24 VDC, 48 VDC
    Current: 6.9 AMPS, 3.5 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     460 BTU/HR
    Cooling (Din 3168): 137 WATTS
    Cooling COP (at L35 L35): 0.85
    Heating (Traditional): > 562 BTU/HR
    Heating (Din 3168): > 165 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    Active Cooling: 35 °C
    Heat Exchanger (ECO-Mode): 25 °C
    Active Heating: 10 °C
    Typical Hysteresis: 5 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESVOLTAGE
    VDC    		CURRENT
    AMPS    		CONTROLLERENVIRONMENT
    AHP-5900-G0J5-0-001
    		Cool only246.9TC-4FIndoors
    AHP-5900-G0J6-0-001
    		Cool only483.5TC-4FIndoors
    AHP-590HC0-G095-1-001
    		Heat/Cool246.9NoneIndoors
    AHP-590HC0-G096-1-001
    		Heat/Cool483.5NoneIndoors
    AHP-590HC0-G0I5-1-001
    		Heat/Cool246.9TC-7FIndoors
    AHP-590HC0-G0I6-1-001
    		Heat/Cool483.5TC-7FIndoors
    AHP-590XE0-G0J5-4-001
    		Cool only246.9TC-4FOutdoors
    AHP-590XE0-G0J6-4-001
    		Cool only483.5TC-4FOutdoors
    AHP-590XEHC0-G095-5-001
    		Heat/Cool246.9NoneOutdoors
    AHP-590XEHC0-G096-5-001
    		Heat/Cool483.5NoneOutdoors
    AHP-590XEHC0-G0I5-5-001
    		Heat/Cool246.9TC-7FOutdoors
    AHP-590XEHC0-G0I6-5-001
    		Heat/Cool483.5TC-7FOutdoors
    AHP-590X0-G0J5-2-001
    		Cool only246.9TC-4FOutdoors/Military
    AHP-590X0-G0J6-2-001
    		Cool only483.5TC-4FOutdoors/Military
    AHP-590XHC0-G095-3-001
    		Heat/Cool246.9NoneOutdoors/Military
    AHP-590XHC0-G096-3-001
    		Heat/Cool483.5NoneOutdoors/Military
    AHP-590XHC0-G0I5-3-001
    		Heat/Cool246.9TC-7FOutdoors/Military
    AHP-590XHC0-G0I6-3-001
    		Heat/Cool483.5TC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    SLDP    		Ahp 400 9:01 am 09/01/20162.6M

    IGS    		Ahp 400-500 9:01 am 09/01/201620.5M

    STEP    		Ahp 400-500 9:01 am 09/01/20168.1M

    dwg    		Ahp 400-500 9:01 am 09/01/2016845.8k

    pdf    		Ahp 400-500 9:01 am 09/01/20163.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf
Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-470 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  95 Watts (315 BTU/HR):

TECA’s AHP-470 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-470 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

ahp-400-pic
ahp-400-app


  • Mounting Style: Through Mounted

    Voltage: 24 VDC (12 VDC configuration available)
    Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional): 315 BTU/HR
    Cooling (Din 3168): 95 WATTS
    Cooling COP (at L35 L35): 0.56
    Heating (Traditional): > 572 BTU/HR
    Heating (Din 3168): > 168 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-4700-F0J5-0-001
    		Cool onlyTC-4FIndoors
    AHP-470HC0-F095-1-001
    		Heat/CoolNoneIndoors
    AHP-470HC0-F0I5-1-001
    		Heat/CoolTC-7FIndoors
    AHP-470XE0-F0J5-4-001
    		Cool onlyTC-4FOutdoors
    AHP-470XEHC0-F095-5-001
    		Heat/CoolNoneOutdoors
    AHP-470XEHC0-F0I5-5-001
    		Heat/CoolTC-7FOutdoors
    AHP-470X0-F0J5-2-001
    		Cool onlyTC-4FOutdoors/Military
    AHP-470XHC0-F095-3-001
    		Heat/CoolNoneOutdoors/Military
    AHP-470XHC0-F0I5-3-001
    		Heat/CoolTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    SLDP    		Ahp 400 9:01 am 09/01/20162.6M

    IGS    		Ahp 400-500 9:01 am 09/01/201620.5M

    STEP    		Ahp 400-500 9:01 am 09/01/20168.1M

    dwg    		Ahp 400-500 9:01 am 09/01/2016845.8k

    pdf    		Ahp 400-500 9:01 am 09/01/20163.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-450 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 62 Watts (207 BTU/HR):

TECA’s AHP-450 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-450 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

ahp-400-pic
ahp-400-app


  • Mounting Style: Through Mounted
    Voltage: 24 VDC (12 VDC configuration available)
    Current: 2.3 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     207 BTU/HR
    Cooling (Din 3168): 62 WATTS
    Cooling COP (at L35 L35): 1.12
    Heating (Traditional): 188 BTU/HR
    Heating (Din 3168): 55 WATTS
    Heating COP: 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-4500-F0J5-0-000
    		Cool onlyTC-4FIndoors
    AHP-450HC0-F095-1-000
    		Heat/CoolNoneIndoors
    AHP-450HC0-F0I5-1-000
    		Heat/CoolTC-7FIndoors
    AHP-450XE0-F0J5-4-000
    		Cool onlyTC-4FOutdoors
    AHP-450XEHC0-F095-5-000
    		Heat/CoolNoneOutdoors
    AHP-450XEHC0-F0I5-5-000
    		Heat/CoolTC-7FOutdoors
    AHP-450X0-F0J5-2-000
    		Cool onlyTC-4FOutdoors/Military
    AHP-450XHC0-F095-3-000
    		Heat/CoolNoneOutdoors/Military
    AHP-450XHC0-F0I5-3-000
    		Heat/CoolTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    SLDP    		Ahp 400 9:01 am 09/01/20162.6M

    IGS    		Ahp 400-500 9:01 am 09/01/201620.5M

    STEP    		Ahp 400-500 9:01 am 09/01/20168.1M

    dwg    		Ahp 400-500 9:01 am 09/01/2016845.8k

    pdf    		Ahp 400-500 9:01 am 09/01/20163.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-270 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  47 Watts (161 BTU/HR):

TECA’s AHP-270 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-270 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

ahp-250-270-pic
ahp-250-270-pic-2
ahp-250-270-airflow


  • Mounting Style: Through Mounted

    Voltage: 12 VDC, 24 VDC
    Current: 8.3 AMPS, 4.1 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     161 BTU/HR
    Cooling (Din 3168): 47 WATTS
    Cooling COP (at L35 L35): 0.46

    Includes:
    • Mounting gasket
    • Mounting hardware
    • Power input leads


  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERENVIRONMENTINTEGRAL
    CONTROLLER    		VOLTAGE VDCCURRENT AMPS
    AHP-270FFHC0-L094-1-001 IndoorsNone128.3
    AHP-270FFHC0-L095-1-001 IndoorsNone244.1
    AHP-270FF0-L0J4-0-001 IndoorsTC-4F128.3
    AHP-270FF0-L0J5-0-001 IndoorsTC-4F244.1
    AHP-270FFHC0-L0I4-1-001 IndoorsTC-7F128.3
    AHP-270FFHC0-L0I5-1-001 IndoorsTC-7F244.1
    AHP-270XEHC0-L094-5-001
    		OutdoorsNone128.3
    AHP-270XEHC0-L095-5-001
    		OutdoorsNone244.1
    AHP-270XE0-L0J4-4-001
    		OutdoorsTC-4F128.3
    AHP-270XE0-L0J5-4-001
    		OutdoorsTC-4F244.1
    AHP-270XEHC0-L0I4-5-001
    		OutdoorsTC-7F128.3
    AHP-270XEHC0-L0I5-5-001
    		OutdoorsTC-7F244.1
    AHP-270XHC0-L094-3-001
    		Outdoors/MilitaryNone128.3
    AHP-270XHC0-L095-3-001
    		Outdoors/MilitaryNone244.1
    AHP-270X0-L0J4-2-001
    		Outdoors/MilitaryTC-4F128.3
    AHP-270X0-L0J5-2-001
    		Outdoors/MilitaryTC-4F244.1
    AHP-270XHC0-L0I4-3-001
    		Outdoors/MilitaryTC-7F128.3
    AHP-270XHC0-L0I5-3-001
    		Outdoors/MilitaryTC-7F244.1
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 250 8:55 am 09/01/20169.2M

    SLDP    		AHP 250 8:55 am 09/01/20161.9M

    STEP    		AHP 250 8:55 am 09/01/20163.7M

    dwg    		AHP 250 8:55 am 09/01/2016758.9k

    pdf    		AHP 250-270 8:55 am 09/01/20163.3M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    CR-250Brush finished stainless steel coverdwg
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 12 VDC    		pdf

Features:
• Compact (only 6” X 4.75” X 6.6”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 4.4 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-250 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  38 Watts (129 BTU/HR):

TECA’s AHP-250 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-250 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

ahp-250-270-pic
ahp-250-270-pic-2
ahp-250-270-airflow


  • Mounting Style: Through Mounted

    Voltage: 12 VDC, 24 VDC
    Current: 6 AMPS, 3 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     129 BTU/HR
    Cooling (Din 3168): 38 WATTS
    Cooling COP (at L35 L35): 0.53

    Includes:
    • Mounting gasket
    • Mounting hardware
    • Power input leads


  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERENVIRONMENTINTEGRAL
    CONTROLLER    		VOLTAGE VDCCURRENT AMPS
    AHP-250FFHC0-L094-1-000 IndoorsNone126
    AHP-250FFHC0-L095-1-000 IndoorsNone243
    AHP-250FF0-L0J4-0-000 IndoorsTC-4F126
    AHP-250FF0-L0J5-0-000 IndoorsTC-4F243
    AHP-250FFHC0-L0I4-1-000 IndoorsTC-7F126
    AHP-250FFHC0-L0I5-1-000 IndoorsTC-7F243
    AHP-250XEHC0-L094-5-000
    		OutdoorsNone126
    AHP-250XEHC0-L095-5-000
    		OutdoorsNone243
    AHP-250XE0-L0J4-4-000
    		OutdoorsTC-4F126
    AHP-250XE0-L0J5-4-000
    		OutdoorsTC-4F243
    AHP-250XEHC0-L0I4-5-000
    		OutdoorsTC-7F126
    AHP-250XEHC0-L0I5-5-000
    		OutdoorsTC-7F243
    AHP-250XHC0-L094-3-000
    		Outdoors/MilitaryNone126
    AHP-250XHC0-L095-3-000
    		Outdoors/MilitaryNone243
    AHP-250X0-L0J4-2-000
    		Outdoors/MilitaryTC-4F126
    AHP-250X0-L0J5-2-000
    		Outdoors/MilitaryTC-4F243
    AHP-250XHC0-L0I4-3-000
    		Outdoors/MilitaryTC-7F126
    AHP-250XHC0-L0I5-3-000
    		Outdoors/MilitaryTC-7F243
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 250 8:55 am 09/01/20169.2M

    SLDP    		AHP 250 8:55 am 09/01/20161.9M

    STEP    		AHP 250 8:55 am 09/01/20163.7M

    dwg    		AHP 250 8:55 am 09/01/2016758.9k

    pdf    		AHP 250-270 8:55 am 09/01/20163.3M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    CR-250Brush finished stainless steel coverdwg
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 12 VDC    		pdf

Features:
• Compact (only 6” X 4.75” X 6.6”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 4.4 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

Quarterly eNewsletter
