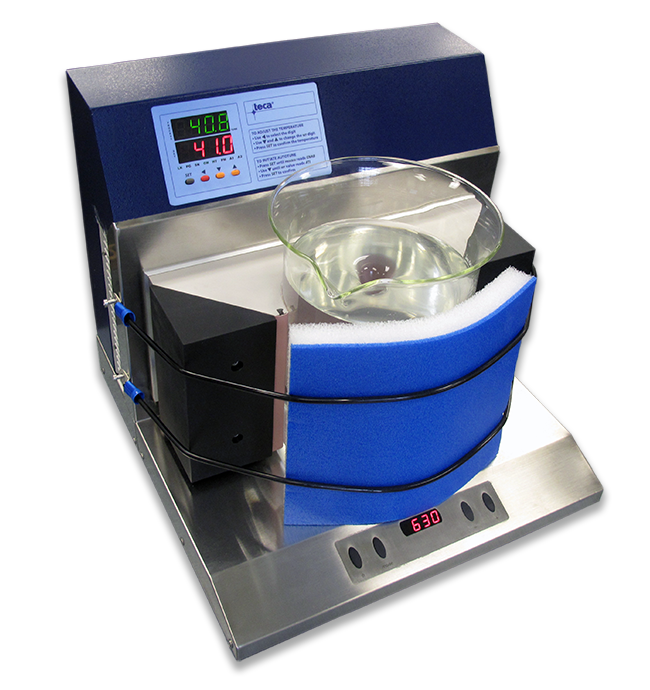

Magnetic Stirring Cold/Hot Plate For Laboratory Use
Style: Bench Top, Laboratory
Voltage: 100-240 VAC
Current: 6.0-2.5 AMPS
Operating Ambient: 0/+45 °C
Requirements:
The AHP-1200MSP must be used with one of the SLV-XXXMSP Sleeve accessories.
• SLV-XXXMSP sleeve accessory for direct contact cooling/heating of specific beakers and vessels.Includes:
• Integral Power Supply
• Integral PWM Temperature control
• USB comms port
• Remote SensibilityController Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Temperature zone with 4 independent PID settings
• Multi-segment ramp and soak programmable
• Internal RTD sensor
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB Communication with easy-to-use software
• Labview VI examples- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER VOLTAGE
VAC (VDC)CURRENT
AMPSAHP-1200MSP 9-35KB-1-MSP
100-240 6.0 - 2.5 The AHP-1200MSP must be used with one of the SLV-XXXMSP Cold Shoe accessories.
SLV-XXXMSP Sleeve accessories part numbers and specifications:
PART NUMBER BEAKER
TYPEVOLUME
mLBEAKER DIAMETER
in [mm]BEAKER
Height
in [mm]SLV-1000LMSP Griffin Low Form 1000 4.25 [108] 6.2 [158] SLV-1000HMSP Berzelius Tall Form 1000 3.5 [89] 7.36 [187] SLV-1500MSP Griffin Low Form 1500 4.76 [121] 6.5 [166] SLV-2000MSP Griffin Low Form 2000 5.16 [131] 7.6 [193] SLV-3000MSP Griffin Low Form 3000 5.75 [146] 8.5 [216] SLV-4000MSP Griffin Low Form 4000 6.3 [160] 9.8 [250] SLV-5000MSP Griffin Low Form 5000 6.7 [170] 10.6 [270] - Click to open files:
- Click to download:
Solid Model files:
Product Manuals, Software:
PART NUMBER BEAKER
TYPEVOLUME
mLBEAKER DIAMETER
in [mm]BEAKER
Height
in [mm]SLV-1000LMSP Griffin Low Form 1000 4.25 [108] 6.2 [158] SLV-1000HMSP Berzelius Tall Form 1000 3.5 [89] 7.36 [187] SLV-1500MSP Griffin Low Form 1500 4.76 [121] 6.5 [166] SLV-2000MSP Griffin Low Form 2000 5.16 [131] 7.6 [193] SLV-3000MSP Griffin Low Form 3000 5.75 [146] 8.5 [216] SLV-4000MSP Griffin Low Form 4000 6.3 [160] 9.8 [250] SLV-5000MSP Griffin Low Form 5000 6.7 [170] 10.6 [270] Features:
• PWM temperature control
• Fluid process temperature range from 0 °C to 50 °C
• Internal and external RTD sensor
• Adjustable stirring from 100 to 1000 RPM
• Accommodates many vessel sizes
• Stainless steel, aluminum, and acrylic construction
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
Resources:
- Click to download:
AHP-301MSP Magnetic Stirring Cold/Hot Plate
Magnetic Stirring Cold/Hot Plate For Laboratory Use
Style: Bench Top, Laboratory
Voltage: 100-240 VAC
Current: 2.2-1.0 AMPS
Operating Ambient: 0/+45 °C
Requirements:
The AHP-301MSP must be used with one of the SLV-XXXMSP Cold Shoe accessories.
• SLV-XXXMSP Sleeve accessory for direct contact cooling/heating of specific beakers and vessels.Includes:
• Integral Power Supply
• Integral PWM Temperature control
• USB comms port
• Remote SensibilityController Features:
• Integral “tunable” PWM temperature control
• PWM, Bi-directional temperature control
• 4 Temperature zone with 4 independent PID settings
• Multi-segment ramp and soak programmable
• Internal RTD sensor
• Remote Sensibility™ switchable to exterior accessory RTD sensor
• USB Communication with easy-to-use software
• Labview VI examples- Click on the part numbers to request a quick quote:
MODEL NUMBER PART NUMBER VOLTAGE
VAC (VDC)CURRENT
AMPSAHP-301MSP 9-70KB-1-MSP
100-240 2.2-1.0 The AHP-301MSP must be used with one of the SLV-XXXMSP Cold Shoe accessories.
SLV-XXXMSP Sleeve accessories part numbers and specifications:
PART NUMBER BEAKER
TYPEVOLUME
mLDIAMETER
in [mm]TT PAD
RQD.SLV-600MSP Griffin Low Form 600 3.54 [90] _ Griffin Low Form 500 3.35 [85] TT-G500 Berzelius Tall Form 800 3.54 [90] TT-B800 SLV-400MSP Griffin Low Form 400 3.15 [80] _ Berzelius Tall Form 500 3.11 [79] TT-B500 Berzelius Tall Form 600 3.15 [80] TT-B600 SLV-250MSP Griffin Low Form 250 2.75 [70] _ Berzelius Tall Form 400 2.75 [70] TT-B400 SLV-150MSP Griffin Low Form 150 2.36 [60] _ Berzelius Tall Form 250 2.36 [60] TT-B250 SLV-100MSP Griffin Low Form 100 1.97 [50] _ Berzelius Tall Form 100 1.89 [48] TT-B100 - Click to open files:
- Click to download:
Solid Model files:
Product Manuals, Software:
PART NUMBER BEAKER
TYPEVOLUME
mLDIAMETER
in [mm]TT PAD
RQD.SLV-600MSP Griffin Low Form 600 3.54 [90] _ Griffin Low Form 500 3.35 [85] TT-G500 Berzelius Tall Form 800 3.54 [90] TT-B800 SLV-400MSP Griffin Low Form 400 3.15 [80] _ Berzelius Tall Form 500 3.11 [79] TT-B500 Berzelius Tall Form 600 3.15 [80] TT-B600 SLV-250MSP Griffin Low Form 250 2.75 [70] _ Berzelius Tall Form 400 2.75 [70] TT-B400 SLV-150MSP Griffin Low Form 150 2.36 [60] _ Berzelius Tall Form 250 2.36 [60] TT-B250 SLV-100MSP Griffin Low Form 100 1.97 [50] _ Berzelius Tall Form 100 1.89 [48] TT-B100 Features:
• PWM temperature control
• Fluid process temperature range 0 °C to 50 °C
• Internal and external RTD sensor
• Adjustable stirring from 100 to 1000 RPM
• Accommodates many vessel sizes
• Stainless steel, aluminum and acrylic construction
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
