IHP-590 Series

Compact Internal Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  92 Watts (315 BTU/HR):

TECA’s IHP-590 Series air conditioner cools electrical cabinets and enclosures, protecting heat sensitive equipment from overheating. Utilizing reliable thermoelectric cooling technology, IHP-590 air conditioners are suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as kiosk, communications, surveillance, food and beverage, transit, military and more. Internally mounted design offers closed loop cooling without cooling equipment extruding into the ambient. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

IHP pic
IHP Encl
IHP air flow


  • Mounting Style: Internal Mounted

    Voltage: 24 VDC
    Current: 6.9 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     315 BTU/HR
    Cooling (Din 3168): 92 WATTS
    Cooling COP (at L35 L35): 0.56
    Heating (Traditional): > 562 BTU/HR
    Heating (Din 3168): > 165 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESINSTALLATION STYLECONTROLLERENVIRONMENT
    IHP-590B-G0J5-0-001
    		Cool onlyATC-4FIndoors
    IHP-590B-G0J5-0-101
    		Cool onlyBTC-4FIndoors
    IHP-590HCB-G095-1-001
    		Heat/CoolANoneIndoors
    IHP-590HCB-G095-1-101
    		Heat/CoolBNoneIndoors
    IHP-590HCB-G0I5-1-001
    		Heat/CoolATC-7FIndoors
    IHP-590HCB-G0I5-1-101
    		Heat/CoolBTC-7FIndoors
    IHP-590XEB-G0J5-4-001
    		Cool onlyATC-4FOutdoors
    IHP-590XEB-G0J5-4-101
    		Cool onlyBTC-4FOutdoors
    IHP-590XEHCB-G095-5-001
    		Heat/CoolANoneOutdoors
    IHP-590XEHCB-G095-5-101
    		Heat/CoolBNoneOutdoors
    IHP-590XEHCB-G0I5-5-001
    		Heat/CoolATC-7FOutdoors
    IHP-590XEHCB-G0I5-5-101
    		Heat/CoolBTC-7FOutdoors
    IHP-590XB-G0J5-2-001
    		Cool onlyATC-4FOutdoors/Military
    IHP-590XB-G0J5-2-101
    		Cool onlyBTC-4FOutdoors/Military
    IHP-590XHCB-G095-3-001
    		Heat/CoolANoneOutdoors/Military
    IHP-590XHCB-G095-3-101
    		Heat/CoolBNoneOutdoors/Military
    IHP-590XHCB-B0I5-3-001
    		Heat/CoolATC-7FOutdoors/Military
    IHP-590XHCB-G0I5-3-101
    		Heat/CoolBTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		IHP 400-500 Style A 9:30 am 09/01/201652.6M

    PDF    		IHP 400-500 Style A 9:30 am 09/01/20163.4M

    SLDP    		IHP 400-500 Style A 9:30 am 09/01/20168.5M

    STEP    		IHP 400-500 Style A 9:30 am 09/01/201625.6M

    IGS    		IHP 400-500 Style B 9:31 am 09/01/201614.6M

    PDF    		IHP 400-500 Style B 9:31 am 09/01/20161.2M

    SLDP    		IHP 400-500 Style B 9:31 am 09/01/20163M

    STEP    		IHP 400-500 Style B 9:31 am 09/01/20168.5M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 17.4” X 8” X 7.8”)
• Mounts and operates in any orientation, inside enclosure
• Available in two installation styles:
– Style A: Installs from inside of the enclosure
– Style B: Installs from outside of the enclosure
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-470 Series

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  80 Watts (259 BTU/HR):

TECA’s FHP-470 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-470 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

fhp-400-pic
fhp-400-app


  • Mounting Style: Flush Mounted

    Voltage: 24 VDC (12 VDC configuration available)
    Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     259 BTU/HR
    Cooling (Din 3168): 80 WATTS
    Cooling COP (at L35 L35): 0.48
    Heating (Traditional): > 572 BTU/HR
    Heating (Din 3168): > 168 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENTSTATUSEQUIVALENT
    FHP-4707-F0J5-0-001
    		Cool onlyTC-4FIndoorsDiscontinued7-F0J5-4-001
    FHP-470HC7-F095-1-001
    		Heat/CoolNoneIndoorsDiscontinued7-F095-5-001
    FHP-470HC7-F0I5-1-001
    		Heat/CoolTC-7FIndoorsDiscontinued7-F0I5-5-001
    FHP-470XE7-F0J5-4-001
    		Cool onlyTC-4FOutdoorsActive
    FHP-470XEHC7-F095-5-001
    		Heat/CoolNoneOutdoorsActive
    FHP-470XEHC7-F0I5-5-001
    		Heat/CoolTC-7FOutdoorsActive
    FHP-470X7-F0J5-2-001
    		Cool onlyTC-4FOutdoors/MilitaryActive
    FHP-470XHC7-F0F5-3-001
    		Heat/CoolNoneOutdoors/MilitaryActive
    FHP-470XHC7-F0I5-3-001
    		Heat/CoolTC-7FOutdoors/MilitaryActive
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		Fhp 400-500 9:21 am 09/01/201611.2M

    SLDP    		Fhp 400-500 9:21 am 09/01/20161.7M

    STEP    		Fhp 400-500 9:22 am 09/01/20165.5M

    dwg    		Fhp 400-500 9:21 am 09/01/20161.4M

    pdf    		Fhp 400-500 9:21 am 09/01/20164.4M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.97”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-450 Series

Compact Flush Mount Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 53 Watts (197 BTU/HR):

TECA’s FHP-450 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-450 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

fhp-400-pic
fhp-400-app


  • Mounting Style: Flush Mounted
    Voltage: 24 VDC (12 VDC configuration available)
    Current: 2.3 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:Cooling (Traditional): 197 BTU/HR
    Cooling (Din 3168): 53 WATTS
    Cooling COP (at L35 L35): 0.96
    Heating (Traditional): > 188 BTU/HR
    Heating (Din 3168): > 55 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    FHP-4507-F0J5-0-000
    		Cool onlyTC-4FIndoors
    FHP-450HC7-F095-1-000
    		Heat/CoolNoneIndoors
    FHP-450HC7-F0I5-1-000
    		Heat/CoolTC-7FIndoors
    FHP-450XE7-F0J5-4-000
    		Cool onlyTC-4FOutdoors
    FHP-450XEHC7-F095-5-000
    		Heat/CoolNoneOutdoors
    FHP-450XEHC7-F0I5-5-000
    		Heat/CoolTC-7FOutdoors
    FHP-450X7-F0J5-2-000
    		Cool onlyTC-4FOutdoors/Military
    FHP-450XHC7-F0F5-3-000
    		Heat/CoolNoneOutdoors/Military
    FHP-450XHC7-F0I5-3-000
    		Heat/CoolTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		Fhp 400-500 9:21 am 09/01/201611.2M

    SLDP    		Fhp 400-500 9:21 am 09/01/20161.7M

    STEP    		Fhp 400-500 9:22 am 09/01/20165.5M

    dwg    		Fhp 400-500 9:21 am 09/01/20161.4M

    pdf    		Fhp 400-500 9:21 am 09/01/20164.4M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.97”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-451 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X  342 BTU/HR (102 watts), For AC Input Voltage:

The AHP-451 Series thermoelectric air conditioner protects NEMA junction box electronics from overheating. Utilizing reliable Peltier cooling technology for climate control, AHP-451 coolers protect electronic controls, electrical equipment, cabinets, and other heat sensitive equipment in many environments. Suitable for NEMA-12 & NEMA-4/4X in industries such as communications, kiosk, surveillance, food and beverage, transit, and more. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.

ahp-400-pic
ahp-400-app


  • Mounting Style: Through Mounted

    Voltage: 120 VAC, 240 VAC
    Current: 1.3 AMPS, 0.7 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X Environment

    Performance Rating:
    Cooling (Traditional): 342 BTU/HR
    Cooling (Din 3168): 102 WATTS
    Cooling COP (at L35 L35): 0.65

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Integral power input cord

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VACCURRENT AMPSENVIRONMENT
    AHP-4510-F090-0-000
    		Cool onlyNone1201.3Indoors
    AHP-4510-F0F0-0-000
    		Cool onlyTC-1F1201.3Indoors
    AHP-4510-F050-0-000
    		Cool only5-32 VDC external signal1201.3Indoors
    AHP-451HC0-F030-1-000
    		Heat/CoolTC-3F1201.3Indoors
    AHP-451XE0-F090-4-000
    		Cool onlyNone1201.3Outdoors
    AHP-451XE0-F0F0-4-000
    		Cool onlyTC-1F1201.3Outdoors
    AHP-451XE0-F050-4-000
    		Cool only5-32 VDC external signal1201.3Outdoors
    AHP-451XEHC0-F030-5-000
    		Heat/CoolTC-3F1201.3Outdoors
    AHP-4520-F092-0-000
    		Cool onlyNone2400.7Indoors
    AHP-4520-F0F2-0-000
    		Cool onlyTC-1F2400.7Indoors
    AHP-4520-F052-0-000
    		Cool only5-32 VDC external signal2400.7Indoors
    AHP-452HC0-F032-1-000
    		Heat/CoolTC-3F2400.7Indoors
    AHP-452XE0-F092-4-000
    		Cool onlyNone2400.7Outdoors
    AHP-452XE0-F0F2-4-000
    		Cool onlyTC-1F2400.7Outdoors
    AHP-452XE0-F052-4-000
    		Cool only5-32 VDC external signal2400.7Outdoors
    AHP-452XEHC0-F032-5-000
    		Heat/CoolTC-3F2400.7Outdoors
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    pdf    		AHP 401-451 9:02 am 09/01/20163.3M

    IGS    		Ahp 401-451 9:02 am 09/01/201621.2M

    SLDP    		Ahp 401-451 9:02 am 09/01/20162.8M

    STEP    		Ahp 401-451 9:02 am 09/01/20167.9M

    dwg    		Ahp 401-451 9:02 am 09/01/20161.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Available for NEMA-12 (IP 52) & NEMA-4 (IP 56) environment
• Easy to use Pivot Clean feature
• Operating ambient temperature range -40/+70 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 16 LBS

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-590 Series

Compact Thermoelectric Air Conditioner

Weatherproof Enclosure Cooling for NEMA-12, NEMA-4/4X & Harsh/Mil Duty 460 BTU/HR (137 watts), For DC Input Voltage:

The AHP-590 Series thermoelectric air conditioner climate controls electronics equipment from overheating. Utilizing reliable Peltier cooling technology, AHP-590 coolers protect NEMA railway equipment boxes, alarms, electronic controls, electrical equipment, cabinets, and other heat sensitive equipment.

For small to medium enclosure cooling jobs, TECA’s 24 vdc and 48 vdc input coolers are ideal. The AHP-590 is available for 24 vdc or 48 vdc, allowing for the use of reliable, low maintenance thermoelectric cooling technology in more applications. Cool and maintain weatherproof NEMA-12/4/4X enclosure ratings and Harsh/Mil Duty enclosure ratings in industries such as communications, military, kiosk, surveillance, food and beverage, transit, coatings, railway, and more. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. When installed correctly, TECA air conditioners create a closed loop system with no ambient air entering the enclosure.

ahp-400-pic
ahp-400-app


  • Mounting Style: Through Mounted

    Voltage: 24 VDC, 48 VDC
    Current: 6.9 AMPS, 3.5 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     460 BTU/HR
    Cooling (Din 3168): 137 WATTS
    Cooling COP (at L35 L35): 0.85
    Heating (Traditional): > 562 BTU/HR
    Heating (Din 3168): > 165 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    Active Cooling: 35 °C
    Heat Exchanger (ECO-Mode): 25 °C
    Active Heating: 10 °C
    Typical Hysteresis: 5 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESVOLTAGE
    VDC    		CURRENT
    AMPS    		CONTROLLERENVIRONMENT
    AHP-5900-G0J5-0-001
    		Cool only246.9TC-4FIndoors
    AHP-5900-G0J6-0-001
    		Cool only483.5TC-4FIndoors
    AHP-590HC0-G095-1-001
    		Heat/Cool246.9NoneIndoors
    AHP-590HC0-G096-1-001
    		Heat/Cool483.5NoneIndoors
    AHP-590HC0-G0I5-1-001
    		Heat/Cool246.9TC-7FIndoors
    AHP-590HC0-G0I6-1-001
    		Heat/Cool483.5TC-7FIndoors
    AHP-590XE0-G0J5-4-001
    		Cool only246.9TC-4FOutdoors
    AHP-590XE0-G0J6-4-001
    		Cool only483.5TC-4FOutdoors
    AHP-590XEHC0-G095-5-001
    		Heat/Cool246.9NoneOutdoors
    AHP-590XEHC0-G096-5-001
    		Heat/Cool483.5NoneOutdoors
    AHP-590XEHC0-G0I5-5-001
    		Heat/Cool246.9TC-7FOutdoors
    AHP-590XEHC0-G0I6-5-001
    		Heat/Cool483.5TC-7FOutdoors
    AHP-590X0-G0J5-2-001
    		Cool only246.9TC-4FOutdoors/Military
    AHP-590X0-G0J6-2-001
    		Cool only483.5TC-4FOutdoors/Military
    AHP-590XHC0-G095-3-001
    		Heat/Cool246.9NoneOutdoors/Military
    AHP-590XHC0-G096-3-001
    		Heat/Cool483.5NoneOutdoors/Military
    AHP-590XHC0-G0I5-3-001
    		Heat/Cool246.9TC-7FOutdoors/Military
    AHP-590XHC0-G0I6-3-001
    		Heat/Cool483.5TC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    SLDP    		Ahp 400 9:01 am 09/01/20162.6M

    IGS    		Ahp 400-500 9:01 am 09/01/201620.5M

    STEP    		Ahp 400-500 9:01 am 09/01/20168.1M

    dwg    		Ahp 400-500 9:01 am 09/01/2016845.8k

    pdf    		Ahp 400-500 9:01 am 09/01/20163.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf
Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-470 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  95 Watts (315 BTU/HR):

TECA’s AHP-470 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-470 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

ahp-400-pic
ahp-400-app


  • Mounting Style: Through Mounted

    Voltage: 24 VDC (12 VDC configuration available)
    Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional): 315 BTU/HR
    Cooling (Din 3168): 95 WATTS
    Cooling COP (at L35 L35): 0.56
    Heating (Traditional): > 572 BTU/HR
    Heating (Din 3168): > 168 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-4700-F0J5-0-001
    		Cool onlyTC-4FIndoors
    AHP-470HC0-F095-1-001
    		Heat/CoolNoneIndoors
    AHP-470HC0-F0I5-1-001
    		Heat/CoolTC-7FIndoors
    AHP-470XE0-F0J5-4-001
    		Cool onlyTC-4FOutdoors
    AHP-470XEHC0-F095-5-001
    		Heat/CoolNoneOutdoors
    AHP-470XEHC0-F0I5-5-001
    		Heat/CoolTC-7FOutdoors
    AHP-470X0-F0J5-2-001
    		Cool onlyTC-4FOutdoors/Military
    AHP-470XHC0-F095-3-001
    		Heat/CoolNoneOutdoors/Military
    AHP-470XHC0-F0I5-3-001
    		Heat/CoolTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    SLDP    		Ahp 400 9:01 am 09/01/20162.6M

    IGS    		Ahp 400-500 9:01 am 09/01/201620.5M

    STEP    		Ahp 400-500 9:01 am 09/01/20168.1M

    dwg    		Ahp 400-500 9:01 am 09/01/2016845.8k

    pdf    		Ahp 400-500 9:01 am 09/01/20163.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-450 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA4X 62 Watts (207 BTU/HR):

TECA’s AHP-450 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-450 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

ahp-400-pic
ahp-400-app


  • Mounting Style: Through Mounted
    Voltage: 24 VDC (12 VDC configuration available)
    Current: 2.3 AMPS, 0.3 AMPS (Eco-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     207 BTU/HR
    Cooling (Din 3168): 62 WATTS
    Cooling COP (at L35 L35): 1.12
    Heating (Traditional): 188 BTU/HR
    Heating (Din 3168): 55 WATTS
    Heating COP: 1.0

    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-4500-F0J5-0-000
    		Cool onlyTC-4FIndoors
    AHP-450HC0-F095-1-000
    		Heat/CoolNoneIndoors
    AHP-450HC0-F0I5-1-000
    		Heat/CoolTC-7FIndoors
    AHP-450XE0-F0J5-4-000
    		Cool onlyTC-4FOutdoors
    AHP-450XEHC0-F095-5-000
    		Heat/CoolNoneOutdoors
    AHP-450XEHC0-F0I5-5-000
    		Heat/CoolTC-7FOutdoors
    AHP-450X0-F0J5-2-000
    		Cool onlyTC-4FOutdoors/Military
    AHP-450XHC0-F095-3-000
    		Heat/CoolNoneOutdoors/Military
    AHP-450XHC0-F0I5-3-000
    		Heat/CoolTC-7FOutdoors/Military
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    SLDP    		Ahp 400 9:01 am 09/01/20162.6M

    IGS    		Ahp 400-500 9:01 am 09/01/201620.5M

    STEP    		Ahp 400-500 9:01 am 09/01/20168.1M

    dwg    		Ahp 400-500 9:01 am 09/01/2016845.8k

    pdf    		Ahp 400-500 9:01 am 09/01/20163.2M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 24 VDC    		pdf
    SP300-12Switching power supply
    300 Watts, 12 VDC    		pdf
    SP300-24Switching power supply
    300 Watts, 24 VDC    		pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-270 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  47 Watts (161 BTU/HR):

TECA’s AHP-270 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-270 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

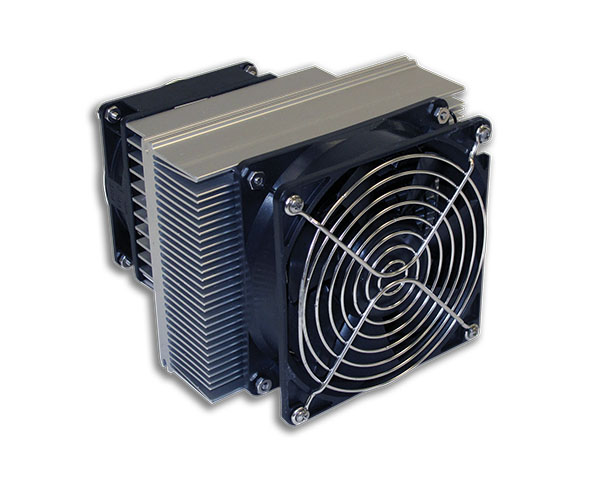

ahp-250-270-pic

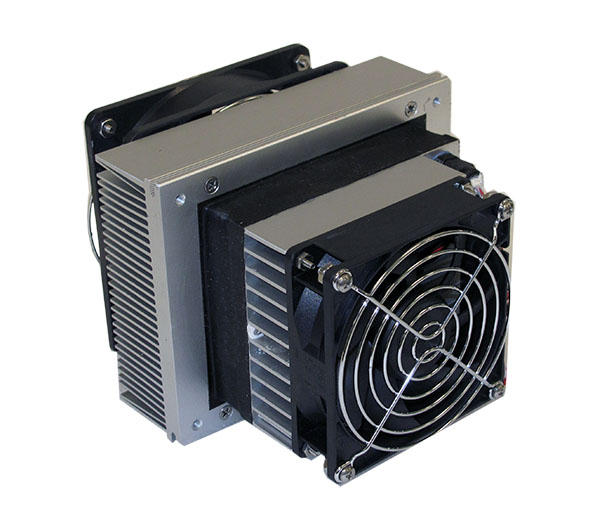

ahp-250-270-pic-2

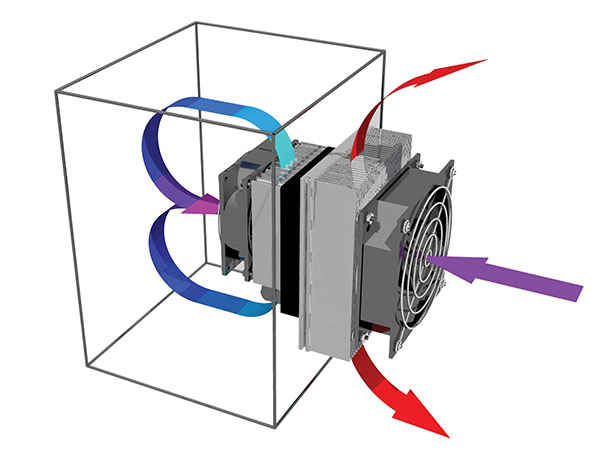

ahp-250-270-airflow


  • Mounting Style: Through Mounted

    Voltage: 12 VDC, 24 VDC
    Current: 8.3 AMPS, 4.1 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     161 BTU/HR
    Cooling (Din 3168): 47 WATTS
    Cooling COP (at L35 L35): 0.46

    Includes:
    • Mounting gasket
    • Mounting hardware
    • Power input leads


  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERENVIRONMENTINTEGRAL
    CONTROLLER    		VOLTAGE VDCCURRENT AMPS
    AHP-270FFHC0-L094-1-001 IndoorsNone128.3
    AHP-270FFHC0-L095-1-001 IndoorsNone244.1
    AHP-270FF0-L0J4-0-001 IndoorsTC-4F128.3
    AHP-270FF0-L0J5-0-001 IndoorsTC-4F244.1
    AHP-270FFHC0-L0I4-1-001 IndoorsTC-7F128.3
    AHP-270FFHC0-L0I5-1-001 IndoorsTC-7F244.1
    AHP-270XEHC0-L094-5-001
    		OutdoorsNone128.3
    AHP-270XEHC0-L095-5-001
    		OutdoorsNone244.1
    AHP-270XE0-L0J4-4-001
    		OutdoorsTC-4F128.3
    AHP-270XE0-L0J5-4-001
    		OutdoorsTC-4F244.1
    AHP-270XEHC0-L0I4-5-001
    		OutdoorsTC-7F128.3
    AHP-270XEHC0-L0I5-5-001
    		OutdoorsTC-7F244.1
    AHP-270XHC0-L094-3-001
    		Outdoors/MilitaryNone128.3
    AHP-270XHC0-L095-3-001
    		Outdoors/MilitaryNone244.1
    AHP-270X0-L0J4-2-001
    		Outdoors/MilitaryTC-4F128.3
    AHP-270X0-L0J5-2-001
    		Outdoors/MilitaryTC-4F244.1
    AHP-270XHC0-L0I4-3-001
    		Outdoors/MilitaryTC-7F128.3
    AHP-270XHC0-L0I5-3-001
    		Outdoors/MilitaryTC-7F244.1
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 250 8:55 am 09/01/20169.2M

    SLDP    		AHP 250 8:55 am 09/01/20161.9M

    STEP    		AHP 250 8:55 am 09/01/20163.7M

    dwg    		AHP 250 8:55 am 09/01/2016758.9k

    pdf    		AHP 250-270 8:55 am 09/01/20163.3M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    CR-250Brush finished stainless steel coverdwg
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 12 VDC    		pdf

Features:
• Compact (only 6” X 4.75” X 6.6”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 4.4 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-250 Series

Compact Thermoelectric Air Conditioner

Enclosure Cooling for NEMA-12, NEMA-4/4X, NEMA-4X/Harsh Environment  38 Watts (129 BTU/HR):

TECA’s AHP-250 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-250 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4/4X, and NEMA-4X/Harsh Environment in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X/Harsh Environment enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.

ahp-250-270-pic
ahp-250-270-pic-2
ahp-250-270-airflow


  • Mounting Style: Through Mounted

    Voltage: 12 VDC, 24 VDC
    Current: 6 AMPS, 3 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):     129 BTU/HR
    Cooling (Din 3168): 38 WATTS
    Cooling COP (at L35 L35): 0.53

    Includes:
    • Mounting gasket
    • Mounting hardware
    • Power input leads


  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERENVIRONMENTINTEGRAL
    CONTROLLER    		VOLTAGE VDCCURRENT AMPS
    AHP-250FFHC0-L094-1-000 IndoorsNone126
    AHP-250FFHC0-L095-1-000 IndoorsNone243
    AHP-250FF0-L0J4-0-000 IndoorsTC-4F126
    AHP-250FF0-L0J5-0-000 IndoorsTC-4F243
    AHP-250FFHC0-L0I4-1-000 IndoorsTC-7F126
    AHP-250FFHC0-L0I5-1-000 IndoorsTC-7F243
    AHP-250XEHC0-L094-5-000
    		OutdoorsNone126
    AHP-250XEHC0-L095-5-000
    		OutdoorsNone243
    AHP-250XE0-L0J4-4-000
    		OutdoorsTC-4F126
    AHP-250XE0-L0J5-4-000
    		OutdoorsTC-4F243
    AHP-250XEHC0-L0I4-5-000
    		OutdoorsTC-7F126
    AHP-250XEHC0-L0I5-5-000
    		OutdoorsTC-7F243
    AHP-250XHC0-L094-3-000
    		Outdoors/MilitaryNone126
    AHP-250XHC0-L095-3-000
    		Outdoors/MilitaryNone243
    AHP-250X0-L0J4-2-000
    		Outdoors/MilitaryTC-4F126
    AHP-250X0-L0J5-2-000
    		Outdoors/MilitaryTC-4F243
    AHP-250XHC0-L0I4-3-000
    		Outdoors/MilitaryTC-7F126
    AHP-250XHC0-L0I5-3-000
    		Outdoors/MilitaryTC-7F243
  • Click to open PDF performance curves:
    Click to open files:
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS    		AHP 250 8:55 am 09/01/20169.2M

    SLDP    		AHP 250 8:55 am 09/01/20161.9M

    STEP    		AHP 250 8:55 am 09/01/20163.7M

    dwg    		AHP 250 8:55 am 09/01/2016758.9k

    pdf    		AHP 250-270 8:55 am 09/01/20163.3M
    Product Manuals:
  • Part NumberDescriptionDrawingData Sheet
    CR-250Brush finished stainless steel coverdwg
    AS150-12Switching power supply
    150 Watts, 12 VDC    		pdf
    AS150-24Switching power supply
    150 Watts, 12 VDC    		pdf

Features:
• Compact (only 6” X 4.75” X 6.6”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Heat via reverse polarity
• Virtually maintenance-free operation
• Weight 4.4 LBS.

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

Quarterly eNewsletter
