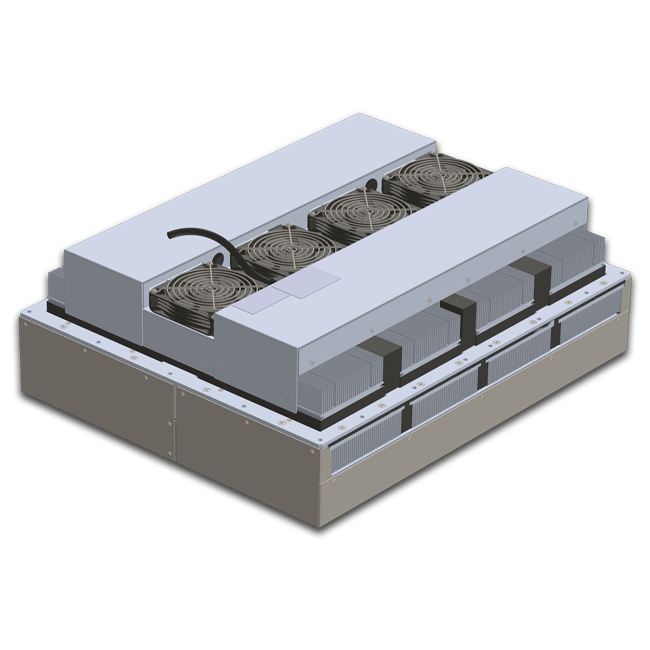

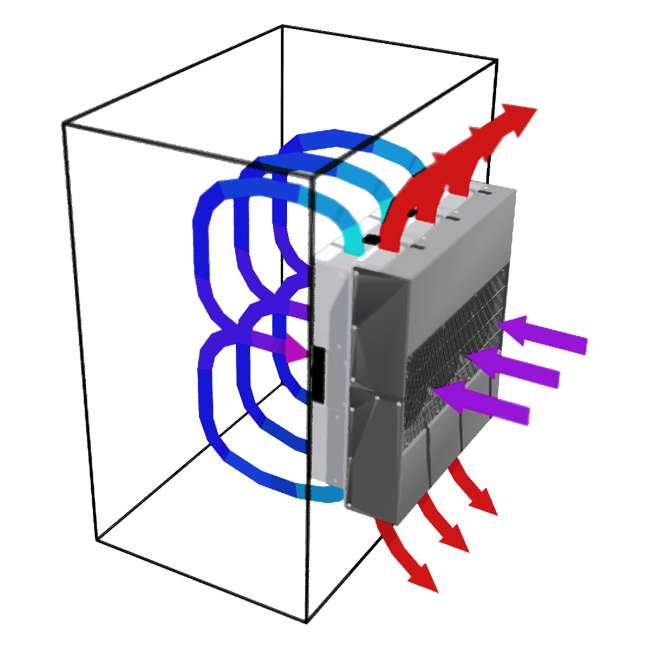

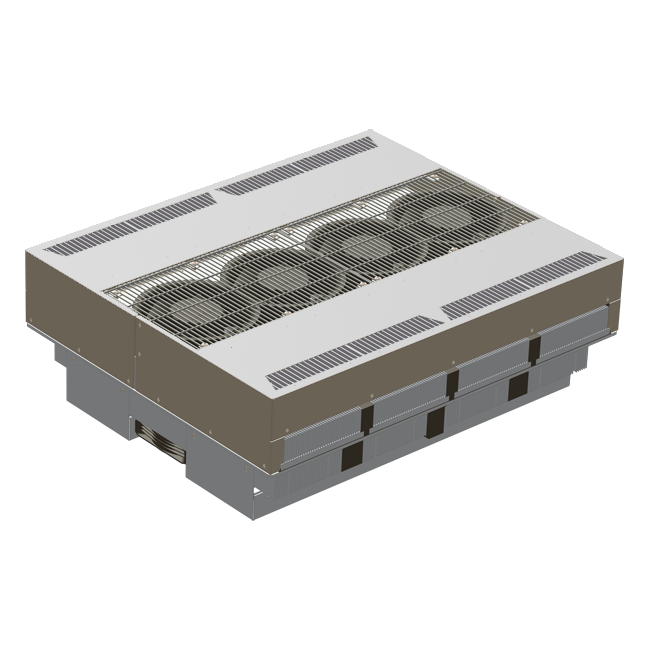

High Capacity Thermoelectric Air Conditioner

Mounting Style: Through Mounted
Voltage: 100-240 VAC
Current: 15-6.5 AMPS
Operating Ambient: -40/+65 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4
Ahp 4259 Data Sheet (320.1k)

Performance Rating:
Cooling (Traditional): 3410 BTU/HR
Cooling (Din 3168): 1000 WATTS
Cooling COP (at L35 L35): 0.67
Heating (Traditional): >5100 BTU/HR
Heating (Din 3168): >1500 WATTS
Heating COP: >1.0

Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord

Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	ENVIRONMENT
AHP-4259	0-J5JB-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	NEMA-12, IP 52
AHP-4259	0-J55B-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	NEMA-12, IP 52
AHP-4259HC	0-J5IB-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	NEMA-12, IP 52
AHP-4259HC	0-J55B-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	5-32 VDC external signal	NEMA-12, IP 52
AHP-4259XE	0-J5JB-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-4F	NEMA-4/4X, IP 56
AHP-4259XE	0-J55B-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	NEMA-4/4X, IP 56
AHP-4259XEHC	0-J5IB-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-7F	NEMA-4/4X, IP 56
AHP-4259XEHC	0-J55B-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	5-32 VDC external signal	NEMA-4/4X, IP 56
AHP-4259HC	0-J5LB-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-5300D PWM control	NEMA-12, IP 52
AHP-4259XEHC	0-J5LB-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	TC-5300D PWM control	NEMA-4/4X, IP 56

Click to open PDF performance curves:

AHP 4259 Curve (166.6k)

Click to open files:

AHP 4259 Assembly (282.8k)
AHP 4259 Dims (209.8k)
Ahp 4200 Installation (333k)

Ahp 4259 Data Sheet (320.1k)
Click to download:

Solid Model files:

Type File Name Date Modified Size

IGS AHP 4259 9:21 am 03/31/2017 84.2M

PDF AHP 4259 9:21 am 03/31/2017 7.3M

SLDP AHP 4259 9:21 am 03/31/2017 24.5M

STEP AHP 4259 9:22 am 03/31/2017 55.2M

Product Manuals:

PIP 0 J5IB 5-000 (2.3M)
PIP 0 J5JB 4-000 (2.3M)
PIP 0 J5LB 1-000 (2.5M)
PIP 0 J5LB 5-000 (2.5M)

Type	File Name	Date Modified	Size

IGS	AHP 4259	9:21 am 03/31/2017	84.2M
PDF	AHP 4259	9:21 am 03/31/2017	7.3M
SLDP	AHP 4259	9:21 am 03/31/2017	24.5M
STEP	AHP 4259	9:22 am 03/31/2017	55.2M

Part Number	Description	For use with air conditioner series
EH-2001	200 Watts Enclosure heater 120 VAC
EH-2002	200 Watts Enclosure heater 240 VAC
EH-4001	400 Watts Enclosure heater 120 VAC
EH-4002	400 Watts Enclosure heater 240 VAC
DVA-4200	Drip pan, vertical cold side fins	AHP-4200
DHA-4200	Drip pan, horizontal cold side fins	AHP-4200
D-100	Condensate discharge, plastic
D-200	Condensate discharge, ST.ST.

Features:
• 90-264 VAC Universal input power supply
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 110 LBS.

Resources:

Air conditioner Notes

Tight Temperature Control Within Small Enclosure:

tight temperature control 172-ahp-301ff

A manufacturer of specialty materials required cooling and heating of small enclosures. The system pictured here is used for the mixing of helium and hydrogen with dew point control.

TECA Model AHP-301FFHC is used with a TECA PID temperature controller to regulate the temperature of the enclosure in order to establish the moisture content of the “wet gas”, which is blended with dry gas to fix the dew point by way of the Buck Equation.

The customer is pleased with the results and continues to build more systems using TECA air conditioners and temperature controllers.

the AHP-301FF series is now replaced by newer model the AHP-401 series.

Cooling Medicine In Transit:

A customer designs and installs custom systems for public safety vehicles. TECA’s AHP-1800-Series Air Conditioner was the perfect fit for keeping medicine cool in transport and in the field. With multiple input voltage and environment configurations available, the customer will be using more TECA air conditioners in other vehicles.

The tight mounting space shown in these photos illustrates the value of thermoelectric air conditioners. There are no filters to change, no chemical coolants and there are no moving parts except the fans. The customer can expect years upon years of service from this unit, virtually maintenance free!

Kiosk Thermal Management

Kiosk Cooling:

In the images shown here, TECA Model AHP-1800XE Thermoelectric Air Conditioner is being used successfully to cool electronics in an outdoor kiosk. The desert environment where the kiosk is located sees temperatures upwards of 110 F.

Outdoor kiosks are growing in popularity but typically require more from an active cooling system than their indoor counterparts. Outdoor kiosks have heat generating equipment like LCD screens and computers. In addition, there can be solar loads and high ambient temperatures to contend with. TECA offers many sizes of enclosure coolers for outdoor use, all utilizing low maintenance and reliable thermoelectric cooling technology.

Our customer raves about the results of this TECA-cooled kiosk, “I had not even one maintenance call. During the summer time the surface of the kiosk gets as high as 125 F, and the components were running cooler than the components in our indoor kiosks.”

See TECA’s profile on the Kiosk Industry web site. Contact TECA Sales with your questions today! Phone 773.342.4900

Cooling Glove Boxes:

cooling glove boxes

A customer manufactures a range of glove box systems for atmosphere control applications in clinical and industrial environments. TECA air conditioners are a vital component on a variety of the glove box models that this customer produces. Standard and customized versions of TECA air conditioners from the AHP-1800 Series are used to control the glove box temperature to below ambient.

Clinical applications primarily revolve around cell and bacterial studies within cancer research, bio-fuels studies, sleep apnea, anaerobic microbiology research and clinical applications etc.

Industrial applications include product weighing or assembly with humidity and temperature maintenance.

Coal Analysis:

coal analysis

A customer required a constant temperature to keep his detectors working in a coal analysis application. Due to experiencing failures with a competitor’s air conditioner, the customer reached out to TECA.

The solution was TECA’s FHP-1501XEHC Model, a versatile thermoelectric air conditioner offering heating and cooling as well as dual voltage: 120 or 240 VAC input. Built with an industrial grade sealed fan and components, the FHP-1501XEHC is suitable for NEMA-4 enclosures.

Beverage Industry Equipment cooling:

Our customer manufactures various machinery and appliances for the beverage industry. One such system of theirs requires high performance and precision, achieved by using specially designed software and test & measurement equipment.

TECA’s thermoelectric air conditioner, the AHP-1200XE with built in temperature controller, is an important part of this system. The customer uses TECA’s AHP-1200XE to reliably cool an enclosure housing a computer and touchscreen. The customer has depended on dozens of AHP-1200XE air conditioners over the years for use in their system.

Paper Mill:

paper mill

The environment of a paper mill is hostile to most equipment. Could a thermoelectric cooler stand up to such conditions?

TECA Model AHP-1200X Solid State Air Conditioner is a perfect solution. This TECA model AHP-1200Xwas returned to TECA for evaluation, after over 120,000 hours of duty. It just did not seem to cool as much any more. As a matter of fact, it was originally put to work in 1992 cooling an electronic enclosure in a paper mill. The customer was sure it needed to be replaced, but sent it back to us to see if anything could be salvaged.

In our inspection we found that the hot side heat sink was fouled with 14 years of newsprint sludge. Once the goop was cleaned out and the fan was free to spin; the unit ran like a charm!

Thermoelectric air conditioners with cooling capacities of up to 340 BTU/HR:

TECA’s thermoelectric air conditioners can heat or cool electrical cabinets and enclosures. Electronics panel cooling or heating in applications requiring up to 100 watts cooling capacity can be ideally served by the products on this page. Every product series on this page (except FHP-451) has the power saving “Eco-Mode” feature available. Eco-Mode is a passive cooling mode which uses significantly less energy in low demand times. Eco-Mode can reduce the need for active cooling and thereby can reduce the cost of operation of TECA’s efficient thermoelectric cabinet coolers.

TECA’s Peltier (thermoelectric) air conditioners cool and protect electronics and cool and heat enclosures in a variety of industries. Some examples that use the products on this page include communications and transit boxes, outdoor control panels, security camera housing, industrial electronics enclosures, incubators, gloveboxes, and more.
