Flush Mount Thermoelectric Panel Cooler

Climate Control for NEMA-12, NEMA-4/4X, Harsh/Mil Duty, CID2 and CID1 530 BTU/HR (154 watts), For AC or DC Input Voltage:

For cooling and heating NEMA equipment cabinets, the FHP-750-Series is an important and incredibly popular legacy product. The FHP-750-Series is a thermoelectric air conditioner designed to protect electronics equipment enclosures from overheating. Utilizing reliable Peltier cooling technology, FHP-750 coolers protect electronic controls, electrical equipment, cabinets, railway signal controls, automation controls, alarms, satellite controls, and other heat sensitive equipment.

Versatile choices allow for use in 24 vdc, 48 vdc, 120 VAC and 240 VAC areas. Cool enclosures while maintaining NEMA-12/4/4X ratings. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. The FHP-750 mounts external to the enclosure, saving the equipment cabinet interior space for its components.

Mounting Style: Flush Mounted
Voltage: 120 VAC, 240 VAC, 24 VDC, 48 VDC
Current: 4 AMPS, 2.5 AMPS, 9 AMPS, 4.5 AMPS
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment
CE Declaration of Conformity (114.4k)
ETL Authorization To Mark (89.6k)
FHP 750 24vdc Data Sheet (182.6k)
FHP 750 48vdc Data Sheet (190.8k)
FHP 750 Data Sheet (189.1k)

Performance Rating:
Cooling (Traditional): 430 BTU/HR
Cooling (Din 3168): 125 WATTS
Cooling COP (at L35 L35): 0.58 (DC version)

Includes:
• Integral power supply
• Mounting gasket and hardware
• Power input cord
• Condensate control system

Controller Features:
TC-1F: Active cool 35 °C
TC-6F: Active cool 25 °C or 35 °C

Click on the part numbers to request a quick quote:

MODEL NUMBER	PART NUMBER	NOTES	CONTROLLER	VOLTAGE VAC (VDC)	CURRENT AMPS	ENVIRONMENT
FHP-750	7-A580-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	120	4	Indoors
FHP-750	7-A5F0-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	120	4	Indoors
FHP-750	7-A550-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	120	4	Indoors
FHP-750XE	7-A580-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	120	5	Outdoors
FHP-750XE	7-A5F0-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	120	5	Outdoors
FHP-750XE	7-A550-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	120	5	Outdoors
FHP-752	7-A582-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	240	2.5	Indoors
FHP-752	7-A5F2-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	240	2.5	Indoors
FHP-752	7-A552-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	240	2.5	Indoors
FHP-752XE	7-A552-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	240	2.5	Outdoors
FHP-752XE	7-A582-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	240	2.5	Outdoors
FHP-752XE	7-A5F2-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	240	2.5	Outdoors
FHP-750	7-A585-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(24)	9	Indoors
FHP-750	7-A5F5-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(24)	9	Indoors
FHP-750	7-A555-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(24)	9	Indoors
FHP-750HC	7-A595-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(24)	9	Indoors
FHP-750XE	7-A585-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(24)	9	Outdoors
FHP-750XE	7-A5F5-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(24)	9	Outdoors
FHP-750XE	7-A555-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(24)	9	Outdoors
FHP-750XEHC	7-A595-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(24)	9	Outdoors
FHP-750	7-A586-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(48)	4.5	Indoors
FHP-750	7-A5F6-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(48)	4.5	Indoors
FHP-750	7-A556-0-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(48)	4.5	Indoors
FHP-750HC	7-A596-1-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(48)	4.5	Indoors
FHP-750XE	7-A586-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-6F	(48)	4.5	Outdoors
FHP-750XE	7-A5F6-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	TC-1F	(48)	4.5	Outdoors
FHP-750XE	7-A556-4-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Cool only	5-32 VDC external signal	(48)	4.5	Outdoors
FHP-750XEHC	7-A596-5-000 Your Name (required) Your Email (required) Subject Enter product part number Quantity Your Message	Heat/Cool	External H-Bridge & control	(48)	4.5	Outdoors

Click to open PDF performance curves:

Fhp 750 DC DIN3168 Cool Mode (10.3k)
Fhp 750 DIN3168 Cool Mode (10.2k)
Fhp 750 Traditional Cool Mode (70.3k)

Click to open files:

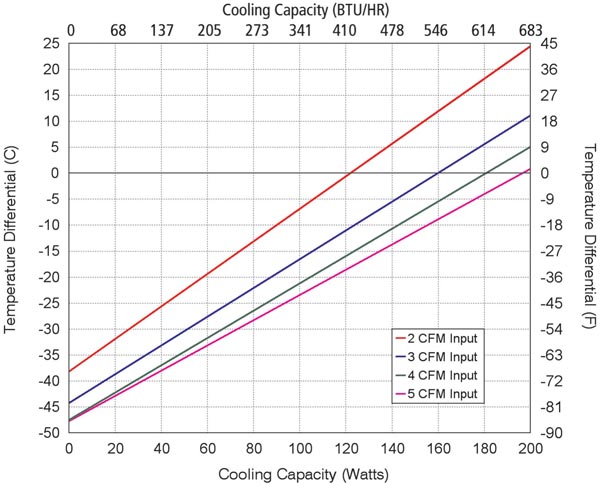

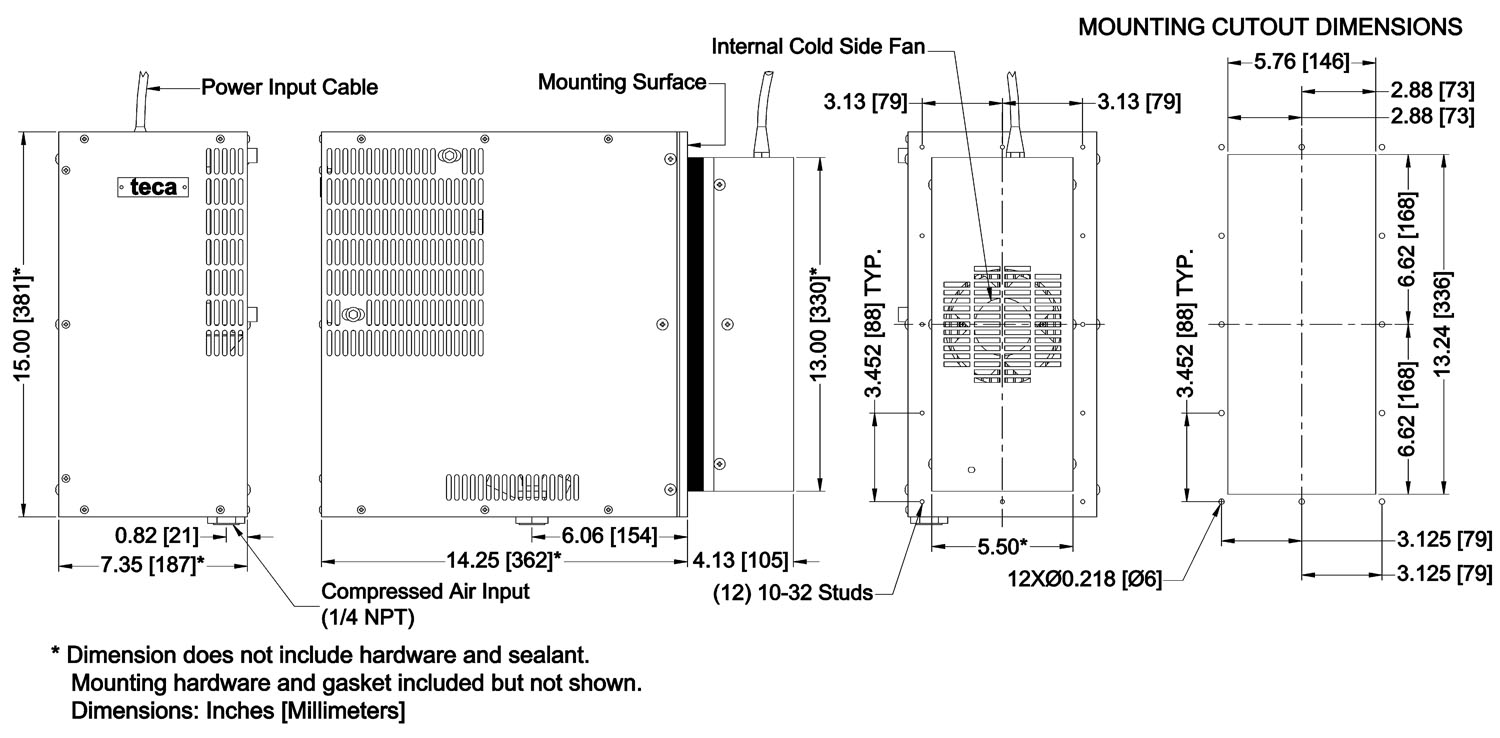

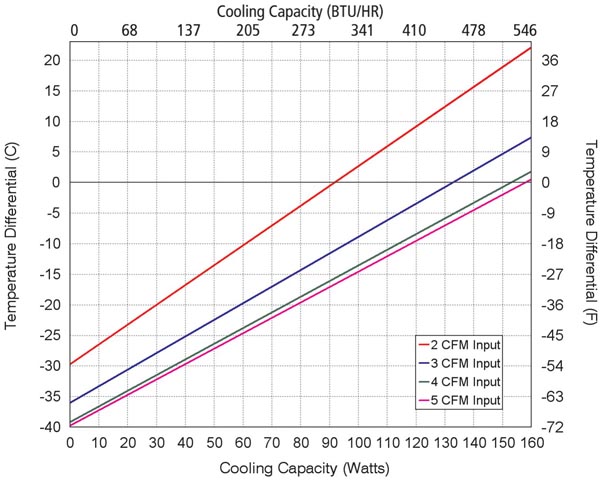

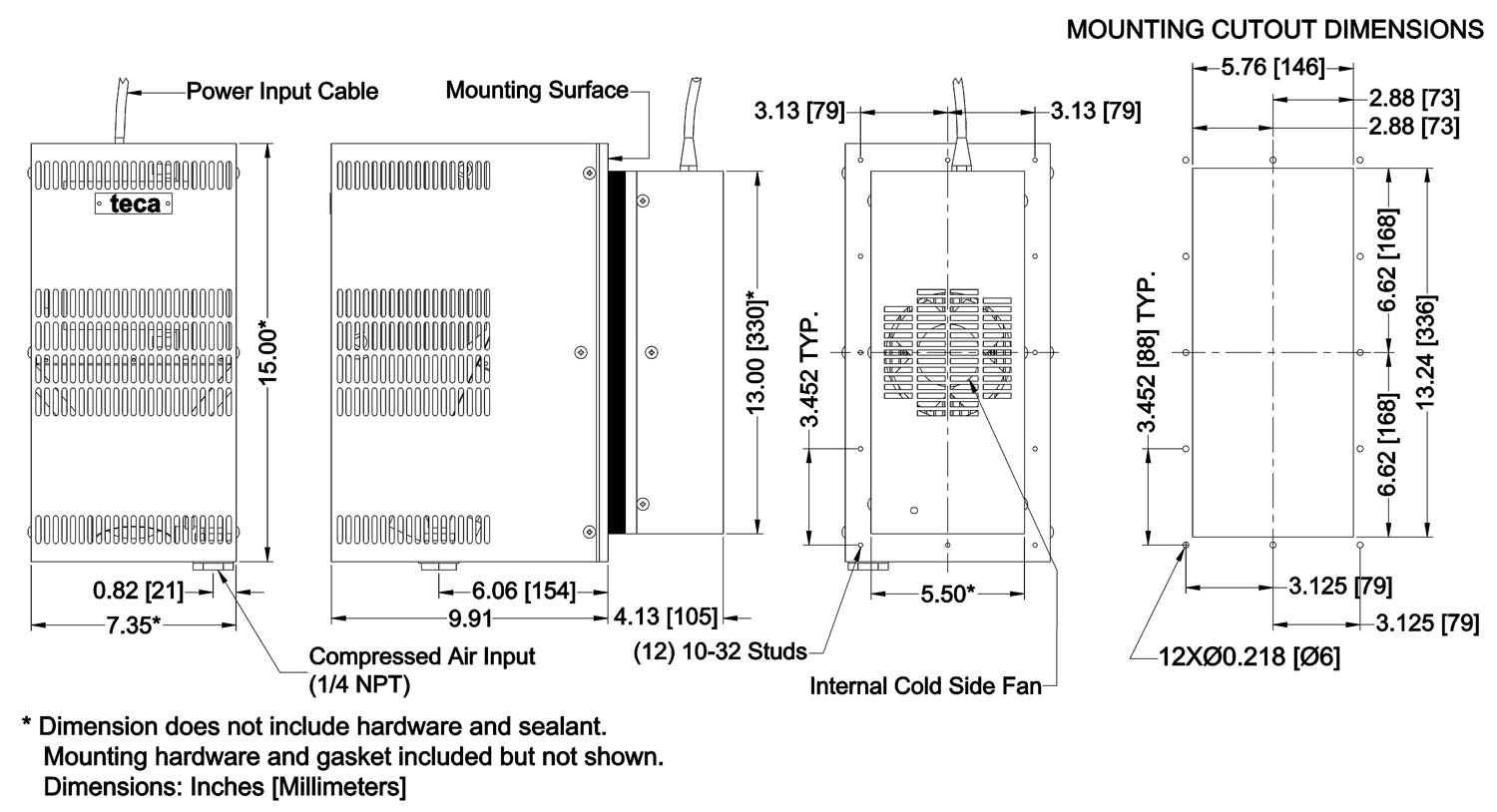

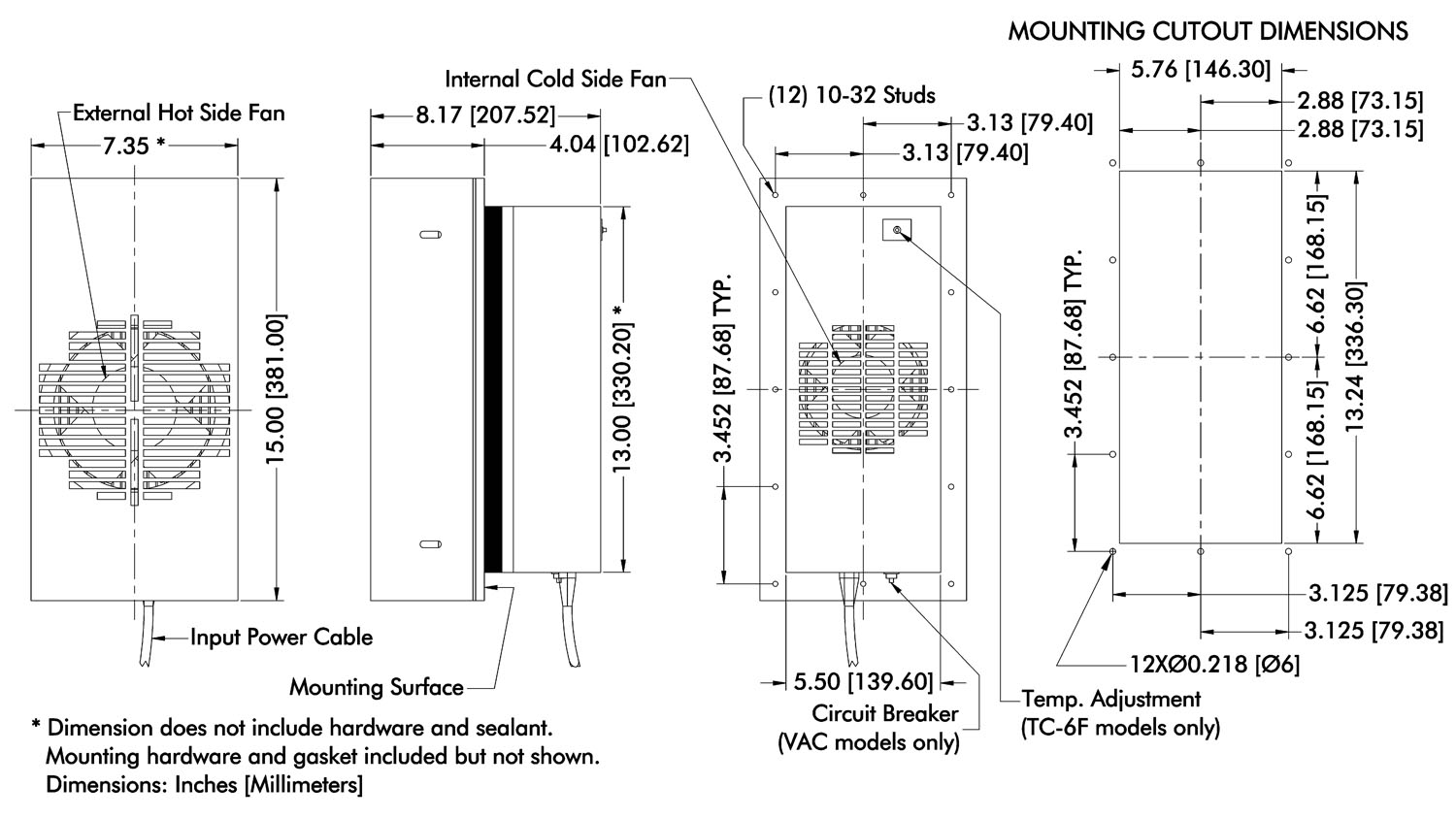

Fhp 750 Dimensions (163.6k)
Fhp 750 Installation (205.8k)

CE Declaration of Conformity (114.4k)
ETL Authorization To Mark (89.6k)
FHP 750 24vdc Data Sheet (182.6k)
FHP 750 48vdc Data Sheet (190.8k)
FHP 750 Data Sheet (189.1k)

Click to download:

Solid Model files:

Type	File Name	Date Modified	Size

IGS	Fhp 750	9:28 am 09/01/2016	8.3M
SLDP	Fhp 750	9:28 am 09/01/2016	999.6k
STEP	Fhp 750	9:28 am 09/01/2016	3.7M
dwg	Fhp 750	9:28 am 09/01/2016	1.1M
pdf	Fhp 750	9:28 am 09/01/2016	3.3M
IGS	Fhp 752	9:28 am 09/01/2016	9.5M
SLDP	Fhp 752	9:28 am 09/01/2016	1.2M
STEP	Fhp 752	9:28 am 09/01/2016	4.6M
dwg	Fhp 752	9:28 am 09/01/2016	1.3M
pdf	Fhp 752	9:28 am 09/01/2016	2.8M

Product Manuals:

PIP 7 A5F0-0-000 (1.2M)

PIP 7 A5F0-4-000 (1.2M)

PIP 7 A550-0-000 ECN005E (1.8M)

PIP 7 A550-4-000 ECN005C (518.7k)

PIP 7 A552-0-000 ECN005A (1.4M)

PIP 7 A552-4-000 ECN005C (1.4M)

PIP 7 A580-0-000 ECN005F (1M)

PIP 7 A580-4-000 ECN005C (513.8k)

PIP 7 A582-0-000 ECN005A (1.4M)

PIP 7 A582-4-000 ECN005C (1.4M)

PIP 7 A585-4-000 (1.2M)

PIP 7 A586-0-000 (1.1M)

Part Number	Description	Drawing	Data Sheet
EH-2001	200 Watts Enclosure heater 120 VAC
EH-2002	200 Watts Enclosure heater 240 VAC
EH-4001	400 Watts Enclosure heater 120 VAC
EH-4002	400 Watts Enclosure heater 240 VAC
SP300-24	Switching power supply 300 Watts, 24 VDC
SP500-24	Switching power supply 500 Watts, 24 VDC

Features:
• Externally mounted, no intrusion
• Compact (only 12”L X 6”W X 9”D)
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• NEMA-4 and NEMA-12 versions
• Both 120 VAC and 240 VAC available
• Mounts in any orientation (condensate control may not work properly in all orientations)
• Custom finishes
• Weight: (FHP-750 16 LBS.) (FHP-752 23 LBS.)
• Agency approvals: ETL Intertek
