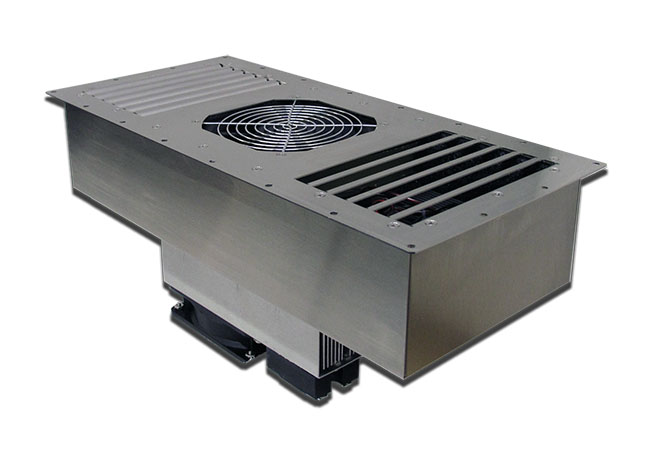

IHP-690 Series

Compact Internal Mount Enclosure Cooler

Enclosure Climate-Control for NEMA-12 & NEMA-4/4X 392 BTU/HR (115 watts), For 24 DC Input Voltage:

The IHP-690 Series thermoelectric NEMA cabinet cooler protects electronics equipment from overheating. Utilizing reliable Peltier cooling technology, IHP-590 coolers protect electronic controls, electrical equipment, cabinets, alarms, railway controls, automation equipment controls, and other heat sensitive equipment.

TECA’s 24 vdc input coolers are ideal for small to medium climate control jobs. The IHP-690 mounts internal to the equipment enclosure, perfect for when there is no allowance in the ambient for cabinet cooler extrusion. Reliable, low maintenance thermoelectric cooling in a compact 24 vdc package. Cool, heat, and maintain NEMA-12/4/4X enclosure ratings in industries such as communications, kiosk/ATM, surveillance, food and beverage, transit, coatings, and more. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.


  • Mounting Style: Internal Mounted

    Voltage: 24 VDC
    Current: 15 AMPS, 0.5 AMPS (ECO-Mode)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    392 BTU/HR
    Cooling (Din 3168): 115 WATTS
    Cooling COP (at L35 L35): 0.44
    Heating (Traditional): > 900 BTU/HR
    Heating (Din 3168): > 264 WATTS
    Heating COP: > 1.0

    Includes:
    • Temperature controller
    • Mounting gasket and hardware
    • Power input leads
    • Power saving heat exchanger mode (ECO-Mode)

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESINSTALLATION STYLECONTROLLERENVIRONMENT
    IHP-690B-M0J5-0-000
    Cool onlyATC-4FIndoors
    IHP-690B-M0J5-0-100
    Cool onlyBTC-4FIndoors
    IHP-690HCB-M095-1-000
    Heat/CoolANoneIndoors
    IHP-690HCB-M095-1-100
    Heat/CoolBNoneIndoors
    IHP-690HCB-M0I5-1-000
    Heat/CoolATC-7FIndoors
    IHP-690HCB-M0I5-1-100
    Heat/CoolBTC-7FIndoors
    IHP-690XEB-M0J5-4-000
    Cool onlyATC-4FOutdoors
    IHP-690XEB-M0J5-4-100
    Cool onlyBTC-4FOutdoors
    IHP-690XEHCB-M095-5-000
    Heat/CoolANoneOutdoors
    IHP-690XEHCB-M095-5-100
    Heat/CoolBNoneOutdoors
    IHP-690XEHCB-M0I5-5-000
    Heat/CoolATC-7FOutdoors
    IHP-690XEHCB-M0I5-5-100
    Heat/CoolBTC-7FOutdoors
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    IHP 690 Style A 9:32 am 09/01/201614.1M

    PDF
    IHP 690 Style A 9:32 am 09/01/20161.2M

    SLDP
    IHP 690 Style A 9:32 am 09/01/20162.8M

    STEP
    IHP 690 Style A 9:32 am 09/01/20167.6M

    IGS
    IHP 690 Style B 9:33 am 09/01/201613.6M

    PDF
    IHP 690 Style B 9:33 am 09/01/20161.2M

    SLDP
    IHP 690 Style B 9:33 am 09/01/20162.8M

    STEP
    IHP 690 Style B 9:33 am 09/01/20167.6M
  • Part NumberDescriptionDrawingData Sheet
    DVA-500Drip pan, vertical cold side finsdwgpdf
    DHA-500Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    AS500-24Switching power supply
    500 Watts, 24 VDC
    pdf

Features:
• Compact (only 17.4” X 8” X 7.8”)
• Mounts and operates in any orientation, inside enclosure
• Available in two installation styles:
– Style A: Installs from inside of the enclosure
– Style B: Installs from outside of the enclosure
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 17 LBS.


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

Air Conditioners 0-340 BTU/HR (0-100 Watts)

Thermoelectric air conditioners with cooling capacities of up to 340 BTU/HR:

TECA’s thermoelectric air conditioners can heat or cool electrical cabinets and enclosures. Electronics panel cooling or heating in applications requiring up to 100 watts cooling capacity can be ideally served by the products on this page. Every product series on this page (except FHP-451) has the power saving “Eco-Mode” feature available. Eco-Mode is a passive cooling mode which uses significantly less energy in low demand times. Eco-Mode can reduce the need for active cooling and thereby can reduce the cost of operation of TECA’s efficient thermoelectric cabinet coolers.

TECA’s Peltier (thermoelectric) air conditioners cool and protect electronics and cool and heat enclosures in a variety of industries. Some examples that use the products on this page include communications and transit boxes, outdoor control panels, security camera housing, industrial electronics enclosures, incubators, gloveboxes, and more.

thermoelectric air conditioners
AHP-250 Series
130 Btu/Hr
12 VDC, 24 VDC
Through Mounted

Peltier air conditioner
AHP-270 Series
160 Btu/Hr
12 VDC, 24 VDC
Through Mounted


FHP-250 Series
109 Btu/Hr
12 VDC, 24 VDC
Flush Mounted

FHP-270 Series
140 Btu/Hr
12 VDC, 24 VDC
Flush Mounted

compact TEC
AHP-470 Series
324 Btu/Hr
24 VDC
Through Mounted

enclosure cooler
FHP-470 Series
273 Btu/Hr
24 VDC
Flush Mounted
electronics cabinet cooler
FHP-451 Series
307 Btu/Hr
120 VAC, 240 VAC
Flush Mounted
thermoelectric cooling
IHP-470 Series
228 Btu/Hr
24 VDC
Internal Mounted
kiosk cooler
IHP-590 Series
314 Btu/Hr
24 VDC
Internal Mounted



The solid-state construction is the perfect low-maintenance solution for hard-to-access areas. There are no filters to change and no moving parts except for the fans. Our air conditioners use robust thermoelectric modules and boast a long service life.

Download TECA’s free Sizing Software, or call the TECA sales team today for help sizing your enclosure!

Mounting Styles:
AHP - Through Mounted
The through mounted (AHP) enclosure coolers will intrude a few inches into and out of the enclosure

ahp-250-pic-3
FHP - Flush Mounted
The flush mounted (FHP) air conditioners will mount totally external to the enclosure

flush-mounting

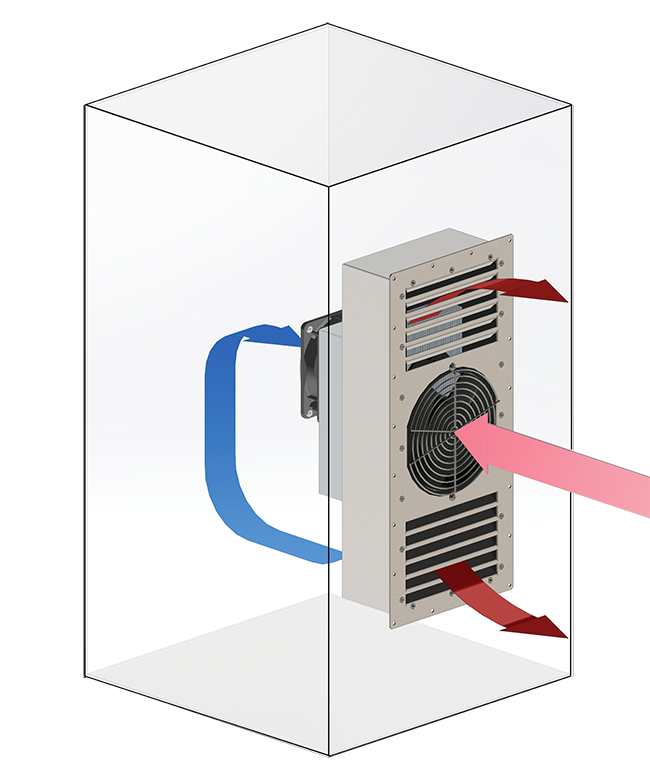

IHP - Internal Mounted
The internal mounted (IHP) air conditioners will mount completely internal to the enclosure

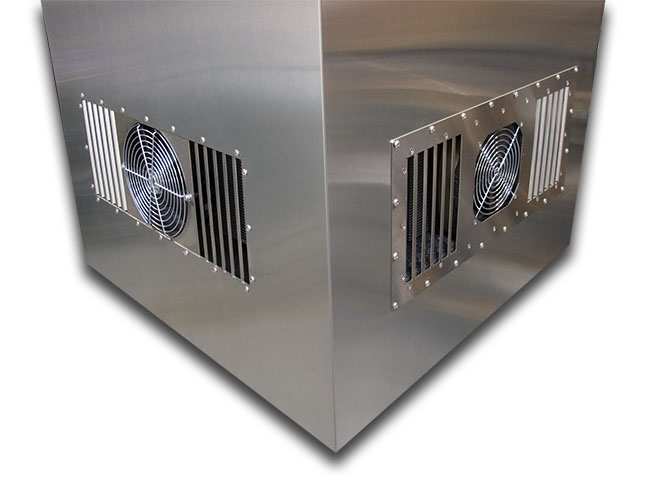

IHP-690 install
