OUTDOOR KIOSK COOLING

Outdoor Kiosk Cooling:

outdoor kiosk cooling   Peltier enclosure cooler
TECA Model AHP-1200XE air conditioners cool over 30 outdoor electronic information kiosks in dozens of State Parks in the U.S. Our customer launched the first electronic interpretive information program specifically designed for visitors to a State Park system by implementing the kiosks.

This award-winning project has received significant attention across the country and TECA is proud to be part of it. The AHP-1200XE can be customized to fit your kiosk’s needs.

COOLING MEDICINE IN TRANSIT

Cooling Medicine In Transit:

cooling medicine cooling medicine
cooling medicine cooling medicine



A customer designs and installs custom systems for public safety vehicles. TECA’s AHP-1800-Series Air Conditioner was the perfect fit for keeping medicine cool in transport and in the field. With multiple input voltage and environment configurations available, the customer will be using more TECA air conditioners in other vehicles.

The tight mounting space shown in these photos illustrates the value of thermoelectric air conditioners. There are no filters to change, no chemical coolants and there are no moving parts except the fans. The customer can expect years upon years of service from this unit, virtually maintenance free!

MILITARY

Military Application:

military

The 2.4 Meter Mobile SATCOM Tactical Terminal (MSTT) is a lightweight, stand alone, trailer-mounted tri-band SATCOM terminal available to support worldwide, quick deployment satellite communications through military and commercial satellites.

It also uses a customized version of the solid state air conditioner AHP-1801X. It was designed and qualified for worldwide operation in tactical military environments.

Mean Time Between Failure (MTBF) Test

Outdoor Electronics Enclosure Cooling:

Mean Time Between Failure (MTBF) Test Outdoor Electronics Enclosure Cooling



TECA Model AHP-1800XEHC Thermoelectric Air Conditioner with heat and cool functions is installed on a rooftop enclosure in harsh conditions and exposed to extreme ambient temperatures. Testing for over 90,000 hours was successfully completed with no failures occurring on the AHP-1800XE enclosure cooler. This is a good example of the reliable nature of thermoelectric technology. Thermoelectric cooling is a good choice for enclosures that are in remote or hard-to-access places. There is very little maintenance required as it is a solid-state technology. The only moving parts are the fans.

Learn more about thermoelectric technology by requesting our free whitepaper today:



Intermodal Control Cooling

Intermodal Control Cooling:

intermodal control cooling

Intermodal systems are increasingly upgrading to automate their processes. Where there is automation, there is a need for control cooling. TECA supports automation by protecting crucial electronics in control cabinets. This minimizes process time and maximizes productivity.

In this example, heat-sensitive electronics are installed in truck processing terminals. TECA Model AHP-1800XEHC offers heat and cool modes and keeps the equipment within safe and operable temperatures.

Learn about the growing automation market and other hot topics; subscribe to our Quarterly eNewsletter.



RUGGEDIZED FOOD PROCESSING

Ruggedized Food Processing:

Ruggedized Food Processing Ruggedized Food Processing



The maker of some of our favorite corn chips used TECA’s AHP-1200X for years in severe hose down environments.

They now had a similar requirement where they wanted to minimize any cleaning and were willing to entertain a liquid cooled LHP-1200XE solid state air conditioner. The unit fit into the same area and footprint as its air cooled cousin and provided greater cooling capacity. This customer added a valve on the water inlet to provide water flow only when cooling was required.

The units have been in service for years.

ELECTRONIC IMAGING

Electronic Imaging

Reliable electronics cooling:

electronic imaging

A small TECA thermoelectric air conditioner is used to cool electronics, preventing over-heat shut downs in a critical application. A leading manufacturer of mobile electronics communications and imaging devices required a fail-proof solution for law enforcement. Customizing a TECA air conditioner, we were able to support the end user’s needs for over a dozen custom models within a short delivery window.

Contact TECA Sales to ask questions and gain valuable sizing advice. We look forward to hearing from you! Phone: 773.342.4900

COMMUNICATIONS

Communications:

communications

A major manufacturer of communications equipment was to go into production of special equipment enclosures, then encountered unforeseen problems with overheating electronics deep inside. The customer wanted air conditioning, but specified that no part of the air conditioner could protrude outside of their enclosure.

TECA designed a little air conditioner inside ducts for hot air exhaust. This way the air conditioner is actually housed entirely inside the enclosure and our customer continues production.

COMPACT MILITARY AIR CONDITIONER

Compact Military Air Conditioner:

compact military air conditioner

The contact to engineering read pretty much like this:

  • Wants A/C, 17.5 x 5.5 footprint, 150 W @ 0 Dt, He is in a hurry
  • Desert Application
  • Unit will require transport in, then it will sit for months, then it will go somewhere else
  • Single set point 35 °C control?
  • Size, can go 6″ on the outside

We suggested AHP-1200X, he said they didn’t choose because of no DC.  We could make it DC!  Nope, won’t fit, air flows are bad, 24 VDC, running off generator, NEMA 4X, Mil grade fans, 50 °C max, urgent need!

A little more than month later the order was placed and about 6 weeks after that a batch of custom air conditioners was being shipped.

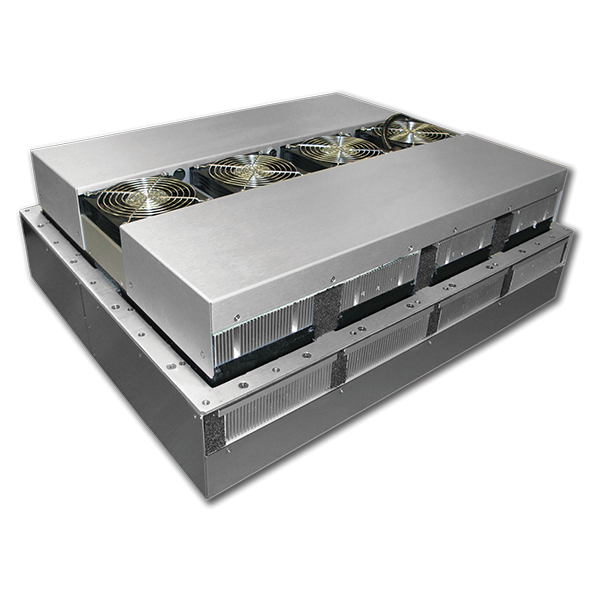

AHP-4252 High Capacity

High Performance Thermoelectric Cooler

High Performance Thermoelectric Cooler 3810 BTU/HR (1120 watts) For 240 Input, High Performance NEMA Enclosure Cooling:

NEMA-12/4/4X enclosures can be cooled with the AHP-4252-Series. It is an advanced Peltier-driven air conditioner. The thermoelectric enclosure cooler Model AHP-4252 will maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. Its ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or harsh, outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.

  • Mounting Style:Through Mounted Voltage: 240 VAC
    Current: 12.5 AMPS, 0.9 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X

    Performance Rating:
    Cooling (Traditional):
    3810 BTU/HR
    Cooling (Din 3168): 1120 WATTS
    Cooling COP (at L35 L35): 0.37
    Heating (Traditional): >12000 BTU/HR
    Heating (Din 3168): >3600 WATTS
    Heating COP: >1.0
    Heat Exchanger (ECO-Mode): 30 W/°C

    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-42520-J5J2-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    AHP-42520-J552-0-000
    Cool only5-32 VDC External signalNEMA-12, IP 52
    AHP-4252HC0-J5I2-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    AHP-4252HC0-J552-1-000
    Heat/Cool5-32 VDC External signalNEMA-12, IP 52
    AHP-4252XE0-J5J2-4-000
    Cool onlyTC-4FNEMA-4, IP 56
    AHP-4252XE0-J552-4-000
    Cool only5-32 VDC External signalNEMA-4, IP 56
    AHP-4252XEHC0-J5I2-5-000
    Heat/CoolTC-7FNEMA-4, IP 56
    AHP-4252XEHC0-J552-5-000
    Heat/Cool5-32 VDC External signalNEMA-4, IP 56
    AHP-4252X0-J5J2-2-000
    Cool onlyTC-4FNEMA-4X, IP 56
    AHP-4252X0-J552-2-000
    Cool only5-32 VDC External signalNEMA-4X, IP 56
    AHP-4252XHC0-J5I2-3-000
    Heat/CoolTC-7FNEMA-4X, IP 56
    AHP-4252XHC0-J552-3-000
    Heat/Cool5-32 VDC External signalNEMA-4X, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 4200 9:04 am 09/01/201633.8M

    SLDP
    AHP 4200 9:04 am 09/01/20165.7M

    STEP
    AHP 4200 9:04 am 09/01/201624.6M

    dwg
    AHP 4200 9:03 am 09/01/20164.8M

    pdf
    Ahp 4200 9:04 am 09/01/20164.9M
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-4200Drip pan, vertical cold side finsAHP-4200dwgpdf
    DHA-4200Drip pan, horizontal cold side finsAHP-4200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting

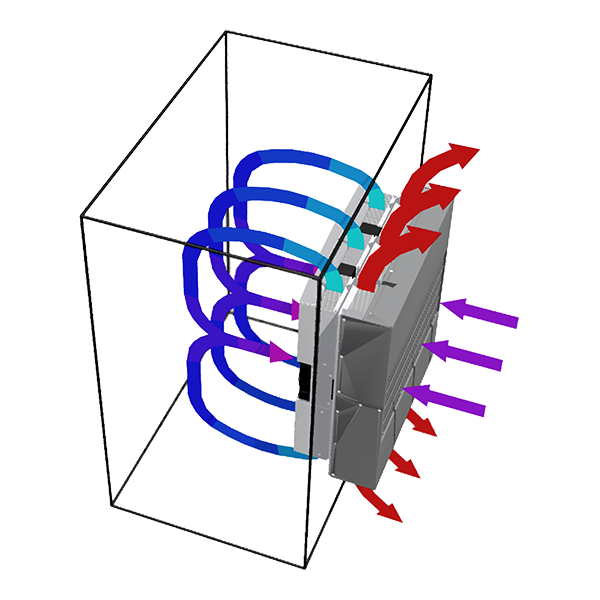

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 110 LBS.
