AHP-4252 High Capacity

High Performance Thermoelectric Cooler

High Performance Thermoelectric Cooler 3810 BTU/HR (1120 watts) For 240 Input, High Performance NEMA Enclosure Cooling:

NEMA-12/4/4X enclosures can be cooled with the AHP-4252-Series. It is an advanced Peltier-driven air conditioner. The thermoelectric enclosure cooler Model AHP-4252 will maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. Its ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or harsh, outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.

  • Mounting Style:Through Mounted Voltage: 240 VAC
    Current: 12.5 AMPS, 0.9 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    3810 BTU/HR
    Cooling (Din 3168): 1120 WATTS
    Cooling COP (at L35 L35): 0.37
    Heating (Traditional): >12000 BTU/HR
    Heating (Din 3168): >3600 WATTS
    Heating COP: >1.0
    Heat Exchanger (ECO-Mode): 30 W/°C



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-42520-J5J2-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    AHP-42520-J552-0-000
    Cool only5-32 VDC External signalNEMA-12, IP 52
    AHP-4252HC0-J5I2-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    AHP-4252HC0-J552-1-000
    Heat/Cool5-32 VDC External signalNEMA-12, IP 52
    AHP-4252XE0-J5J2-4-000
    Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-4252XE0-J552-4-000
    Cool only5-32 VDC External signalNEMA-4/4X, IP 56
    AHP-4252XEHC0-J5I2-5-000
    Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-4252XEHC0-J552-5-000
    Heat/Cool5-32 VDC External signalNEMA-4/4X, IP 56
    AHP-4252X0-J5J2-2-000
    Cool onlyTC-4FNEMA-4X/Harsh Environment, IP 56
    AHP-4252X0-J552-2-000
    Cool only5-32 VDC External signalNEMA-4X/Harsh Environment, IP 56
    AHP-4252XHC0-J5I2-3-000
    Heat/CoolTC-7FNEMA-4X/Harsh Environment, IP 56
    AHP-4252XHC0-J552-3-000
    Heat/Cool5-32 VDC External signalNEMA-4X/Harsh Environment, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 4200 9:04 am 09/01/201633.8M

    SLDP
    AHP 4200 9:04 am 09/01/20165.7M

    STEP
    AHP 4200 9:04 am 09/01/201624.6M

    dwg
    AHP 4200 9:03 am 09/01/20164.8M

    pdf
    Ahp 4200 9:04 am 09/01/20164.9M
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-4200Drip pan, vertical cold side finsAHP-4200dwgpdf
    DHA-4200Drip pan, horizontal cold side finsAHP-4200dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 110 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-2252 Series

Efficient Flush Mount Thermoelectric Cooler

Efficient Thermoelectric Cooler 1875 BTU/HR (550 watts) For 240 Input, High Performance NEMA Enclosure Cooling:

NEMA-12/4/4X enclosures can be cooled with TECA’s FHP-2252-Series. It is an advanced Peltier-driven air conditioner. The thermoelectric enclosure cooler Model FHP-2252 will maintain both efficient cooling and heating as well as the NEMA rating of your weatherproof enclosure. The flush-mounted design of the FHP-2252 is ideal for cooling enclosures with little to no room for added equipment. Its ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric climate control technology is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric climate control from TECA for superior performance and reliability.

  • Mounting Style:Flush Mounted Voltage: 240 VAC
    Current: 6.5 AMPS, 0.5 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    1875 BTU/HR
    Cooling (Din 3168): 550 WATTS
    Cooling COP (at L35 L35): 0.35
    Heating (Traditional): >5320 BTU/HR
    Heating (Din 3168): >1560 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-22527-H5J2-0-000
    Cool onlyTC-4F2406.5NEMA-12, IP 52
    FHP-2252HC7-H5I2-1-000
    Heat/CoolTC-7F2406.5NEMA-12, IP 52
    FHP-2252XE7-H5J2-4-000
    Cool onlyTC-4F2406.5NEMA-4/4X, IP 56
    FHP-2252XEHC7-H5I2-5-000
    Heat/CoolTC-7F2406.5NEMA-4/4X, IP 56
    FHP-2252X7-H5J2-2-000
    Cool onlyTC-4F2406.5NEMA-4X/Harsh Environment, IP 56
    FHP-2252XHC7-H5I2-3-000
    Heat/CoolTC-7F2406.5NEMA-4X/Harsh Environment, IP 56
  • Click to download:

  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact (20.5” L X 13” W X 8.5” D)
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 66 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-3252 Series

Weatherproof NEMA Enclosure Cooler

Weatherproof NEMA Enclosure Cooler, 2610 BTU/HR (765 watts) Thermoelectric Enclosure Cooler for 240 Input with High Performance:

For thermoelectric cooling of weatherproof NEMA enclosures, the AHP-3252-Series is an advanced, high performance enclosure cooler. Maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. The Peltier-driven AHP-3252 is designed to protect enclosures from overheating. Peltier (thermoelectric) cooling technology is reliable and low-maintenance. Cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for cooling enclosures in indoor or harsh, outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric air conditioners from TECA for superior performance and reliability.

  • Mounting Style:Through Mounted Voltage: 240 VAC
    Current: 4.6 AMPS, 0.7 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    2610 BTU/HR
    Cooling (Din 3168): 765 WATTS
    Cooling COP (at L35 L35): 0.70
    Heating (Traditional): >3765 BTU/HR
    Heating (Din 3168): >1104 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-32520-I4J2-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    AHP-3252HC0-I4I2-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    AHP-3252XE0-I4J2-4-000
    Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-3252XEHC0-I4I2-5-000
    Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-3252X0-I4J2-2-000
    Cool onlyTC-4FNEMA-4X/Harsh Environment, IP 56
    AHP-3252XHC0-I4I2-3-000
    Heat/CoolTC-7FNEMA-4X/Harsh Environment, IP 56
  • Click to download:

  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 88 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

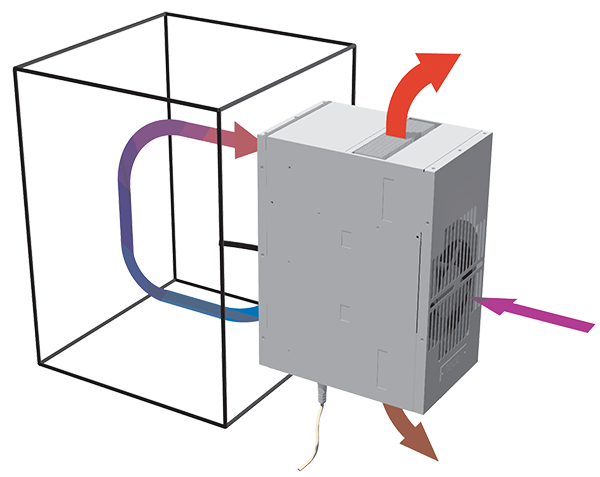

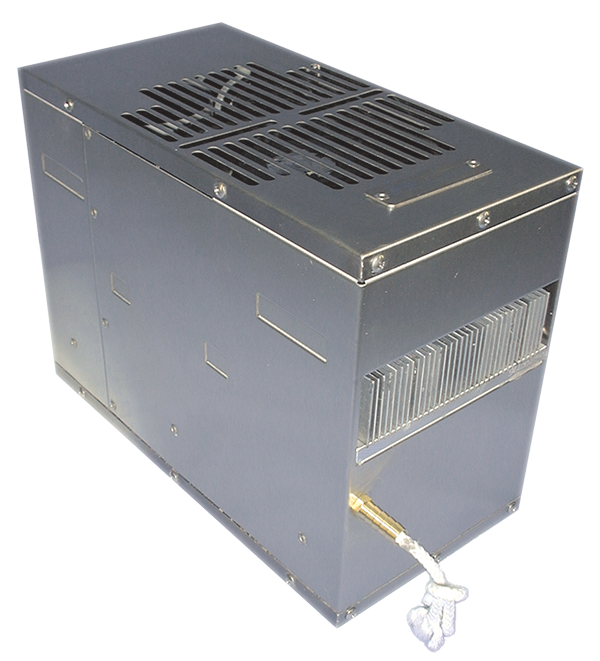

FHP-750 Series

Flush Mount Thermoelectric Panel Cooler

Climate Control for NEMA-12, NEMA-4/4X, Harsh/Mil Duty, CID2 and CID1 530 BTU/HR (154 watts), For AC or DC Input Voltage:

For cooling and heating NEMA equipment cabinets, the FHP-750-Series is an important and incredibly popular legacy product. The FHP-750-Series is a thermoelectric air conditioner designed to protect electronics equipment enclosures from overheating. Utilizing reliable Peltier cooling technology, FHP-750 coolers protect electronic controls, electrical equipment, cabinets, railway signal controls, automation controls, alarms, satellite controls, and other heat sensitive equipment.

Versatile choices allow for use in 24 vdc, 48 vdc, 120 VAC and 240 VAC areas. Cool enclosures while maintaining NEMA-12/4/4X ratings. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control. The FHP-750 mounts external to the enclosure, saving the equipment cabinet interior space for its components.

  • Mounting Style: Flush Mounted

    Voltage: 120 VAC, 240 VAC, 24 VDC, 48 VDC
    Current: 4 AMPS, 2.5 AMPS, 9 AMPS, 4.5 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    430 BTU/HR
    Cooling (Din 3168): 125 WATTS
    Cooling COP (at L35 L35): 0.58 (DC version)



    Includes:
    • Integral power supply
    • Mounting gasket and hardware
    • Power input cord
    • Condensate control system

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-7507-A580-0-000
    Cool onlyTC-6F1204Indoors
    FHP-7507-A5F0-0-000
    Cool onlyTC-1F1204Indoors
    FHP-7507-A550-0-000
    Cool only5-32 VDC external signal1204Indoors
    FHP-750XE7-A580-4-000
    Cool onlyTC-6F1205Outdoors
    FHP-750XE7-A5F0-4-000
    Cool onlyTC-1F1205Outdoors
    FHP-750XE7-A550-4-000
    Cool only5-32 VDC external signal1205Outdoors
    FHP-7527-A582-0-000
    Cool onlyTC-6F2402.5Indoors
    FHP-7527-A5F2-0-000
    Cool onlyTC-1F2402.5Indoors
    FHP-7527-A552-0-000
    Cool only5-32 VDC external signal2402.5Indoors
    FHP-752XE7-A552-4-000
    Cool only5-32 VDC external signal2402.5Outdoors
    FHP-752XE7-A582-4-000
    Cool onlyTC-6F2402.5Outdoors
    FHP-752XE7-A5F2-4-000
    Cool onlyTC-1F2402.5Outdoors
    FHP-7507-A585-0-000
    Cool onlyTC-6F(24)9Indoors
    FHP-7507-A5F5-0-000
    Cool onlyTC-1F(24)9Indoors
    FHP-7507-A555-0-000
    Cool only5-32 VDC external signal(24)9Indoors
    FHP-750HC7-A595-1-000
    Heat/CoolExternal H-Bridge & control(24)9Indoors
    FHP-750XE7-A585-4-000
    Cool onlyTC-6F(24)9Outdoors
    FHP-750XE7-A5F5-4-000
    Cool onlyTC-1F(24)9Outdoors
    FHP-750XE7-A555-4-000
    Cool only5-32 VDC external signal(24)9Outdoors
    FHP-750XEHC7-A595-5-000
    Heat/CoolExternal H-Bridge & control(24)9Outdoors
    FHP-7507-A586-0-000
    Cool onlyTC-6F(48)4.5Indoors
    FHP-7507-A5F6-0-000
    Cool onlyTC-1F(48)4.5Indoors
    FHP-7507-A556-0-000
    Cool only5-32 VDC external signal(48)4.5Indoors
    FHP-750HC7-A596-1-000
    Heat/CoolExternal H-Bridge & control(48)4.5Indoors
    FHP-750XE7-A586-4-000
    Cool onlyTC-6F(48)4.5Outdoors
    FHP-750XE7-A5F6-4-000
    Cool onlyTC-1F(48)4.5Outdoors
    FHP-750XE7-A556-4-000
    Cool only5-32 VDC external signal(48)4.5Outdoors
    FHP-750XEHC7-A596-5-000
    Heat/CoolExternal H-Bridge & control(48)4.5Outdoors
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Fhp 750 9:28 am 09/01/20168.3M

    SLDP
    Fhp 750 9:28 am 09/01/2016999.6k

    STEP
    Fhp 750 9:28 am 09/01/20163.7M

    dwg
    Fhp 750 9:28 am 09/01/20161.1M

    pdf
    Fhp 750 9:28 am 09/01/20163.3M

    IGS
    Fhp 752 9:28 am 09/01/20169.5M

    SLDP
    Fhp 752 9:28 am 09/01/20161.2M

    STEP
    Fhp 752 9:28 am 09/01/20164.6M

    dwg
    Fhp 752 9:28 am 09/01/20161.3M

    pdf
    Fhp 752 9:28 am 09/01/20162.8M
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    SP300-24Switching power supply
    300 Watts, 24 VDC
    pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf

Features:
• Externally mounted, no intrusion
• Compact (only 12”L X 6”W X 9”D)
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• NEMA-4 and NEMA-12 versions
• Both 120 VAC and 240 VAC available
• Mounts in any orientation (condensate control may not work properly in all orientations)
• Custom finishes
• Weight: (FHP-750 16 LBS.) (FHP-752 23 LBS.)
• Agency approvals: ETL Intertek


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

WELCOME TO TECA

TECA Corporation in Chicago began as a department of the Borg-Warner Corporation and developed the first commercially available thermoelectric enclosure cooler in 1978. A privately held company since 1984, TECA remains the market innovator of thermoelectric cooling products for industry, military, and laboratories.

We manufacture the broadest range of solid-state thermoelectric cooling products including air-conditioners, cold plates, liquid chillers, and custom assemblies. We proudly build all our products in our Chicago factory and ship directly to our customers around the globe. TECA is committed to using premium components from original source manufacturers and their certified distributors.


Our Customers

From small companies to global giants, from university laboratories to underground mining, our clients are incredibly diverse. We are grateful to be able to serve so many different industries. It is a testament to the value of thermoelectric cooling technology that it is used for so many purposes.

Some of the industries we most frequently serve include:

Automation Laboratory Military
Aerospace Life Science Oil & Gas
Communications Manufacturing R&D
Construction Engineering Satellite
Kiosk Healthcare Surveillance

Quality Mission Statement

The fundamental purpose of TECA is to serve its customers by providing world-class products of the best possible quality.
It is our promise to continually build with premium components from original source manufacturers and their licensed distributors.
It is our promise to continually monitor and improve our own operations.
It is our promise to meet and exceed our customers’ needs.


Guiding Values
Teamwork: Our success depends upon the safety, involvement, commitment, and performance of each team member.
Excellence: Without sacrificing health, safety, or the environment in which we live, we prioritize our efforts to ensure product quality and customer service.
Cooperation: Suppliers are a crucial factor of TECA quality. Their performance will be measured and controlled to ensure on-time, acceptable deliveries.
Accountability: We are dedicated to the continual improvement of our product offerings, our internal practices, and our customer relationships.

Quarterly eNewsletter
