Mil-Spec Cabinet Cooling

by

Whether space is limited inside or outside your NEMA-4X/Harsh Environment enclosure, TECA has a solution. Air conditioner models mount outside, through, or internal to the enclosure per your needs. TECA’s thermoelectric air conditioners for Mil-Std 810 and NEMA-4X/Harsh Environment enclosures are built with mil-spec hot side fans and can be exposed to rain, wash-down, salt spray, blowing sand and shock per Mil-Std 810 (Shock & Corrosion) and the NEMA-4X/Harsh Environment environment rating.

Please contact TECA for configurations which offer full shock and vibration protection (Mil-Std 810 Shock, Vibration and Corrosion).

Thermoelectric cooling capacities range from the AHP-250X model which offers 130 BTU/hr to the AHP-6263X model which offers 5,660 BTU/hr. Most TECA air conditioners include the “Eco-Mode” temperature control feature, in which passive cooling saves energy by limiting the need for active cooling. Eco-Mode reduces the cost of operation for TECA air conditioners. The solid-state construction is the perfect low-maintenance solution for hard-to-access areas. There are no filters to change and no moving parts except for the fans.

Model NumberMountingCooling Capacity
BTU/HR		COPVoltage
VAC (VDC)		Current
AMPS
AHP-6263XThrough60000.36240 (3 PH)11
FHP-6263XFlush (external)49700.32240 (3 PH)11
AHP-6252XThrough51960.72409.2
FHP-6252XFlush (external)44800.62409.2
AHP-6250XThrough43400.7612014
FHP-6250XFlush (external)38200.6712014
AHP-4252XThrough38100.3724012.5
FHP-4252XFlush (external)36150.3524012.5
AHP-4250XThrough24900.981206
FHP-4250XFlush (external)24080.981206
AHP-3253XThrough29730.72240 (3 PH)2.9
FHP-3253XFlush (external)25930.63240 (3 PH)2.9
AHP-3254XThrough26860.84208 (3 PH)2.6
FHP-3254XFlush (external)22350.61208 (3 PH)2.6
AHP-3252XThrough26100.72404.6
FHP-3252XFlush (external)22900.612404.6
AHP-3250XThrough22500.781207
FHP-3250XFlush (external)19780.71207
AHP-2252XThrough20600.42406.5
FHP-2252XFlush (external)18750.352406.5
AHP-2250XThrough14000.951203.6
FHP-2250XFlush (external)12200.831203.6
AHP-2250XThrough14201.16-2414
FHP-2250XFlush (external)12501-2414
AHP-1801XThrough11000.272405
AHP-1800XThrough11000.271208
AHP-1800XThrough11000.74-2418
AHP-1200XThrough5300.321204
AHP-1200XThrough5300.71-249
AHP-690XThrough4670.52-2415
AHP-590XThrough4600.85-246.9
FHP-590XFlush (external)4160.75-246.9
IHP-590XInternal3150.56-246.9
AHP-570XThrough3051.25-243
FHP-570XFlush (external)2511-243
IHP-570XInternal2400.97-243
AHP-470XThrough3150.56-247
FHP-470XFlush (external)2590.48-247
IHP-470XInternal2280.4-247
AHP-450XThrough2071.12-242.3
FHP-450XFlush (external)1970.96-242.3
IHP-450XInternal1570.83-242.3
AHP-270XThrough1610.46-244.1
AHP-250XThrough1290.53-243

Precise Control Air Conditioners

by

Precise Control Air Conditioners:

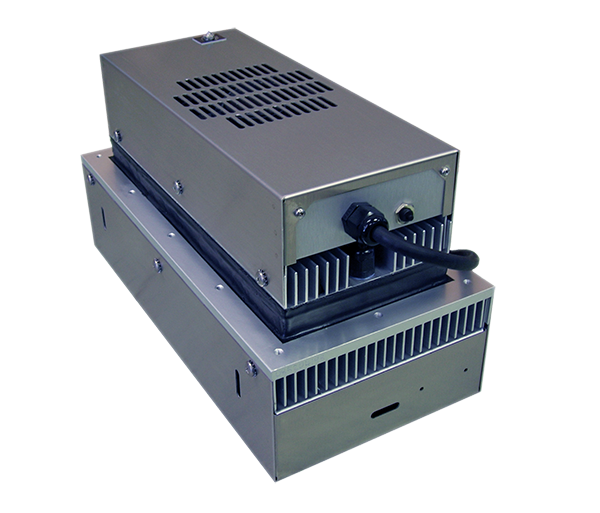

AHP-1200 Through mount 530 BTU/HR

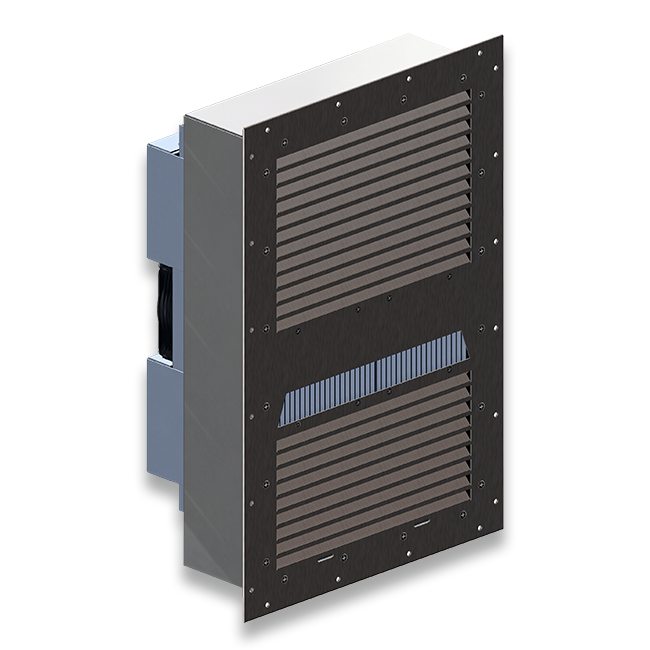

IHP-2259 Internal mount 1040 BTU/HR

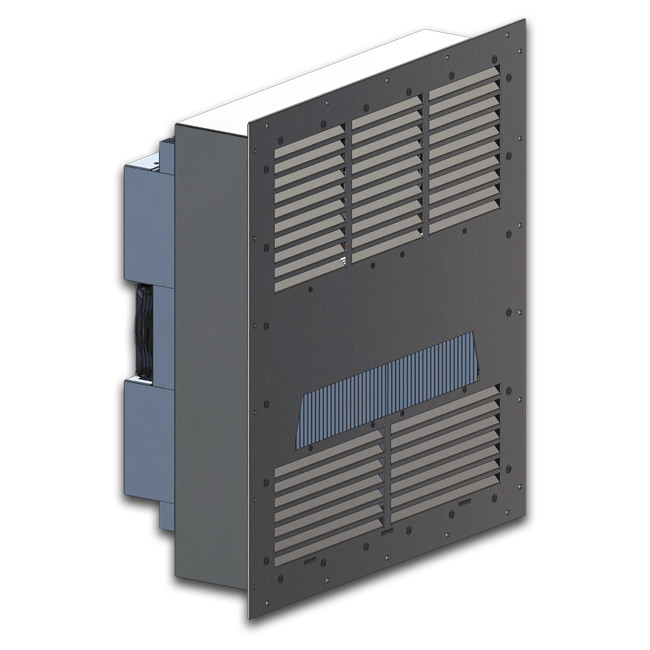

IHP-3259 Internal mount 1720 BTU/HR

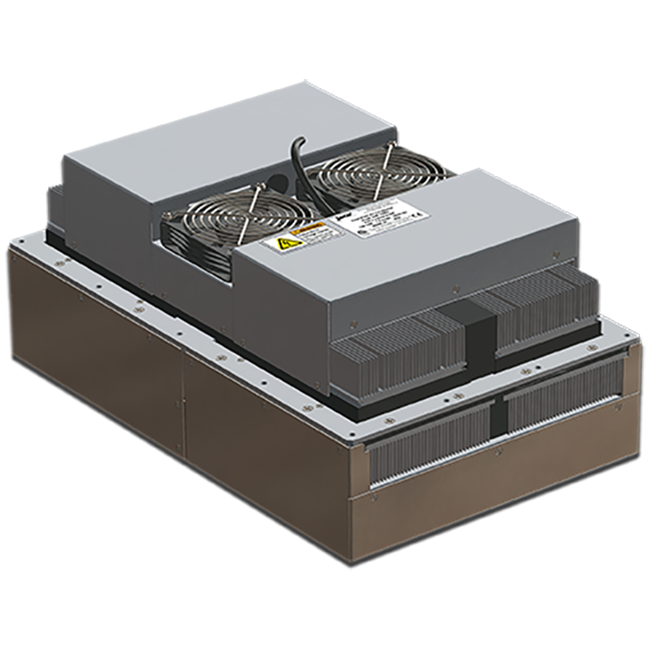

AHP-2259 Through mount 1330 BTU/HR

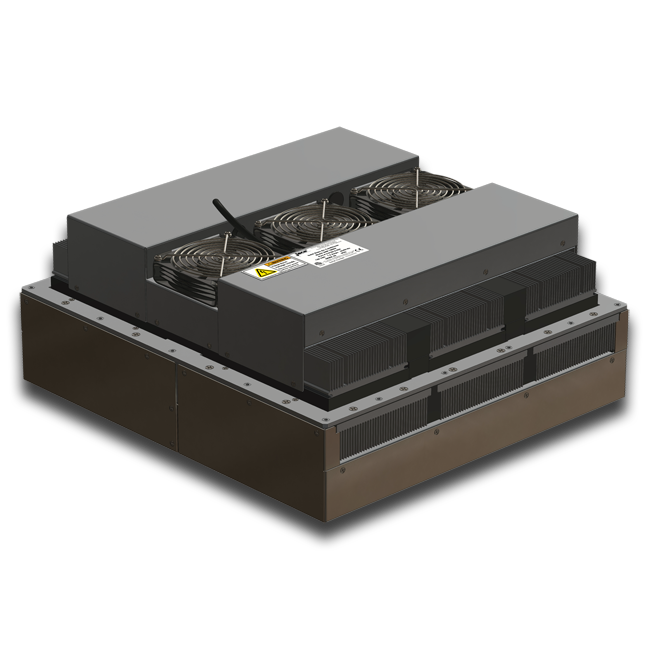

AHP-3259 Through mount 2400 BTU/HR

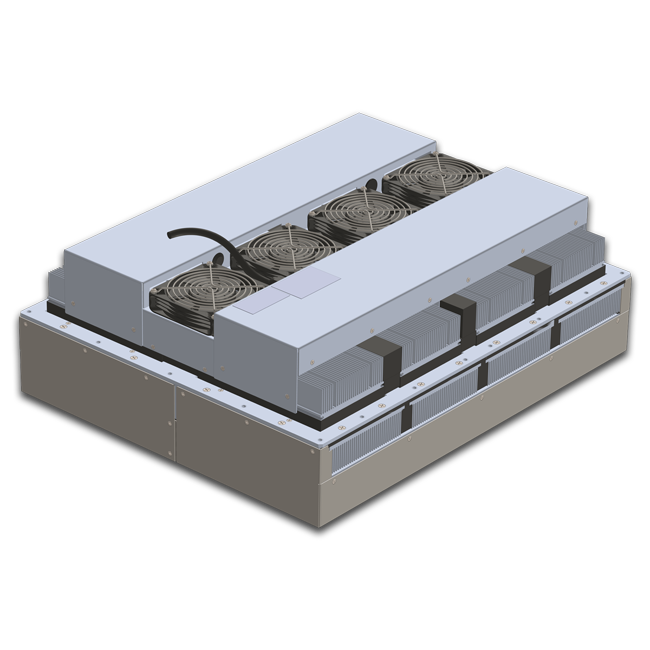

AHP-4259 Through mount 3410 BTU/HR

  •

    Mounting Style: Through Mounted, Flush Mounted and Internal Mounted
    Voltage: 100-240 VAC, (24 VDC for AHP-1259XE)
    Operating Ambient: -40/+65 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-4

    Performance Rating:
    Cooling (Traditional):     530 to 3410 BTU/HR
    Cooling (Din 3168): 155 to 1000 WATTS

    Overview:
    The Precise Temperature Control series air conditioners are designed for applications where controlling and maintaining the internal temperature of an enclosure is of importance. These
    products are available in through mounted, flush mounted and internal mounted configurations.

    The integral TC-5300 PWM controller enables these products to cool and heat as needed. An air sensing precision three wire platinum RTD and a USB communications port are standard on these products. Monitor, adjust the set point and tune your control to your specific enclosure using the included tecaLOG software.

    Controller Features:
    • Integral “tunable” din rail mounted PWM temperature control
    • Manually set or autotune to set point for best PID values
    • 4 Programmable temperature zones with 4 independent PID settings
    • Multi-segment ramp/soak programs with loops
    • Internal RTD sensor, built into the air conditioner
    • External RTD sensor can be located in critical location of your enclosure
    • USB communication with easy to use software
    • Labview VI examples available

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERCOOLING CAPACITY
    L35 L35 BTU/HR    		VOLTAGE
    VAC (VDC)    		CURRENT
    AMPS    		MOUNTING STYLE
    AHP-1259XEHC0-30L5-5-000
    		530(24)9NEMA-12, IP 52
    IHP-2259XEHCB-H4LB-5-100
    		1040100-2403.0 - 1.3NEMA-12, IP 52
    IHP-3259XEHCB-I5LB-5-100
    		1270100-24011 - 4.6NEMA-12, IP 52
    AHP-2259XEHC
    (HIGH EFFICIENCY)    		0-H4LB-5-000
    		1330100-2403.0 - 1.3NEMA-4/4X, IP 56
    AHP-2259XEHC
    (HIGH CAPACITY)    		0-H5LB-5-000
    		1820100-2408.4 - 3.5NEMA-4/4X, IP 56
    AHP-3259XEHC0-I5LB-5-000
    		2400100-24011 - 4.6NEMA-4/4X, IP 56
    AHP-4259XEHC0-J5LB-5-000
    		3410100-24015 - 6.5NEMA-4/4X, IP 56

  • Click to open files:

Features:
• High capacity thermoelectric design
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• For flush mount configurations (contact TECA)

Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

KIOSK COOLING

by

Kiosk Cooling:

kiosk cooling   kiosk cooler
A company specializing in fleet management and motor pool software required multiple outdoor, self service kiosks to be placed in various environments throughout the USA. TECA’s AHP-470XEHC thermoelectric air conditioner is an ideal solution, providing needed cooling to sensitive parts within the sun-exposed kiosk. The AHP-470XEHC air conditioner cools the kiosk without taking up much space and it is suitable for various environments including NEMA-4 enclosures. Heat/Cool is optional, as are external covers for aesthetic purposes.

Whether space is restricted inside or outside your kiosk, TECA offers three mounting styles for kiosk cooling: Through, Internal and External.

Design Considerations

by

Design Considerations:

NEMA/IP
NEMA Ratings:

NEMA-12: Type 12 enclosures are intended for indoor use primarily to provide a degree of protection against dust, falling dirt, and dripping non-corrosive liquids. Applies to AHP & FHP models.

Source: NEMA Publication N0. 250, Part 1, Page 1

NEMA-4: Type 4 enclosures are intended for indoor and outdoor use primarily to provide a degree of protection against windblown dust and rain, splashing water, and hose directed water.  TECA products with the “XE” designation use sealed fans, sealed components, stud/gasket mounting and Mil- Spec finishes.  They are designed to maintain the enclosure rating and perform in the rated environment. Applies to AHP-XE & FHP-XE models.

Source: NEMA Publication N0. 250, Part 1, Page 1

NEMA-4X/Harsh Environment: Type 4X enclosures are intended for indoor and outdoor use primarily to provide a degree of protection against corrosion, windblown dust and rain, splashing water, and hose directed water.  TECA products carrying the “X” designation use Mil-Spec fans, o-ring sealed power supplies, no exposed electronic components, stud/gasket mounting and Mil-Spec finishes. They are designed to maintain the enclosure rating and perform in the rated environment. Applies to AHP-X & FHP-X models.

Source: NEMA Publication N0. 250, Part 1, Page 1

IP Rating
The IP (Ingress Protection) standard describes a uniform system for classifying the degrees of protection provided by the enclosures of electrical equipment. The first number refers to the level of protection against penetration of solid objects into the enclosure. The second number refers to the level of protection against penetration of liquids into the enclosure.

1st Number
Level of Protection
2nd Number
Level of Protection
0
No protection
0
No protection
1
Protection against objects over 50mm, accidental touch by hands
1
Protection against vertically dripping water
2
Protection against objects over 12mm, protection against touch by fingers
2
Protection against liquid drops at 15° from vertical
3
Protection against objects over 2.5mm, tools, wires, etc.
3
Protection against rain at angle of up to 60° from vertical
4
Protection against objects over 1mm, small tools, wires, etc.
4
Protection against splash from any direction
5
Complete protection against contact. Protection against harmful ingress and deposit of dust
5
Protection against water jets from any direction
6
Complete protection against contact. Protection against ingress of dust
6
Protection against heavy sea water


7
Protection against immersion in water under stated conditions of pressure and time


8
Protection under indefinite immersion in water under specified pressure
Military Standards
Military Standards (Mil-Std 810):

Corrosion: (Salt Fog Testing) Method 509.2,168 Hours. Applies to AHP-X models.
Vibration: Method 514.3, 2 hours, x,y,z axis 8.9 G’s. 10-2000 Hz with a magnitude of 0.04 G²/Hz.
Applies to XM (consult factory) models

Vibration: Method 514.3, 2 hours, x,y,z axis 8.9 G’s. 10-2000 Hz with a magnitude of 0.04 G²/Hz. Applies to XM (consult factory) models.

Shock: Method 516.2, with 30 G’s peak amplitude, 11ms pulse duration, half-sine waveform, and three (3) shocks in each direction along three (3) mutually orthogonal axes. Employed for all XM versions. Standard models are designed to withstand 2.2 G’s.
Applies to AHP-1200X, 1201X, 1200XP, 1201XP, AHP-1800X, 801X, 1800XP & 1801XP  models

Source: Mil-Std 810

NEC
NEC – National Electrical Code:

CID2 Class I, Division 2 (Hazardous Environments) – a location (1) in which volatile flammable liquids or flammable gases are handled, processed, or used, but in which the liquids, vapors, or gases will normally confined within closed containers or closed systems from which they can escape only case of accidental rupture or breakdown such containers or systems, or in case of abnormal operation of equipment; which ignitable concentrations of vapors are normally prevented by mechanical ventilation, and which become hazardous through failure operation of the ventilating equipment; that is adjacent to a Class I, Division location, and to which ignitable concentrations gases or vapors might occasionally communicated unless such communication prevented by adequate positive-pressure ventilation from a source of clean air, safeguards against ventilation failure pro-vided.
Applies to AHP-XP models

Groups (A-D) Atmospheres containing following: acetylene, hydrogen, fuel, combustible process gases containing 30% hydrogen by volume, or gases of equivalent hazard such as butadiene, ethylene oxide, propylene oxide, acrolein, ether, ethylene, or gases or vapors equivalent hazard such as acetone, ammonia, benzene, butane cyclopropoane, gasoline, hexane, methanol, methane, naphtha, propane, or gases or vapors equivalent hazard.
Applies to AHP-XP models
Source: NEC 2005, Article 500

UL/CSA
UL- 1604: Hazardous duty operation, Class I and II Division 2, Class III Div 1 and 2. Tested thru ETL and ETLc Testing Laboratories, Report #551722.
Applies to AHP-XP models

UL-1995 & CSA 22.2: Heating and Cooling Equipment, Categories 169 & 294, No. 236- M90. Tested thru ETL and ETLc Testing Laboratories, Report #532015.
Applies to the following air conditioner models: AHP-1200, 1201, 1202, 18001, 1801, 1802, 1501; AHP-1200XE, 1202XE, 1501XE, 1800XE, 1802XE;  FHP-750, 752, 1501; FHP-750XE, 752XE, 1501XE

UL-3101-1 & CSA 22.2: Electrical equipment for laboratory use. Safety requirements for electrical equipment for measurement, controls and laboratory use. Tested thru ETL and ETLc Testing Laboratories, Report #20022721.001.
Applies to TLC-700, TLC-702 liquid chiller models

CE
EN 60335-1 & EN60335-2-40: Safety of household & similar electrical appliances, part 1: General requirements.Part 2: Particular requirements for electrical heat pumps, air conditioners & dehumidifiers (IEC 335-2-40: 1992, Modified).
Low voltage directive 73/23/EEC – European Union (EU)
EMC directive 89/336/EEC – European Union (EU)
Tested thru ETL.
Applies to the following air conditioner models: AHP-1200, 1201, 1202, 18001, 1801, 1802, 1501; AHP-1200XE, 1202XE, 1501XE, 1800XE, 1802XE;  FHP-750, 752, 1501; FHP-750XE, 752XE, 1501XE

EN 61326, EN 61010-1 & EN 61010-2: Application of council directive: Machinery directive (89/336/EEC)
Standard EN 61326:1997, Class A; EN 61326:1997, Industrial location
Low voltage directive 73/23/EEC – European Union (EU)
Standard EN 61010-1-A1:97; EN 61010-2-010-A1:97
Tested thru ETL.
Applies to TLC-700, TLC-702 liquid chiller models
Mounting
Mounting:

TECA’s FHP thermoelectric air conditioners are designed to mount on the outside of the enclosure. There is no intrusion within the enclosure allowing for greater design flexibility. A mounting plate provides for easy installation.

Side, Front, or Back Mounting: This mounting orientation is recommended for applications with high humidity or incomplete cabinet seals. Condensation can be removed via moisture collection systems (standard on FHP-units and AHP-1400) or a drip pan positioned below the cold side fins. Drip pans are optional for thru mount style units.

Top Mounting: It is difficult to collect condensation in this orientation due to fin orientation and gravity. If a drip pan is employed by the end user, use caution to place the pan far enough away from the internal fan to minimize the restriction of air flow. The pan should cover the fin ends as well as the fan area. When there is a choice, side orientation is preferred by most users in high humidity environments.

Condensation
Condensation may form on the cold side fins when the surface temperature goes below the dew point temperature. To reduce the possibility of condensation or to transfer condensate to the outside of the enclosure consider the following:

  • Regulate the fin temperature above the dew point. Equations are provided for this purpose
  • Use desiccant (moisture absorbing granules)
  • Employ condensate removal system or drip pans

FHP-Series and models AHP-1400, AHP-1501 Air Conditioners contain built-in condensate removal systems. The condensate system consists of an anti-fungal sponge with a condensate wick. PVC tubing is also provided for drainage. The wick should extend below the cooling assembly to allow for a gravity feed.

Reliability
TECA Model AHP1200XHC

MTBF calculation was made using Telcordia SR-332, Method II.

Mean time between failures prediction ranges from 80,000 hours for ground benign, outdoor, 25C environment to 47,700 hours for ground mobile, outdoor, 70C environment.

On this website under “APPLICATIONS“, please also see the ongoing test of TECA Model AHP1800XEHC which has been in continuous service for over 80,000 hours outdoors on the roof. There is also a picture and description of a TECA Model AHP1200X with 120,000 hours of duty with no problems other than dirt!

MTBF
