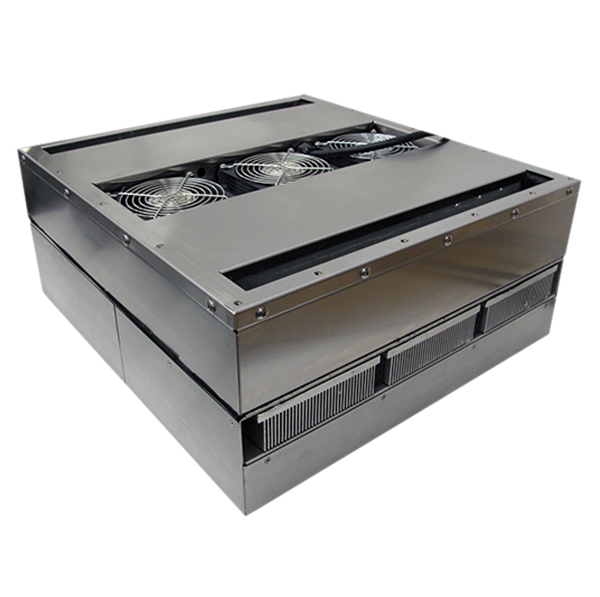

FHP-3250 Series

Large Capacity Thermoelectric Air Conditioner

Large Capacity Thermoelectric Air Conditioner 1978 BTU/HR (580 watts) Enclosure Cooling, 48 VDC or 120 VAC Input with Power Save Mode:

Cool NEMA-12 enclosures, NEMA-4 enclosures and NEMA-4X/Harsh Environment enclosures with the thermoelectric FHP-3250-Series. This advanced Peltier-driven air conditioner will maintain both efficient cooling and the NEMA rating of your enclosure. The flush-mounted design of the FHP-3250 is ideal for control cabinets with little to no room for added equipment. The ECO-Mode temperature control feature helps save on power use. Designed to protect control cabinets, thermoelectric cooling technology (a.k.a. Peltier) is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.

  • Mounting Style:Flush Mounted Voltage: 120 VAC, (48 VDC)
    Current: 7.0 AMPS, (22 AMPS)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    1978 BTU/HR
    Cooling (Din 3168): 580 WATTS
    Cooling COP (at L35 L35): 0.7
    Heating (Traditional): >2780 BTU/HR
    Heating (Din 3168): >815 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENTCURRENT
    AMPS
    ENVIRONMENT
    FHP-32507-I4J0-0-000
    Cool onlyTC-4F1207NEMA-12, IP 52
    FHP-32507-I450-0-000
    Cool only3-32 VDC External signal1207NEMA-12, IP 52
    FHP-3250HC7-I4I0-1-000
    Heat/CoolTC-7F1207NEMA-12, IP 52
    FHP-3250HC7-I450-1-000
    Heat/Cool3-32 VDC External signal1207NEMA-12, IP 52
    FHP-3250XE7-I4J0-4-000
    Cool onlyTC-4F1207NEMA-4/4X, IP 56
    FHP-3250XE7-I450-4-000
    Cool only3-32 VDC External signal1207NEMA-4/4X, IP 56
    FHP-3250XEHC7-I4I0-5-000
    Heat/CoolTC-7F1207NEMA-4/4X, IP 56
    FHP-3250XEHC7-I450-5-000
    Heat/Cool3-32 VDC External signal1207NEMA-4/4X, IP 56
    FHP-3250X7-I4J0-2-000
    Cool onlyTC-4F1207NEMA-4X/Harsh Environment, IP 56
    FHP-3250X7-I450-2-000
    Cool only3-32 VDC External signal1207NEMA-4X/Harsh Environment, IP 56
    FHP-3250XHC7-I4I0-3-000
    Heat/CoolTC-7F1207NEMA-4X/Harsh Environment, IP 56
    FHP-3250XHC7-I450-3-000
    Heat/Cool3-32 VDC External signal1207NEMA-4X/Harsh Environment, IP 56
    FHP-32507-I5J6-0-000
    Cool onlyTC-4F(48)22NEMA-12, IP 52
    FHP-32507-I556-0-000
    Cool only3-32 VDC External signal(48)22NEMA-12, IP 52
    FHP-3250HC7-I5I6-1-000
    Heat/CoolTC-7F(48)22NEMA-12, IP 52
    FHP-3250HC7-I556-1-000
    Heat/Cool3-32 VDC External signal(48)22NEMA-12, IP 52
    FHP-3250XE7-I5J6-4-000
    Cool onlyTC-4F(48)22NEMA-4/4X, IP 56
    FHP-3250XE7-I556-4-000
    Cool only3-32 VDC External signal(48)22NEMA-4/4X, IP 56
    FHP-3250XEHC7-I5I6-5-000
    Heat/CoolTC-7F(48)22NEMA-4/4X, IP 56
    FHP-3250XEHC7-I556-5-000
    Heat/Cool3-32 VDC External signal(48)22NEMA-4/4X, IP 56
    FHP-3250X7-I5J6-2-000
    Cool onlyTC-4F(48)22NEMA-4X/Harsh Environment, IP 56
    FHP-3250X7-I556-2-000
    Cool only3-32 VDC External signal(48)22NEMA-4X/Harsh Environment, IP 56
    FHP-3250XHC7-I5I6-3-000
    Heat/CoolTC-7F(48)22NEMA-4X/Harsh Environment, IP 56
    FHP-3250XHC7-I556-3-000
    Heat/Cool3-32 VDC External signal(48)22NEMA-4X/Harsh Environment, IP 56
  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    Fhp 3200 9:17 am 09/01/201619.2M

    PDF
    Fhp 3200 9:17 am 09/01/2016665.8k

    SLDP
    Fhp 3200 9:17 am 09/01/20163.8M

    STEP
    Fhp 3200 9:18 am 09/01/201612.6M

    dwg
    Fhp 3200 9:16 am 09/01/20164M
  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 93 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-2252 Series

Efficient Flush Mount Thermoelectric Cooler

Efficient Thermoelectric Cooler 1875 BTU/HR (550 watts) For 240 Input, High Performance NEMA Enclosure Cooling:

NEMA-12/4/4X enclosures can be cooled with TECA’s FHP-2252-Series. It is an advanced Peltier-driven air conditioner. The thermoelectric enclosure cooler Model FHP-2252 will maintain both efficient cooling and heating as well as the NEMA rating of your weatherproof enclosure. The flush-mounted design of the FHP-2252 is ideal for cooling enclosures with little to no room for added equipment. Its ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric climate control technology is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric climate control from TECA for superior performance and reliability.

  • Mounting Style:Flush Mounted Voltage: 240 VAC
    Current: 6.5 AMPS, 0.5 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    1875 BTU/HR
    Cooling (Din 3168): 550 WATTS
    Cooling COP (at L35 L35): 0.35
    Heating (Traditional): >5320 BTU/HR
    Heating (Din 3168): >1560 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-22527-H5J2-0-000
    Cool onlyTC-4F2406.5NEMA-12, IP 52
    FHP-2252HC7-H5I2-1-000
    Heat/CoolTC-7F2406.5NEMA-12, IP 52
    FHP-2252XE7-H5J2-4-000
    Cool onlyTC-4F2406.5NEMA-4/4X, IP 56
    FHP-2252XEHC7-H5I2-5-000
    Heat/CoolTC-7F2406.5NEMA-4/4X, IP 56
    FHP-2252X7-H5J2-2-000
    Cool onlyTC-4F2406.5NEMA-4X/Harsh Environment, IP 56
    FHP-2252XHC7-H5I2-3-000
    Heat/CoolTC-7F2406.5NEMA-4X/Harsh Environment, IP 56
  • Click to download:

  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact (20.5” L X 13” W X 8.5” D)
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 66 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-3252 Series

Weatherproof NEMA Enclosure Cooler

Weatherproof NEMA Enclosure Cooler, 2610 BTU/HR (765 watts) Thermoelectric Enclosure Cooler for 240 Input with High Performance:

For thermoelectric cooling of weatherproof NEMA enclosures, the AHP-3252-Series is an advanced, high performance enclosure cooler. Maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. The Peltier-driven AHP-3252 is designed to protect enclosures from overheating. Peltier (thermoelectric) cooling technology is reliable and low-maintenance. Cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for cooling enclosures in indoor or harsh, outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric air conditioners from TECA for superior performance and reliability.

  • Mounting Style:Through Mounted Voltage: 240 VAC
    Current: 4.6 AMPS, 0.7 AMPS Eco-Mode
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    2610 BTU/HR
    Cooling (Din 3168): 765 WATTS
    Cooling COP (at L35 L35): 0.70
    Heating (Traditional): >3765 BTU/HR
    Heating (Din 3168): >1104 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENT
    AHP-32520-I4J2-0-000
    Cool onlyTC-4FNEMA-12, IP 52
    AHP-3252HC0-I4I2-1-000
    Heat/CoolTC-7FNEMA-12, IP 52
    AHP-3252XE0-I4J2-4-000
    Cool onlyTC-4FNEMA-4/4X, IP 56
    AHP-3252XEHC0-I4I2-5-000
    Heat/CoolTC-7FNEMA-4/4X, IP 56
    AHP-3252X0-I4J2-2-000
    Cool onlyTC-4FNEMA-4X/Harsh Environment, IP 56
    AHP-3252XHC0-I4I2-3-000
    Heat/CoolTC-7FNEMA-4X/Harsh Environment, IP 56
  • Click to download:

  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 88 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-3250 Series

Weatherproof Thermoelectric Cooler

Weatherproof Thermoelectric Cooler 2250 BTU/HR (660 watts) NEMA-12/4/4X for 48 VDC or 120 VAC Input:

For thermoelectric cooling of weatherproof NEMA cabinets, the AHP-3250-Series is an advanced air conditioner. The Peltier driven AHP-3250-Series will maintain efficient cooling and heating, all while maintaining the integrity of the NEMA12/4/4X rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Climate control equipment boxes, automation controls, rail signals, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or harsh, outdoor environments.

Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliable climate control.

  • Mounting Style:Through Mounted Voltage: 120 VAC, (48 VDC)
    Current: 7 AMPS, (22 AMPS)
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    2250 BTU/HR
    Cooling (Din 3168): 660 WATTS
    Cooling COP (at L35 L35): 0.78
    Heating (Traditional): >2780 BTU/HR
    Heating (Din 3168): >815 WATTS
    Heating COP: >1.0



    Includes:
    • Power supply
    • Temperature controller
    • Power saving heat exchanger mode (ECO-Mode)
    • Mounting gasket
    • Mounting hardware
    • Power input cord
    • Circuit breaker

    Controller Features:
    TC-4F: Active cool 35 °C; ECO-Mode 25 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERENVIRONMENTCURRENT
    AMPS
    ENVIRONMENT
    AHP-32500-I4J0-0-000
    Cool onlyTC-4F1207NEMA-12, IP 52
    AHP-32500-I450-0-000
    Cool only3-32 VDC External signal1207NEMA-12, IP 52
    AHP-3250HC0-I4I0-1-000
    Heat/CoolTC-7F1207NEMA-12, IP 52
    AHP-3250HC0-I450-1-000
    Heat/Cool3-32 VDC External signal1207NEMA-12, IP 52
    AHP-3250XE0-I4J0-4-000
    Cool onlyTC-4F1207NEMA-4/4X, IP 56
    AHP-3250XE0-I450-4-000
    Cool only3-32 VDC External signal1207NEMA-4/4X, IP 56
    AHP-3250XEHC0-I4I0-5-000
    Heat/CoolTC-7F1207NEMA-4/4X, IP 56
    AHP-3250XEHC0-I450-5-000
    Heat/Cool3-32 VDC External signal1207NEMA-4/4X, IP 56
    AHP-3250X0-I4J0-2-000
    Cool onlyTC-4F1207NEMA-4X/Harsh Environment, IP 56
    AHP-3250X0-I450-2-000
    Cool only3-32 VDC External signal1207NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I4I0-3-000
    Heat/CoolTC-7F1207NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I450-3-000
    Heat/Cool3-32 VDC External signal1207NEMA-4X/Harsh Environment, IP 56
    AHP-32500-I5J6-0-000
    Cool onlyTC-4F(48)22NEMA-12, IP 52
    AHP-32500-I556-0-000
    Cool only3-32 VDC External signal(48)22NEMA-12, IP 52
    AHP-3250HC0-I5I6-1-000
    Heat/CoolTC-7F(48)22NEMA-12, IP 52
    AHP-3250HC0-I556-1-000
    Heat/Cool3-32 VDC External signal(48)22NEMA-12, IP 52
    AHP-3250XE0-I5J6-4-000
    Cool onlyTC-4F(48)22NEMA-4/4X, IP 56
    AHP-3250XE0-I556-4-000
    Cool only3-32 VDC External signal(48)22NEMA-4/4X, IP 56
    AHP-3250XEHC0-I5I6-5-000
    Heat/CoolTC-7F(48)22NEMA-4/4X, IP 56
    AHP-3250XEHC0-I556-5-000
    Heat/Cool3-32 VDC External signal(48)22NEMA-4/4X, IP 56
    AHP-3250X0-I5J6-2-000
    Cool onlyTC-4F(48)22NEMA-4X/Harsh Environment, IP 56
    AHP-3250X0-I556-2-000
    Cool only3-32 VDC External signal(48)22NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I5I6-3-000
    Heat/CoolTC-7F(48)22NEMA-4X/Harsh Environment, IP 56
    AHP-3250XHC0-I556-3-000
    Heat/Cool3-32 VDC External signal(48)22NEMA-4X/Harsh Environment, IP 56
  • Click to download:

  • Part NumberDescriptionDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-3200Drip pan, vertical cold side finsdwgpdf
    DHA-3200Drip pan, horizontal cold side finsdwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf

Features:
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 88 LBS.
• UL 60335-1 & 2-40; CSA C22.2#60335-1 & 2-40
• IEC 60335-1 & 2-40
• CENELEC EN 61000-6-2 & EN 61000-6-4


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

FHP-1501 Series

Flush Mount Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):
    950 BTU/HR
    Cooling (Din 3168): 278 WATTS
    Cooling COP (at L35 L35): 0.59 (0.64 DC version)



    Includes:
    • Integral power supply
    • Mounting gasket and hardware
    • Power input cord
    • Condensate control system

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    FHP-15017-2181-0-000
    Cool onlyTC-6F120/2408 / 5NEMA-12, IP 52
    FHP-15017-21F1-0-000
    Cool onlyTC-1F120/2408 / 5NEMA-12, IP 52
    FHP-15017-2151-0-000
    Cool only3-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    FHP-1501HC7-2131-1-000
    Heat/CoolTC-3F120/2408 / 5NEMA-12, IP 52
    FHP-1501HC7-2151-1-000
    Heat/Cool3-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    FHP-1501XE7-2181-4-000
    Cool onlyTC-6F120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XE7-21F1-4-000
    Cool onlyTC-1F120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XE7-2151-4-000
    Cool only3-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XE7-21F5-4-000
    Cool onlyTC-1F120/24018NEMA-4/4X, IP 56
    FHP-1501XEHC7-2131-5-000
    Heat/CoolTC-3F120/2408 / 5NEMA-4/4X, IP 56
    FHP-1501XEHC7-2151-5-000
    Heat/Cool3-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    FHP-15017-2185-0-000
    Cool onlyTC-6F(24)18NEMA-12, IP 52
    FHP-15017-21F5-0-000
    Cool onlyTC-1F(24)18NEMA-12, IP 52
    FHP-15017-2155-0-000
    Cool only3-32 VDC external signal(24)18NEMA-12, IP 52
    FHP-1501HC7-2135-1-000
    Heat/CoolTC-3F(24)18NEMA-12, IP 52
    FHP-1501HC7-21I5-1-000
    Heat/CoolTC-7F(24)18NEMA-12, IP 52
    FHP-1501HC7-2155-1-000
    Heat/Cool3-32 VDC external signal(24)18NEMA-12, IP 52
    FHP-1501HC7-21H5-1-000
    Heat/CoolTC-4600(24)18NEMA-12, IP 52
    FHP-1501XE7-2185-4-000
    Cool onlyTC-6F(24)18NEMA-4/4X, IP 56
    FHP-1501XE7-2155-4-000
    Cool only3-32 VDC external signal(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-2135-5-000
    Heat/CoolTC-3F(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-21I5-5-000
    Heat/CoolTC-7F(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-2155-5-000
    Heat/Cool3-32 VDC external signal(24)18NEMA-4/4X, IP 56
    FHP-1501XEHC7-21H5-5-000
    Heat/CoolTC-4600(24)18NEMA-4/4X, IP 56
    FHP-15017-2186-0-000
    Cool onlyTC-6F(48)9NEMA-12, IP 52
    FHP-15017-21F6-0-000
    Cool onlyTC-1F(48)9NEMA-12, IP 52
    FHP-15017-2156-0-000
    Cool only3-32 VDC external signal(48)9NEMA-12, IP 52
    FHP-1501HC7-2136-1-000
    Heat/CoolTC-3F(48)9NEMA-12, IP 52
    FHP-1501HC7-21I6-1-000
    Heat/CoolTC-7F(48)9NEMA-12, IP 52
    FHP-1501HC7-2156-1-000
    Heat/Cool3-32 VDC external signal(48)9NEMA-12, IP 52
    FHP-1501XE7-2186-4-000
    Cool onlyTC-6F(48)9NEMA-4/4X, IP 56
    FHP-1501XE7-2156-4-000
    Cool only3-32 VDC external signal(48)9NEMA-4/4X, IP 56
    FHP-1501XEHC7-2136-5-000
    Heat/CoolTC-3F(48)9NEMA-4/4X, IP 56
    FHP-1501XEHC7-21I6-5-000
    Heat/CoolTC-7F(48)9NEMA-4/4X, IP 56
    FHP-1501XEHC7-2156-5-000
    Heat/Cool3-32 VDC external signal(48)9NEMA-4/4X, IP 56
  • Click to download:

  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• Externally mounted (no intrusion)
• Mounts in multi-unit array for incremental capacity
• Mounts in any orientation (condensate control may not work properly in all orientations)
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Dual voltage (120/240 VAC)
• Custom finishes
• Weight 55 LBS.
• Agency approvals: ETL Intertek


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-1800 Series

Thermoelectric Air Conditioner

Cooling Industrial and Military Enclosures NEMA-4/4X, NEMA-12, Hazardous Location CID2 & CID1, Harsh and Mil Duty 1098 BTU/HR (322 watts), AC or DC Input Voltage:

For cooling and heating NEMA-12/4/4X cabinets, the AHP-1800-Series is an important and incredibly popular legacy product for climate control. The AHP-1800-Series is a Peltier air conditioner designed to protect electronics equipment boxes from overheating. Thermoelectric cooling technology reliably cools (or heats) your enclosures to protect electronic controls, electrical equipment, control cabinets, and other heat sensitive equipment.

This thermoelectric cabinet cooler accepts 24 vdc, 48 vdc, 120 VAC and 240 VAC input. It can cool while maintaining environment ratings: NEMA-12/4/4X, Harsh/Mil Duty, and Hazardous Locations CID1/CID2. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.

  • Mounting Style: Through Mounted

    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40°C up to +75°C (see data sheets)
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4/4X, Nema-4X/Harsh Environment

    Performance Rating:
    Cooling (Traditional):
    1100 BTU/HR
    Cooling (Din 3168): 322 WATTS
    Cooling COP (at L35 L35): 0.74 (DC version)
    Heating (Traditional): >1473 BTU/HR (DC version)
    Heating (Din 3168): >432 WATTS (DC version)
    Cooling COP (at L35 L35): >1 (DC version)



    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input cord

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    NEMA-12/IndoorsNEMA-4/4X OutdoorsNEMA-4X/Harsh EnvironmentHaz. Loc.
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-18000-0180-0-000
    Cool onlyTC-6F1208
    AHP-18000-0150-0-000
    Cool only3-32 VDC External signal1208
    AHP-18000-01F0-0-000
    Cool onlyTC-1F1208
    AHP-1800HC0-0130-1-000
    Heat/CoolTC-3F1208
    AHP-1800HC0-0150-1-000
    Heat/Cool3-32 VDC External signal1208
    AHP-18020-0182-0-000
    Cool onlyTC-6F2405
    AHP-18020-0152-0-000
    Cool only3-32 VDC External signal2405
    AHP-18020-01F2-0-000
    Cool onlyTC-1F2405
    AHP-1802HC0-0132-1-000
    Heat/CoolTC-3F2405
    AHP-1802HC0-0152-1-000
    Heat/Cool3-32 VDC External signal2405
    AHP-18010-0181-0-000
    Cool onlyTC-6F120/2408.0/5.0
    AHP-18010-01F1-0-000
    Cool onlyTC-1F120/2408.0/5.0
    AHP-1801HC0-0131-1-000
    Heat/CoolTC-3F120/2408.0/5.0
    AHP-18000-0195-0-000
    Cool onlyNone(24)18
    AHP-18000-0185-0-000
    Cool onlyTC-6F(24)18
    AHP-18000-01F5-0-000
    Cool onlyTC-1F(24)18
    AHP-18000-0155-0-000
    Cool only3-32 VDC External signal(24)18
    AHP-1800HC0-0135-1-000
    Heat/CoolTC-3F(24)18
    AHP-1800HC0-01I5-1-000
    Heat/CoolTC-7F(24)18
    AHP-1800HC0-0155-1-000
    Heat/Cool3-32 VDC External signal(24)18
    AHP-1800HC0-01H5-1-000
    Heat/CoolTC-4600(24)18
    AHP-18000-0196-0-000
    Cool onlyNone(48)9
    AHP-18000-0186-0-000
    Cool onlyTC-6F(48)9
    AHP-18000-01F6-0-000
    Cool onlyTC-1F(48)9
    AHP-18000-0156-0-000
    Cool only3-32 VDC External signal(48)9
    AHP-1800HC0-0136-1-000
    Heat/CoolTC-3F(48)9
    AHP-1800HC0-01I6-1-000
    Heat/CoolTC-7F(48)9
    AHP-1800HC0-0156-1-000
    Heat/Cool3-32 VDC External signal(48)9
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-1800XE0-0180-4-000
    Cool onlyTC-6F1208
    AHP-1800XE0-0150-4-000
    Cool only3-32 VDC External signal1208
    AHP-1800XE0-01F0-4-000
    Cool onlyTC-1F1208
    AHP-1800XEHC0-0130-5-000
    Heat/CoolTC-3F1208
    AHP-1800XEHC0-0150-5-000
    Heat/Cool3-32 VDC External signal1208
    AHP-1802XE0-0182-4-000
    Cool onlyTC-6F2405
    AHP-1802XE0-0152-4-000
    Cool only3-32 VDC External signal2405
    AHP-1802XE0-01F2-4-000
    Cool onlyTC-1F2405
    AHP-1802XEHC0-0132-5-000
    Heat/CoolTC-3F2405
    AHP-1802XEHC0-0152-5-000
    Heat/Cool3-32 VDC External signal2405
    AHP-1800XE0-0195-4-000
    Cool onlyNone(24)18
    AHP-1800XE0-0185-4-000
    Cool onlyTC-6F(24)18
    AHP-1800XE0-01F5-4-000
    Cool onlyTC-1F(24)18
    AHP-1800XE0-0155-4-000
    Cool only3-32 VDC External signal(24)18
    AHP-1800XEHC0-0135-5-000
    Heat/CoolTC-3F(24)18
    AHP-1800XEHC0-01I5-5-000
    Heat/CoolTC-7F(24)18
    AHP-1800XEHC0-0155-5-000
    Heat/Cool3-32 VDC External signal(24)18
    AHP-1800XEHC0-01H5-5-000
    Heat/CoolTC-4600(24)18
    AHP-1800XE0-0196-4-000
    Cool onlyNone(48)9
    AHP-1800XE0-0186-4-000
    Cool onlyTC-6F(48)9
    AHP-1800XE0-01F6-4-000
    Cool onlyTC-1F(48)9
    AHP-1800XE0-0156-4-000
    Cool only3-32 VDC External signal(48)9
    AHP-1800XEHC0-0136-5-000
    Heat/CoolTC-3F(48)9
    AHP-1800XEHC0-01I6-5-000
    Heat/CoolTC-7F(48)9
    AHP-1800XEHC0-0156-5-000
    Heat/Cool3-32 VDC External signal(48)9
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPS
    AHP-1800X0-0180-2-000
    Cool onlyTC-6F1208
    AHP-1800X0-0150-2-000
    Cool only3-32 VDC External signal1208
    AHP-1800X0-01F0-2-000
    Cool onlyTC-1F1208
    AHP-1800XHC0-0130-3-000
    Heat/CoolTC-3F1208
    AHP-1800XHC0-0150-3-000
    Heat/Cool3-32 VDC External signal1208
    AHP-1801X0-0181-2-000
    Cool onlyTC-6F120/2408.0/6.0
    AHP-1801X0-01F1-2-000
    Cool onlyTC-1F120/2408.0/6.0
    AHP-1801XHC0-0131-3-000
    Heat/CoolTC-3F120/2408.0/6.0
    AHP-1800X0-0195-2-000
    Cool onlyNone(24)18
    AHP-1800X0-0185-2-000
    Cool onlyTC-6F(24)18
    AHP-1800X0-01F5-2-000
    Cool onlyTC-1F(24)18
    AHP-1800X0-0155-2-000
    Cool only3-32 VDC External signal(24)18
    AHP-1800XHC0-0135-3-000
    Heat/CoolTC-3F(24)18
    AHP-1800XHC0-01I5-3-000
    Heat/CoolTC-7F(24)18
    AHP-1800XHC0-0155-3-000
    Heat/Cool3-32 VDC External signal(24)18
    AHP-1800XHC0-01H5-3-000
    Heat/CoolTC-4600(24)18
    AHP-1800X0-0196-2-000
    Cool onlyNone(48)9
    AHP-1800X0-0186-2-000
    Cool onlyTC-6F(48)9
    AHP-1800X0-01F6-2-000
    Cool onlyTC-1F(48)9
    AHP-1800X0-0156-2-000
    Cool only3-32 VDC External signal(48)9
    AHP-1800XHC0-0136-3-000
    Heat/CoolTC-3F(48)9
    AHP-1800XHC0-01I6-3-000
    Heat/CoolTC-7F(48)9
    AHP-1800XHC0-0156-3-000
    Heat/Cool3-32 VDC External signal(48)9
    MODEL PART NUMBER VOLTAGE    VAC 50/60 Hz CURRENT AMPS WEIGHT LBS. (KG) TEMP. CONTROL OPERATING AMBIENT TEMPERATURE RANGE C OPERATING ENCLOSURE TEMPERATURE RANGE C ENVIRONMENT
    AHP-1800EP 0-0180-0-002 120 8  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-12
    AHP-1800EP 0-01F0-0-002 120 8  46 (21) TC-1F  -40/+63   -10/+60  NEMA-12
    AHP-1800EP-1 0-0170-0-004 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1800EPHC  0-0130-1-003 120 8  46 (21) TC-3F  -40/+63   -10/+60  NEMA-12
    AHP-1800EPHC-1 0-0170-1-006 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1800XEP 0-0180-4-002 120 8  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEP 0-01F0-4-002 120 8  46 (21) TC-1F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEP-1 0-0170-4-004 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEPHC  0-0130-5-003 120 8  46 (21) TC-3F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XEPHC-1 0-0170-5-006 120 8  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801EP 0-0181-0-002 120/240 8/5  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-12
    AHP-1801EP 0-01F1-0-002 120/240 8/5  46 (21) TC-1F  -40/+63   -10/+60  NEMA-12
    AHP-1801EP-1 0-0171-0-002 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1801EPHC  0-0131-1-003 120/240 8/5  46 (21) TC-3F  -40/+63   -10/+60  NEMA-12
    AHP-1801EPHC-1 0-0171-1-006 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-12
    AHP-1801XEP 0-0181-4-002 120/240 8/5  46 (21)  TC-6F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEP 0-01F1-4-002 120/240 8/5  46 (21) TC-1F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEP-1 0-0171-4-002 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEPHC  0-0131-5-003 120/240 8/5  46 (21) TC-3F  -40/+63   -10/+60  NEMA-4/4X
    AHP-1801XEPHC-1 0-0171-5-006 120/240 8/5  46 (21) EXT*  -40/+63   -10/+60  NEMA-4/4X
    AHP-1800XP 0-0180-2-002 120 8 47 (21.4)  TC-6F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XP 0-01F0-2-002 120 8 47 (21.4) TC-1F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XP-1 0-0170-2-004 120 8 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XPHC 0-0130-3-003 120 8 47 (21.4) TC-3F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1800XPHC-1 0-0170-3-006 120 8 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP 0-0181-2-002 120/240 8/5 47 (21.4)  TC-6F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP 0-01F1-2-002 120/240 8/5 47 (21.4) TC-1F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XP-1 0-0171-2-005 120/240 8/5 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XPHC 0-0131-3-003 120/240 8/5 47 (21.4) TC-3F  -40/+75   -10/+60  NEMA-4X/Harsh
    AHP-1801XPHC-1 0-0171-3-004 120/240 8/5 47 (21.4) EXT*  -40/+75   -10/+60  NEMA-4X/Harsh



  • Click to download:

    Solid Model files:
    TypeFile NameDate ModifiedSize

    IGS
    AHP 1801 8:49 am 09/01/201624.8M

    STEP
    AHP 1801 8:49 am 09/01/201610.8M

    sldp
    AHP 1801 8:49 am 09/01/20162M

    SLDP
    AHP 1802XP 1:26 pm 08/01/201912.5M

    IGS
    Ahp 1800 8:48 am 09/01/201625.2M

    SLDP
    Ahp 1800 8:48 am 09/01/20162.3M

    STEP
    Ahp 1800 8:48 am 09/01/201610.9M

    dwg
    Ahp 1800 8:48 am 09/01/20162M

    pdf
    Ahp 1800 8:48 am 09/01/20161.1M

    dwg
    Ahp 1801 8:48 am 09/01/20162M

    pdf
    Ahp 1801 8:49 am 09/01/20161.1M
    Product Manuals:
    MA 1800 (113.9k)
    PIP 0-0150-1-000 ECN004C (630.1k)
    PIP 0-01F0-0-000 (2M)
    PIP 0-01F0-2-000 (2.1M)
    PIP 0-01F0-2-002 (1.2M)
    PIP 0-01F1-0-002 (1.3M)
    PIP 0-01F1-2-000 (1.6M)
    PIP 0-01F1-2-002 (1.2M)
    PIP 0-01F5-4-000 (731.1k)
    PIP 0-01H5-1-000 (860.6k)
    PIP 0-013C 5-000 (622.2k)
    PIP 0-0130-1-000 ECN004D (745.4k)
    PIP 0-0130-1-003 (1.2M)
    PIP 0-0130-3-000 ECN004C (769.5k)
    PIP 0-0130-3-003 ECN000A (1.2M)
    PIP 0-0130-3-003 ECN004D (1.3M)
    PIP 0-0130-5-000 ECN004D (880.5k)
    PIP 0-0130-5-003 (1.3M)
    PIP 0-0131-1-000 ECN007D (683.8k)
    PIP 0-0131-1-003 (1.3M)
    PIP 0-0131-3-000 ECN007C (696.3k)
    PIP 0-0131-3-003 ECN006D (3.3M)
    PIP 0-0132-1-000 ECN004E (815k)
    PIP 0-0132-5-000 ECN005E (972.2k)
    PIP 0-0135-1-000 (1.2M)
    PIP 0-0135-3-000 (1.2M)
    PIP 0-0135-5-000 (1.2M)
    PIP 0-0150-0-000 ECN004C (733.6k)
    PIP 0-0150-1-000 ECN004C (741.6k)
    PIP 0-0150-2-000 ECN004B (724.5k)
    PIP 0-0150-3-000 ECN004B (732.5k)
    PIP 0-0150-4-000 ECN004C (841.5k)
    PIP 0-0150-5-000 ECN004C (864.2k)
    PIP 0-0152-0-000 ECN004C (781.5k)
    PIP 0-0152-1-000 ECN004C (787.1k)
    PIP 0-0152-4-000 ECN005C (889.2k)
    PIP 0-0152-5-000 ECN005C (900.6k)
    PIP 0-0155-0-000 (1.2M)
    PIP 0-0155-1-000 (1.2M)
    PIP 0-0155-2-000 (1.2M)
    PIP 0-0155-3-000 (1.2M)
    PIP 0-0155-4-000 (1.2M)
    PIP 0-0155-5-000 (1.2M)
    PIP 0-0170-0-004 (1.2M)
    PIP 0-0170-1-006 (981.1k)
    PIP 0-0170-2-004 ECN004 (815.4k)
    PIP 0-0170-3-006 ECN004 (1.1M)
    PIP 0-0171-2-005 ECN004 (1.4M)
    PIP 0-0171-3-004 ECN008C (3.4M)
    PIP 0-0171-3-007 ECN002 (1.4M)
    PIP 0-0172-3-006 (1002k)
    PIP 0-0172-3-010 (1.5M)
    PIP 0-018C 4-000 (822.8k)
    PIP 0-0180-0-000 ECN004C (2.7M)
    PIP 0-0180-0-002 (985.1k)
    PIP 0-0180-2-000 ECN002B (1.2M)
    PIP 0-0180-2-002 ECN004C (1.1M)
    PIP 0-0180-4-000 ECN004C (911.8k)
    PIP 0-0181-0-000 ECN006D (655.3k)
    PIP 0-0181-0-001 (1.6M)
    PIP 0-0181-0-002 (1.6M)
    PIP 0-0181-2-000 ECN006C (685.3k)
    PIP 0-0181-2-002 ECN006D (3.3M)
    PIP 0-0181-2-008 ECN001A (980.9k)
    PIP 0-0182-0-000 ECN002B (1.6M)
    PIP 0-0182-2-007 (1.6M)
    PIP 0-0182-4-000 ECN005C (934.5k)
    PIP 0-0185-0-000 (1.3M)
    PIP 0-0185-2-000 (1.3M)
    PIP 0-0185-4-000 (1.3M)
    PIP 0-0195-0-000 (1.2M)
  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-1800Drip pan, vertical cold side finsAHP-1800, AHP-1801, AHP-1802dwgpdf
    DHA-1800Drip pan, horizontal cold side finsAHP-1800, AHP-1801, AHP-1802dwgpdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    MA-1800Mounting bracketAHP-1800, AHP-1801, AHP-1802pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• Compact, (18” L X 12.35” W X 9.69”D)
• Excels in high ambient temperatures
• Environmentally Safe
• Dual voltage versions available, consult factory.
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments,
shock and vibration
• Mounts and operates in any orientation
• Easy to use Pivot Clean feature
• Weight 52 LBS.
• Agency approvals: ETL Intertek


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-1501 Series

Thermoelectric Air Conditioner

  • Mounting Style: Through Mounted
    Voltage: 120/240 VAC, 24 VDC, 48 VDC
    Current: 8/5 AMPS, 2.5 AMPS, 18 AMPS, 9 AMPS
    Operating Ambient: -40/+70 °C
    Operating Enclosure: -10/+60 °C
    Environments: Nema-12, Nema-4

    Performance Rating:
    Cooling (Traditional):
    1000 BTU/HR
    Cooling (Din 3168): 300 WATTS
    Cooling COP (at L35 L35): 0.70 (DC version)



    Includes:
    • Temperature controller
    • Mounting gasket
    • Mounting hardware
    • Power input leads

    Controller Features:
    TC-1F: Active cool 35 °C
    TC-6F: Active cool 25 °C or 35 °C
    TC-3F: Active cool 35 °C; Active heat 15 °C
    TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C

  • Click on the part numbers to request a quick quote:
    MODEL NUMBERPART NUMBERNOTESCONTROLLERVOLTAGE VAC (VDC)CURRENT AMPSENVIRONMENT
    AHP-15010-2181-0-000
    Cool onlyTC-6F120/2408 / 5NEMA-12, IP 52
    AHP-15010-21F1-0-000
    Cool onlyTC-1F120/2408 / 5NEMA-12, IP 52
    AHP-15010-2151-0-000
    Cool only5-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    AHP-1501HC0-2131-1-000
    Heat/CoolTC-3F120/2408 / 5NEMA-12, IP 52
    AHP-1501HC0-2151-1-000
    Heat/Cool5-32 VDC external signal120/2408 / 5NEMA-12, IP 52
    AHP-1501XE0-2181-4-000
    Cool onlyTC-6F120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XE0-21F1-4-000
    Cool onlyTC-1F120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XE0-2151-4-000
    Cool only5-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XE0-21F5-4-000
    Cool onlyTC-1F120/24018NEMA-4/4X, IP 56
    AHP-1501XEHC0-2131-5-000
    Heat/CoolTC-3F120/2408 / 5NEMA-4/4X, IP 56
    AHP-1501XEHC0-2151-5-000
    Heat/Cool5-32 VDC external signal120/2408 / 5NEMA-4/4X, IP 56
    AHP-15010-2185-0-000
    Cool onlyTC-6F(24)18NEMA-12, IP 52
    AHP-15010-21F5-0-000
    Cool onlyTC-1F(24)18NEMA-12, IP 52
    AHP-15010-2155-0-000
    Cool only5-32 VDC external signal(24)18NEMA-12, IP 52
    AHP-1501HC0-2135-1-000
    Heat/CoolTC-3F(24)18NEMA-12, IP 52
    AHP-1501HC0-21I5-1-000
    Heat/CoolTC-7F(24)18NEMA-12, IP 52
    AHP-1501HC0-2155-1-000
    Heat/Cool5-32 VDC external signal(24)18NEMA-12, IP 52
    AHP-1501HC0-21H5-1-000
    Heat/CoolTC-4600(24)18NEMA-12, IP 52
    AHP-1501XE0-2185-4-000
    Cool onlyTC-6F(24)18NEMA-4/4X, IP 56
    AHP-1501XE0-2155-4-000
    Cool only5-32 VDC external signal(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-2135-5-000
    Heat/CoolTC-3F(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-21I5-5-000
    Heat/CoolTC-7F(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-2155-5-000
    Heat/Cool5-32 VDC external signal(24)18NEMA-4/4X, IP 56
    AHP-1501XEHC0-21H5-5-000
    Heat/CoolTC-4600(24)18NEMA-4/4X, IP 56
    AHP-15010-2186-0-000
    Cool onlyTC-6F(48)9NEMA-12, IP 52
    AHP-15010-21F6-0-000
    Cool onlyTC-1F(48)9NEMA-12, IP 52
    AHP-15010-2156-0-000
    Cool only5-32 VDC external signal(48)9NEMA-12, IP 52
    AHP-1501HC0-2136-1-000
    Heat/CoolTC-3F(48)9NEMA-12, IP 52
    AHP-1501HC0-21I6-1-000
    Heat/CoolTC-7F(48)9NEMA-12, IP 52
    AHP-1501HC0-2156-1-000
    Heat/Cool5-32 VDC external signal(48)9NEMA-12, IP 52
    AHP-1501XE0-2186-4-000
    Cool onlyTC-6F(48)9NEMA-4/4X, IP 56
    AHP-1501XE0-2156-4-000
    Cool only5-32 VDC external signal(48)9NEMA-4/4X, IP 56
    AHP-1501XEHC0-2136-5-000
    Heat/CoolTC-3F(48)9NEMA-4/4X, IP 56
    AHP-1501XEHC0-21I6-5-000
    Heat/CoolTC-7F(48)9NEMA-4/4X, IP 56
    AHP-1501XEHC0-2156-5-000
    Heat/Cool5-32 VDC external signal(48)9NEMA-4/4X, IP 56
  • Click to download:

  • Part NumberDescriptionFor use with air conditioner seriesDrawingData Sheet
    EH-2001200 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-2002200 Watts Enclosure heater
    240 VAC
    dwgpdf
    EH-4001400 Watts Enclosure heater
    120 VAC
    dwgpdf
    EH-4002400 Watts Enclosure heater
    240 VAC
    dwgpdf
    DVA-1501Drip pan, vertical cold side finsAHP-1501pdf
    DHA-1501Drip pan, horizontal cold side finsAHP-1501pdf
    D-100Condensate discharge, plasticpdf
    D-200Condensate discharge, ST.ST.pdf
    SP500-24Switching power supply
    500 Watts, 24 VDC
    pdf
    SP800-24Switching power supply
    800 Watts, 24 VDC
    pdf

Features:
• Compact (only 10” X 5.84” X 7.75”)
• Mounts in multi-unit array for incremental capacity
• Dual voltage 120/240 VAC
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance-free operation
• Environmentally friendly and safe
• No compressor, fluorocarbons or filters
• Stainless steel exterior housing
• Operating ambient temperature range -40/+65 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 52 LBS.
• Agency approvals: ETL Intertek


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

AHP-1200 Series

Thermoelectric Air Conditioner

Climate Control for NEMA-12, NEMA-4/4X, Harsh/Mil Duty, CID2 and CID1 530 BTU/HR (154 watts), For AC or DC Input Voltage:

For cooling NEMA cabinets, the AHP-1200-Series is an important and incredibly popular legacy product. The AHP-1200-Series is a thermoelectric air conditioner designed to protect electronics equipment boxes from overheating. Utilizing reliable Peltier cooling (and heating when needed!) technology, AHP-1200 coolers protect electronic controls, electrical equipment, equipment cabinets, railway controls, alarms, crane controls, automation equipment controls, and other heat sensitive equipment.

Versatile choices allow for use in 24 vdc, 48 vdc, 120 VAC and 240 VAC areas. Serving every environment rating including NEMA-12/4/4X, Harsh/Mil Duty, and Hazardous Locations. Protect against equipment box failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliable climate control.

Features:
• Compact, (only 15”L X 7.35”W X 8.17”D)
• Weighs only 21 lbs. (9.5 kg)
• Excels in high ambient temperatures
• Environmentally safe
• Dual voltage versions available
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments, shock and vibration
• Mounts and operates in any orientation
• Easy to use Pivot Clean feature
• Agency approvals: ETL Intertek


Resources:

Air conditioner Notes

Applications

Accessories

Manuals

Sizing Software

Contact Us

Quarterly eNewsletter
